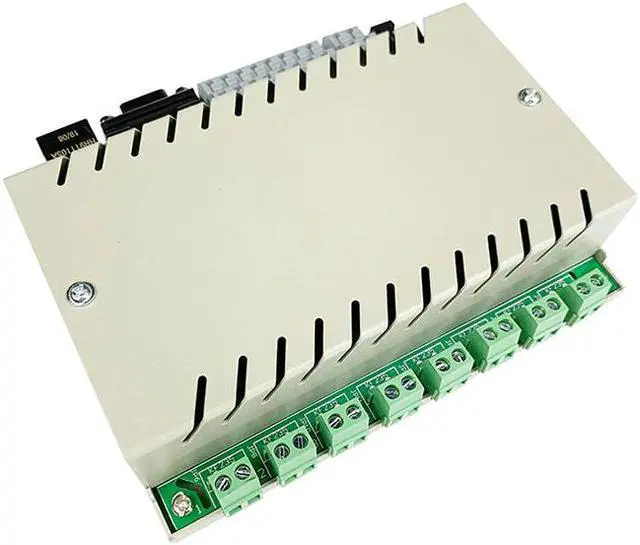

8 channel Network Ethernet TCP IP Relay Control Switch Module Smart Home Automation Remote Controller Security Alarm Domotica

The new version of hardware relay output uses green terminals.

8 channel relay controller (Ethernet) Users manual

Products Parameter

Dimension      148x117x40mm

Working Voltage DC 12V

MaterialFire resistance ABSmetal shell

Working Temp -20~70

Working Humidity 20%RH ~ 80%RH

Output Loadeach 250V/10A

Communication modeEthernet/RS232

Input port qty8 ports

Output port qty8 ports

Output power12V/9V

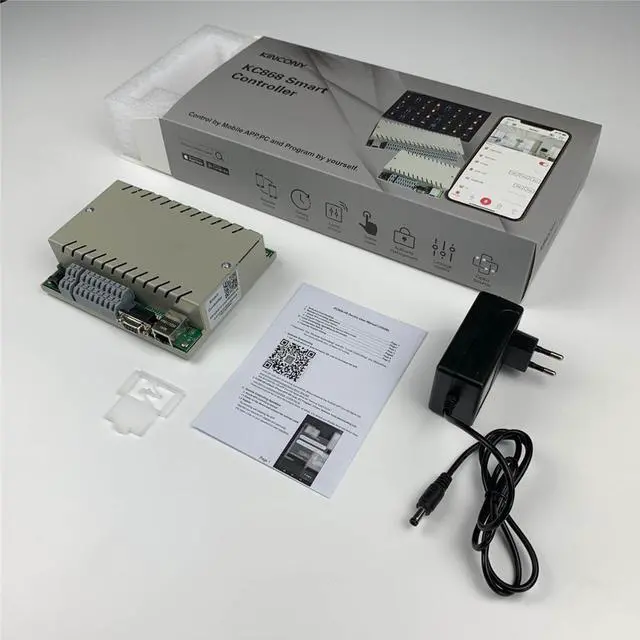

Brand New Packaging:

Products Function

1. Supporting RS232 and Ethernet communication mode

2. Remote controlling the opening/closing of 8 routes or 8 groups circuits.

3. Supporting 8 ports input of sensor switching value.

4. Supporting secondary development

5. Supporting APP remote controlling

6. Widely used for lights controlling of kinds of occasion (like Indoor, theater or Amusement Park etc) and switching of mechanical equipments, and management of the computers in the cyber bar and so on.

Products Features:

1. Highly reliable connection column, independent and isolated route,Make sure the products more stable and safe.

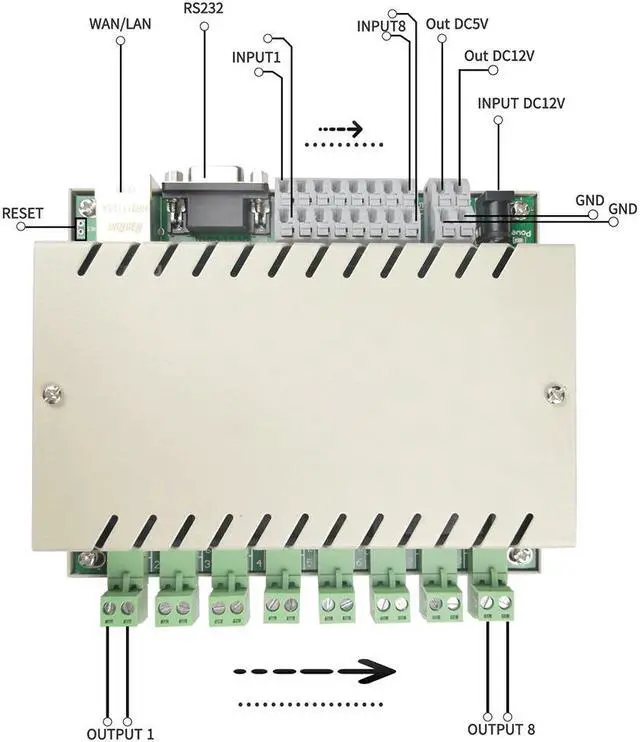

2. Relay output pole connection method as shown below, each color represents one route, each route is equal an independent switch.

3. Adopting ARM core chip as the core processor, industrial stability and good anti-jamming.

4. Professional shell design, fixed through the positioning hole, or fixed on the guide rail directly.

5. Perfect power input filter, ensuring adequate capacitance.

6. Adopting advanced and stable communication protocol, providing reliable and smooth communication procedures.

Products Usage Instructions

Function/Model
