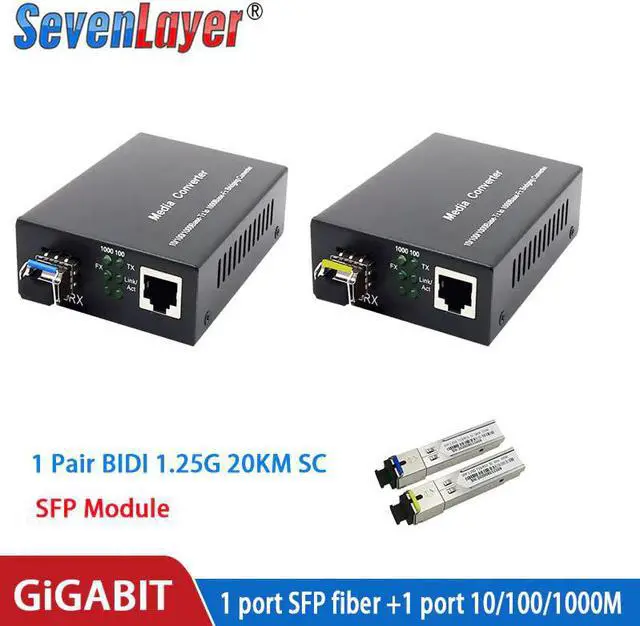

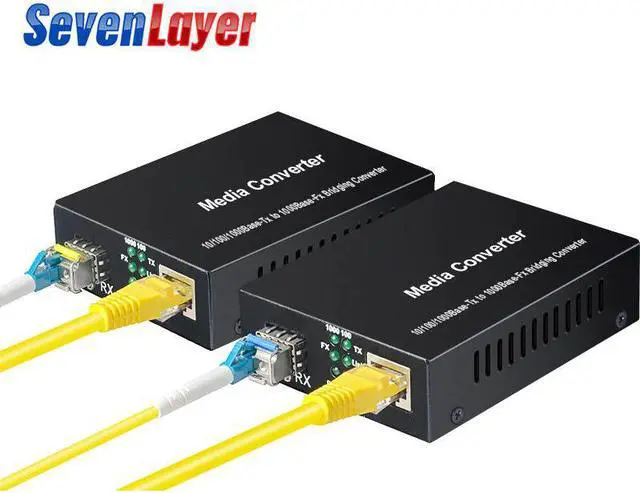

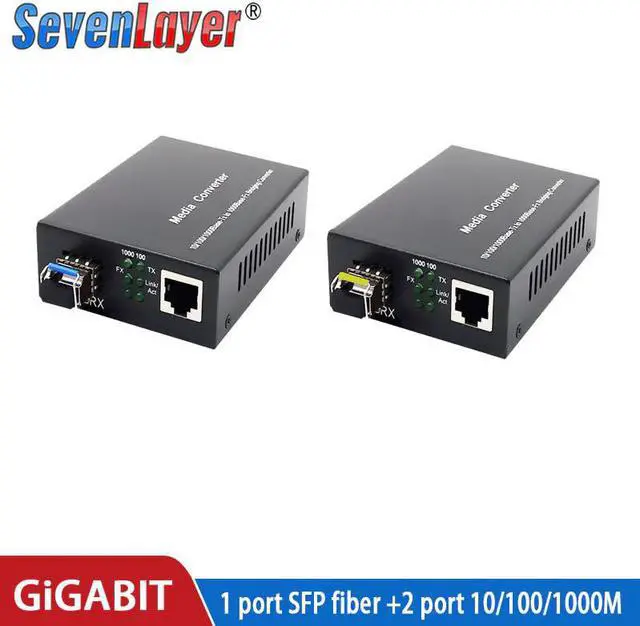

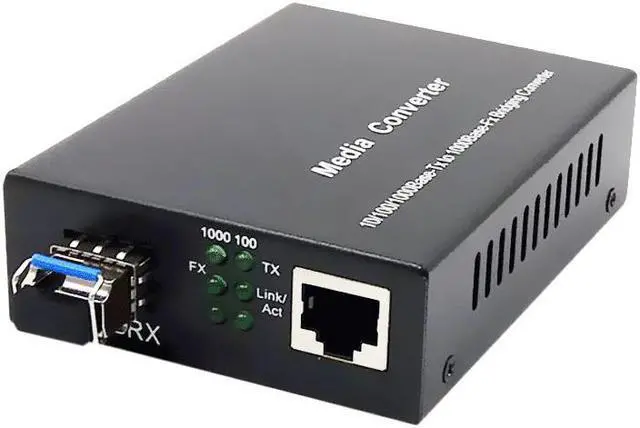

Media Converter SFP Transceiver Module 20KM 1000Mbps Fast Ethernet RJ45 to Fiber Optic switch 2 port LC Mode 2PCS

SFP Media converter

General Description

950SFP series converter is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel

Features

100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter

Standard : IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab

Interface: 1 x RJ-45 connector / 1 x SFP Slot

Plug-and-Play installation

Support Jumbo Frame (64-9216 Byte)

Conversion between different transmission speeds and media types

Standalone type or card type ,Can be installed into 2U 14/16Slots chassis

Auto-negotiating Ethernet port (Half/Full Duplex)

Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)

Easy Installation, Easy Trouble shooting

Dimension: 229x122x50mm for packing, 94x70.6x26.5mm for device

Application

Extend your Ethernet connection up to 0~120km away using fiber optics.

Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones.

Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus).

Intelligent transportation supervisory system(ITS) and safe cit
