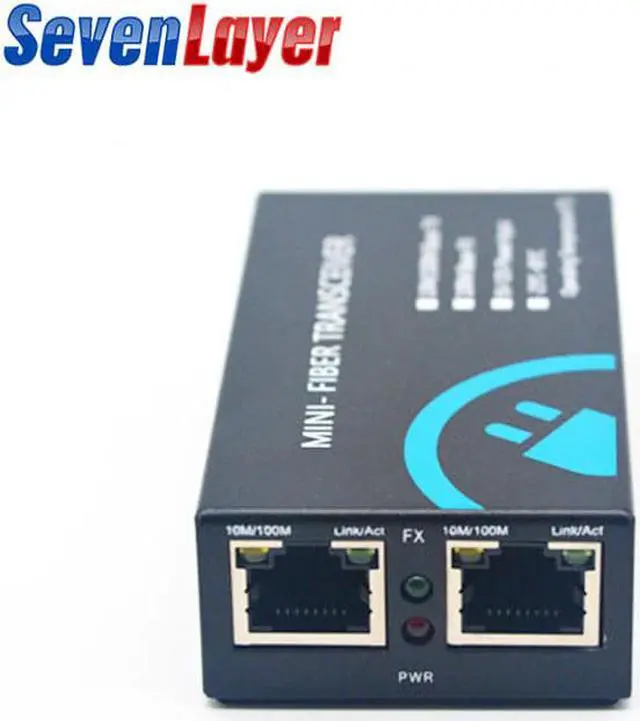

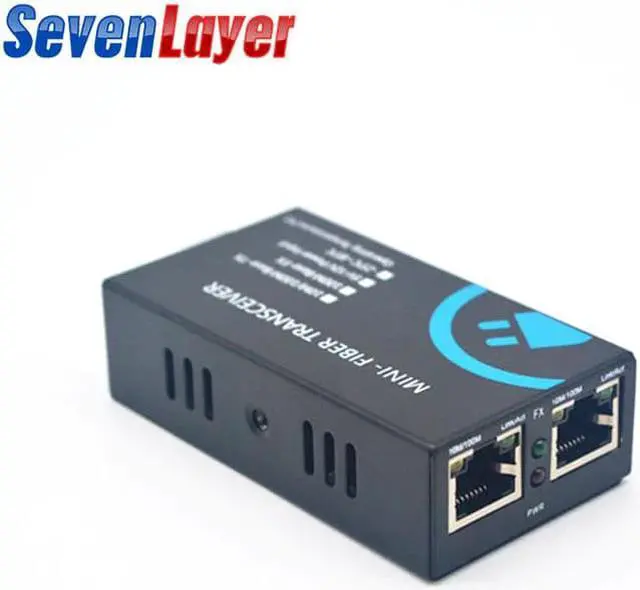

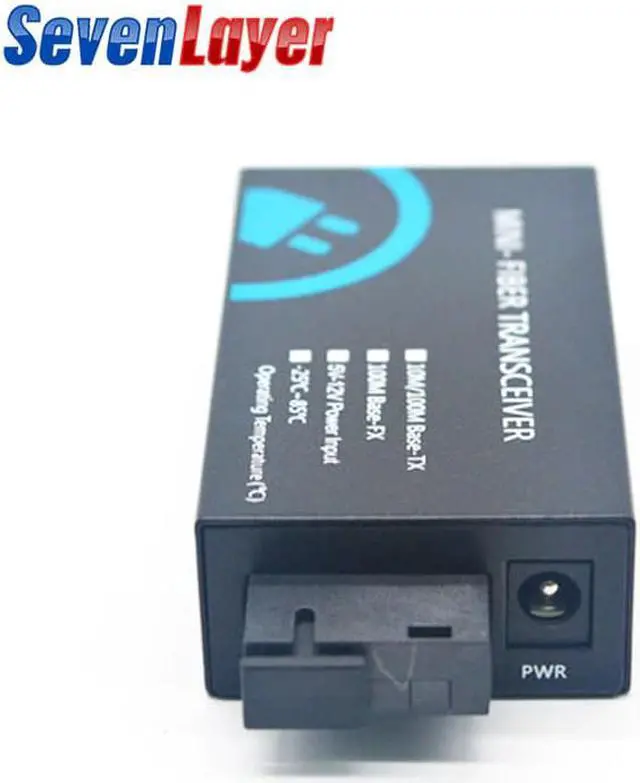

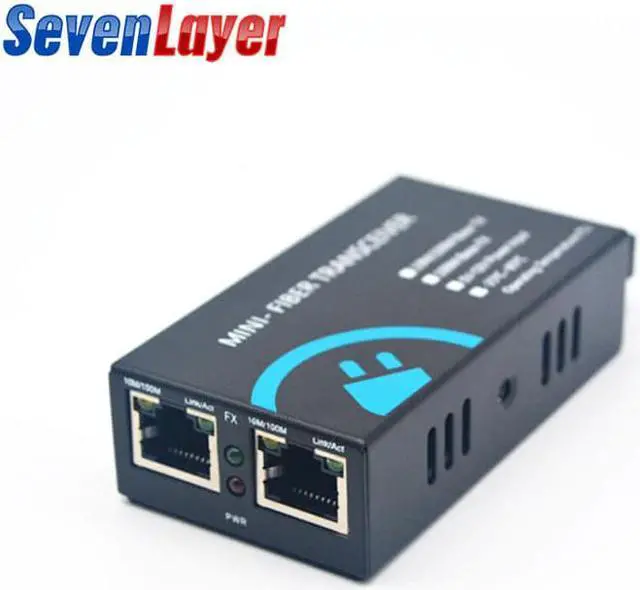

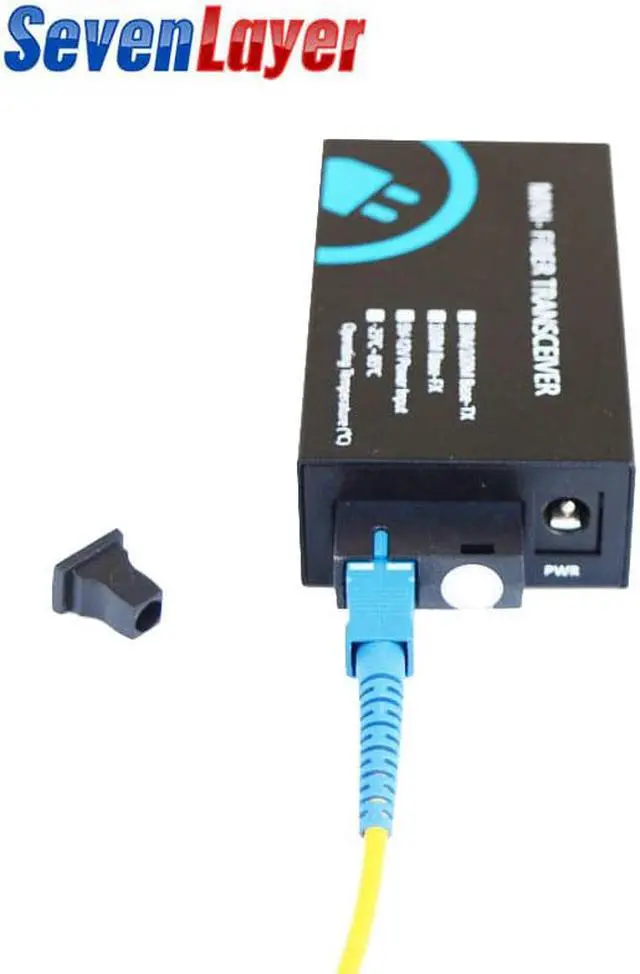

Converter 2 RJ45 1 SC 10/100M Fast Ethernet Switch Converter 20KM Ethernet mini Fiber Optical Single Mode fiber Port

please note:

Default with 1pcs 1310nm A side Fiber module , 1550nm B Side  can be provided as request.

Fast Ethernet Switch 10/100Base-Tx to 100Base-FX Fiber Switch

The Fast Ethernet Switch  is an Ethernet Fiber Switch which is specially designed for network monitoring. It

has 2*10/100Mbps Ethernet ports and 1*155Mbps fiber ports. It adopts RTL8305NB chips to ensure

low power consumption and high stability. It extends the transmission distance of a network from

100m to 120km via copper cables. It can extend the transmission distance; there are also many other

advantages such as isolation protection, good data security, working stability and easy maintenance.

Main Features:

1.Support the switch between 10/100Base-TX and 100Base-FX

2.1*155Mbps full-duplex fiber ports and 2*100M Ethernet ports with auto-negotiation function

3.Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

4.Each port has the complete LED Indicator light

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

6.Support IEEE802.1d Spanning Tree

7.Support high performance QoS function on each port

8.Support 5V voltage input

9.Support IEEE 802.3x flow control and back pressure control

10.Require no configuration and will instantly operate as soon as you power it up

11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications:

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

Ethernet Port
