16 Gang Network Ethernet TCP IP Relay Control Diy Switch Module Smart Home Automation Remote Controller Security Alarm Domotica

16 channel relay controller (Ethernet) Users manual

Products Parameter

Dimension      215x117x40mm

Working Voltage DC 12V

MaterialFire resistance ABSmetal shell

Working Temp -20~70

Working Humidity 20%RH ~ 80%RH

Output Loadeach 250V/10A

Communication modeEthernet/RS232

Input port qty8 ports

Output port qty16 ports

The following information introduces KC868-H8 controller. KC868-H4, KC868-H2, KC868-H8, ,KC868-H16,KC868-H32 controller are KC868 series of 's products, so phone APP and PC software are compatible. There are only different input and output channel.

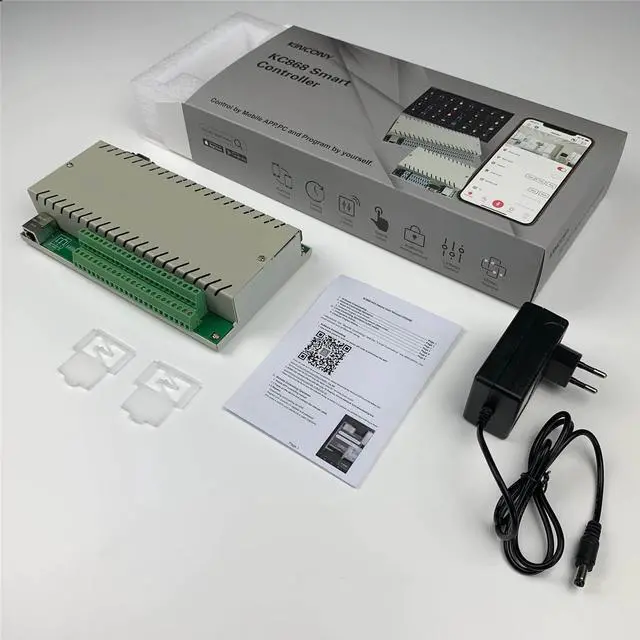

Brand New Packaging:

Products Function

1. Supporting RS232 and Ethernet communication mode

2. Remote controlling the opening/closing of 16 routes or 16 groups circuits.

3. Supporting 8 ports input of sensor switching value.

4. Supporting secondary development

5. Supporting APP remote controlling

6. Widely used for lights controlling of kinds of occasion (like Indoor, theater or Amusement Park etc) and switching of mechanical equipments, and management of the computers in the cyber bar and so on.

Products Features:

1. Highly reliable connection column, independent and isolated route,Make sure the products more stable and safe.

2. each route is equal an independent switch.

3. Adopting ARM core chip as the core processor, industrial stability and good anti-jamming.

4. Professional shell design, fixed through the positioning hole, or fixed on the guide rail directly.

5. Perfect power input filter, ensuring adequate capacitance.

8. Providing 1 year technical maintenance and free new edition host computer software
