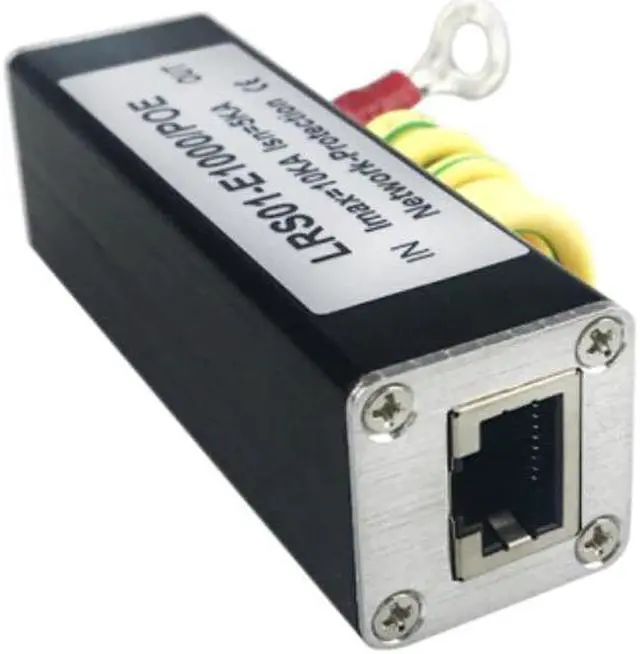

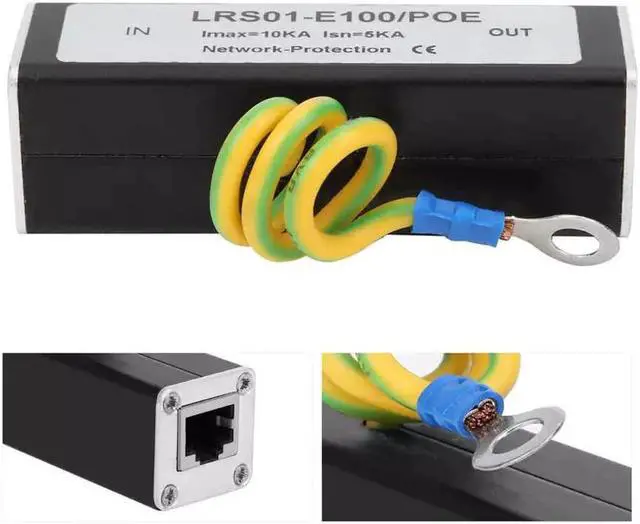

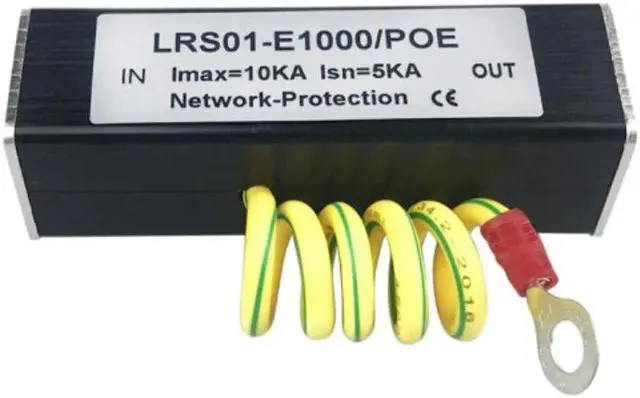

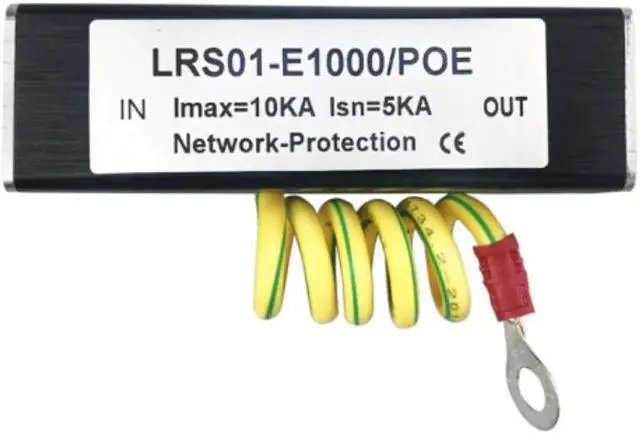

100/1000M POE IP Camera Network POE Switch RJ45 & POE Surge Protector Protection Device Lightning Arrester SPD 1000M Ethernet

100/1000M RJ45 Ethernet Cat5e/6 surge protector with PoE support. It simply installs in-line on an RJ45 Cat5e/6 cable. The arrestor has two RJ45 female jacks, so the in-line installation is a very easy and straight forward. It protects any Ethernet devices like switches, routers, laptops/PCs,IP Camera etc from damaging surges caused by lightning or static electricity. Moreover, because of PoE feature it ALLOWS PoE enabled devices to remain powered while still protected against damaging lightning strikes or voltage spikes.

IMPORTANT

Two things are crucial and should NOT be missed when using the Ethernet surge protector:

correct positioning: IN jack on the unprotected part of cable and OUT jack on the protected side of cable.

Reversed installation will still allow network traffic and operation but there will be no lightning/surge protection at all!

proper grounding: please note the yellow/green ground wire. This wire must be connected to proper electrical ground in the building.

Ask a qualified electrician about such grounding or search the Internet for information.

Without proper grounding the surge protector will be unable to drain away the excess voltage and will be ineffective!

Features of POE1000M surge protector

Fast energy absorption on over-voltage

Low resistance and minimal capacitance - minimal influence on data link

Easy in-line installation: two RJ45 female connectors

Package Content:

1 *POE Network IP LAN Lightning Surge Protection Device.
