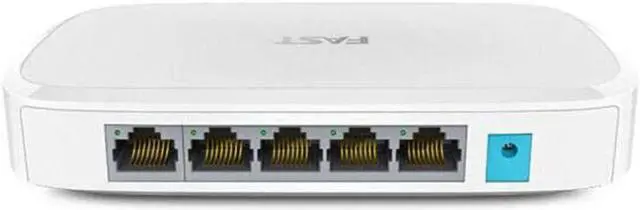

FSG105M 5 Port PoE Switch High Speed RJ45 1000M Gigabit Ethernet Switch Fast Ethernet Network Switcher Hub Splitter

FSG105M 5 Port High Speed RJ45 1000M Gigabit Ethernet Switch Fast Ethernet Network Switcher Hub Splitter

Feature:

1. It can automatically detect the opening and closing of the connecting equipment. When the connecting equipment is closed, the switch will automatically switch the corresponding port to standby mode, which is energy-saving and environmental protection.

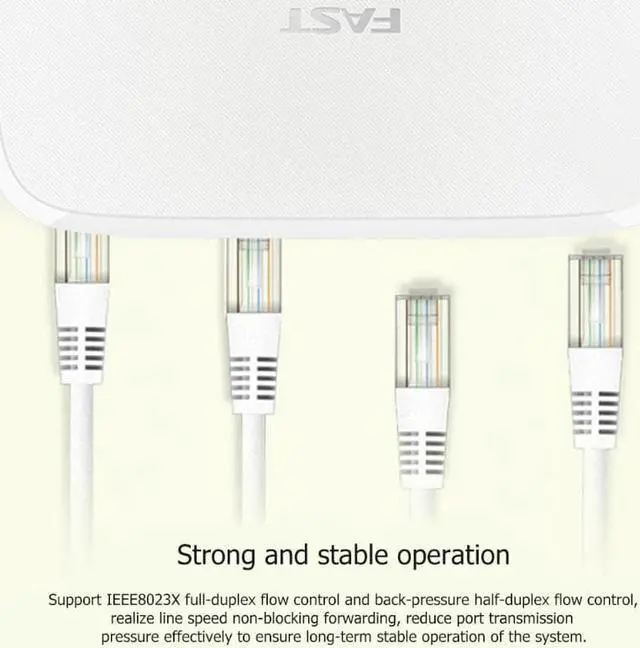

2. It supports full-duplex and back-pressure half-duplex flow control of IEEE 802.3x, realizes line speed non-blocking forwarding, alleviates port transmission pressure, and effectively guarantees long-term stable operation of the system.

3. The fuselage is designed with a plastic shell desktop structure. The port is 10/100/1000M self-adapting. It supports MDI/MDIX auto-turning without any configuration and can be plugged in.

4. Support for MAC address self-learning, data transmission and forwarding more flexible and reliable, while providing dynamic LED indicator, visual working status, fault detection more convenient and fast.

Specifications:

Standards and protocols supported: IEEE 802.3, 802.3u, 802.3ab, 802.3x

Ports: 5x10/100/1000M adaptive RJ45 ports (Auto MDI/MDIX)

Network media:

10Base-T: UTP of CAT3 or above

100Base-TX: CAT5 UTP

1000Base-T: CAT5+ UTP

Filtering and forwarding rates:

10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

Backplane Bandwidth: 10Gbps

For MAC Address Table: 2K

LED instructions:

Each port: 10/100/1000Mbps (LINK/ACT)

Others: Power (Power)

Operating temperature: 0 to 40

Storage Temperature: - 40  to 70

Working humidity: 10% to 90% RH does not condensate

Material: Plastics
