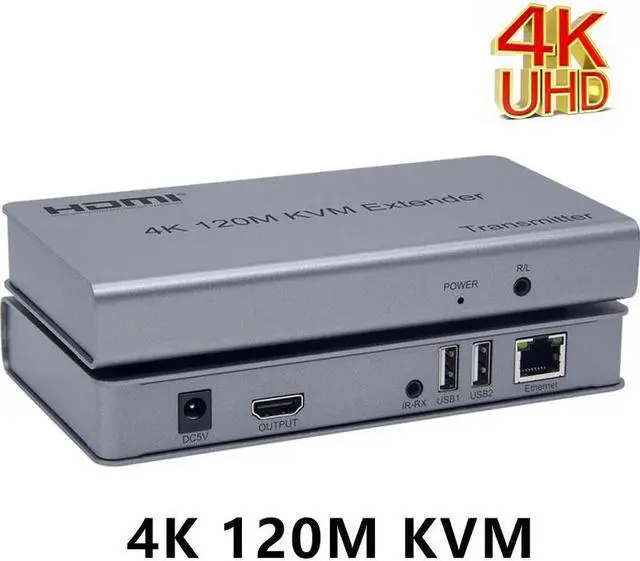

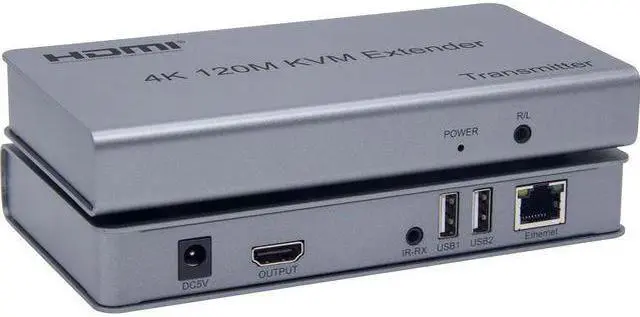

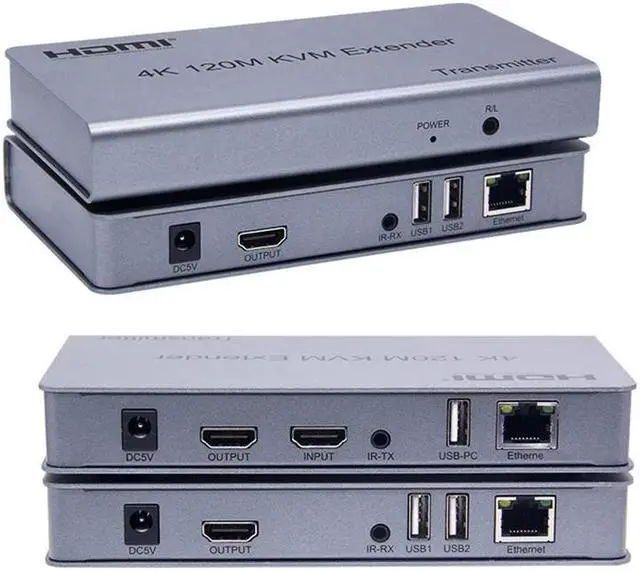

4K 120M KVM Extender By RJ45 Ethernet Cat5e Cat6 Cable Converter TX RX Support USB Mouse Keyboard Extension Touch Screen

Product Option:Color:TX and RX.Contact with us if you need other option.

HD 4K 120M KVM -compatible Extender TX RX 4K 1080P 120M By Ethernet RJ45 CAT5e/6 Cable Local Loop-out With IR Remote

Features

Support 1.4/HDCP1.4;

Support local loop-out ;

Support 120m long distance transmission.

Low power consumption, low temperature and high safety;

Both the TX and RX support 3.5MM left and right audio output;

Support IR control;

Support USB mouse and keyboard extension;

Specifications:

Length of CAT5e/CAT6 cable between Rx and TX ......................................... 120 meters

Input .......................................................... 4k/1080p/720p/576p/576i/480p/480i

Output .......................................................... 4k/1080p/720p/576p/576i/480p/480i

Max bandwidth ...................................................................................... 340MHz

Max baud rate ..................................................................................... 3x3.4Gbps

Input video signal .......................................................................... 0.5~1.5Volts p-p

Output DDC signal .......................................................................... 5Volts p-p (TTL)

Input cable distance ..................................... 10m AWG26 standard cable

Output cable distance ....................................... 10m AWG26 standard cable

TX Max working current ............................................................................. 350mA

RX Max working current ............................................................................. 200mA

Output: DC5V/1A

The Package includes:
