4K@60 2 In 2 Out HDMI 2.0 Switcher Splitter 2x 2 HDMI 1x Toslink 1x 3.5mm Jack Switch 3D HDR HDCP2.2 18Gbps Bandwidth with IR Remote Control

4K@60 2 In 2 Out HDMI 2.0 Switcher SplitterKEY_TAB 2x 2 HDMI 1x Toslink 1x 3.5mm Jack Switch 3D HDR HDCP2.2 18Gbps Bandwidth with IR Remote Control



Introduction

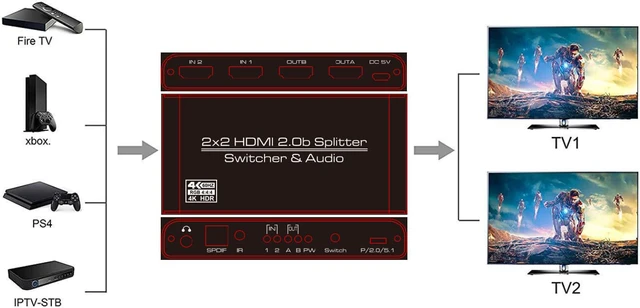

HDMI2x2 supports 4K60hz, which can convert the HDMI signal from any of the two signal sources to and display it on any of its two connected HDMI displays at the same time. It supports 3D, 18Gbps bandwidth, 24-bit deep color, high-definition lossless audio And other functions defined by the HDMI specification. Through the buttons on the panel, IR remote control, you can easily operate the management of the source receiver program.



Features

1. Comply with HDMI 2.0b; HDCP2.2; HDR.

2. Support up to 4k2k@60Hz video format and 24bit RGB 4:4:4, up to 4k2k@60Hz 3D frame sequential video format.

3. Audio support: HDMI 2.2b compatible audio interface Dolby TrueHD DTS-HD main audio 5.1CH.



Specifications

Bandwidth 18Gbps

Input port 2 x HDMI female.

Output port 2 x HDMI female; 1x Toslink; 1 earphone

HDMI audio output PCM2, 5.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD

Power supply 5V/1A DC (US/EU standards, CE/FCC/UL certification)

ESD protection human body model: ±8kV (air gap discharge) ±4kV (contact discharge)

Dimensions (mm) 112 (D) x55 (W) x 18 (H)

Weight (g) 120 g

Power (maximum) 5W

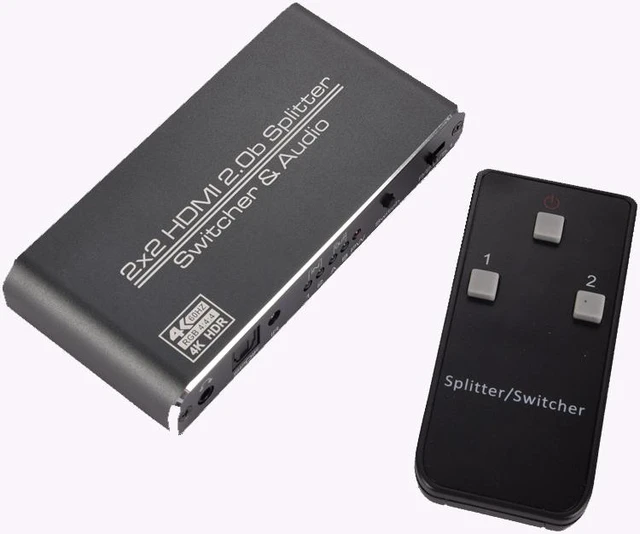

Packaging

1.HDMI 2x2 host ---------------------------------------------1 Pcs

2.USB power cord--------------------------------------------- 1 Pcs

3. Remote control---------------------------------------------- 1 Pcs

4. Operation manual---------------------------------------------- ----1 Pcs

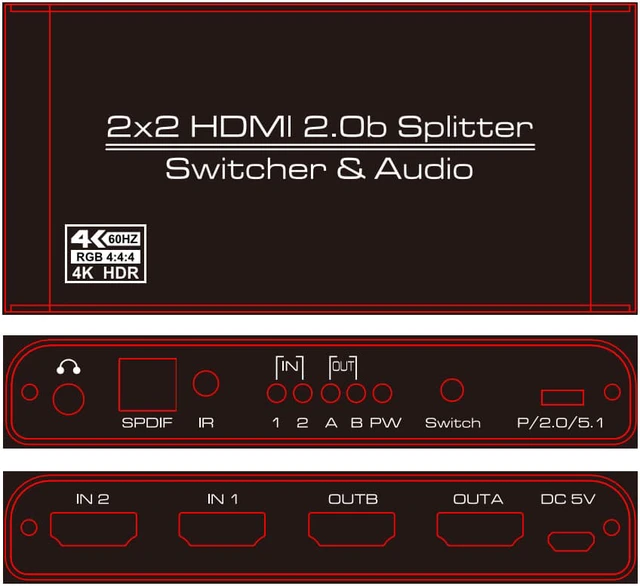

Operation control and function

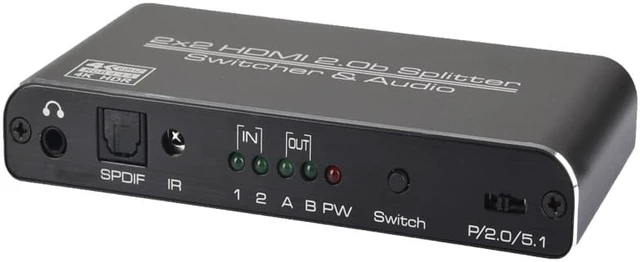

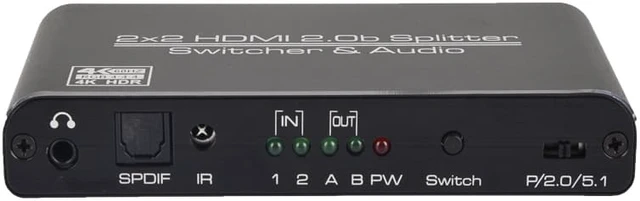

Front panel (from left to right)

SPDIF: Spdif audio output.

IR: Receive remote control signal.

IN LED (1-2): When the output is selected to the corresponding input, these green LEDs light up.

IN LED (A-B): When the signal comes from port A or B, this green LED will light up.

PW LED: This red LED lights up when the device is connected to the power supply.

Switch: Press this button to select the input source.

P / 2.0 / 5.1: Different audio output modes.

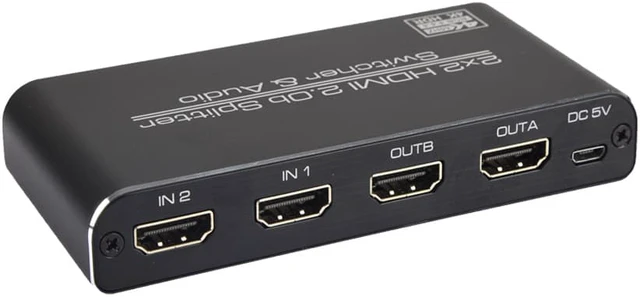

Rear panel (from left to right)

IN2 \ IN1: HDMI input port.

OUTB \ OUTA: HDMI output port.

DC 5V: Plug the 5V DC power supply into the device.
