4*2 HDMI Switch Splitter 4 in 2 out 4K@60HZ HDMI 1.4 Matrix 4X2 Dual Audio Output Optical SPDIF 3.5mm L/R 3D Support EDID with Remote Switch Controller
- Support HDMI1.4b version
- Support ARC function
- Support 3D video format
- Support the highest resolution up to 4K 60HZ
- TMDS clock is 320Mhz when supporting the highest rate of 3.2G
- Support 8/10/12 bit deep color
- When the resolution is 1080P and below, when the standard AWG26 cable is supported, the input transmission distance is up to 15 meters, and the output transmission distance is up to 25 meters.
- When the resolution is 4K, when the standard AWG26 cable is supported, the input transmission distance is up to 12 meters, and the output transmission distance is up to 15 meters.

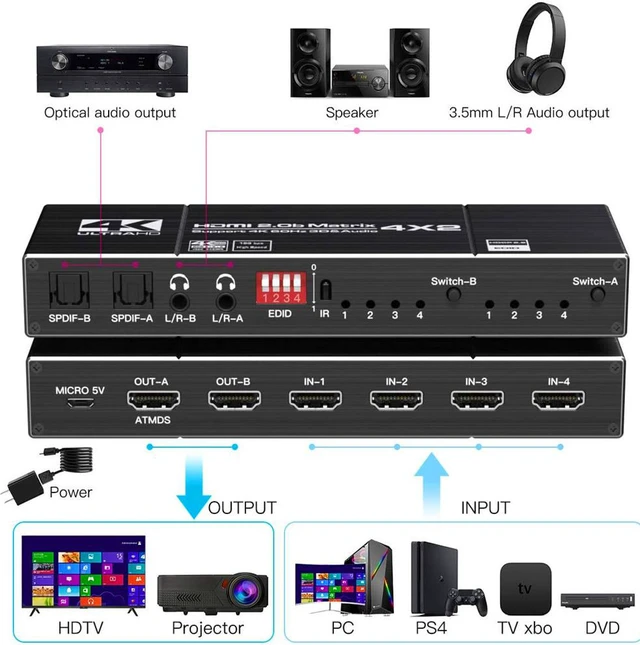

- Support 3.5mm stereo audio interface output and optical output

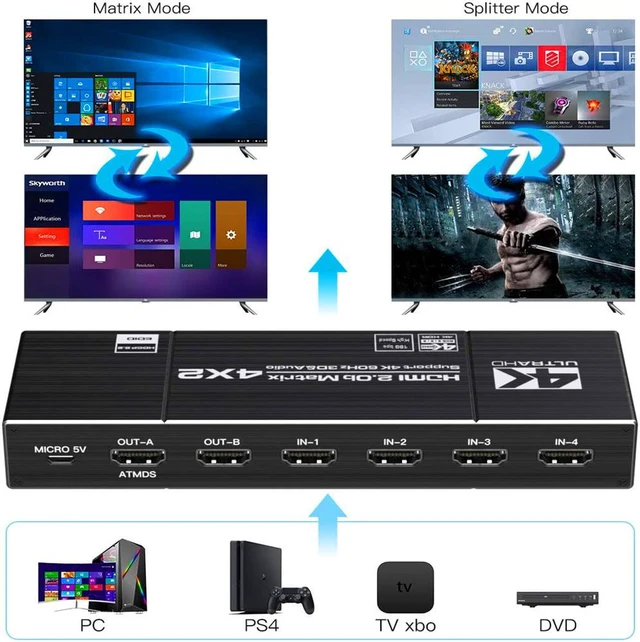

- Support switching or assigning 4 HDMI inputs to 2 HDMI outputs
- Support 5.1 channel
- Support 5V-12V wide voltage input
+
+
Overview
Specs
Reviews
4*2 HDMI Switch Splitter 4 in 2 out 4K@60HZ HDMI 1.4 Matrix 4X2 Dual Audio Output Optical SPDIF 3.5mm L/R 3D Support EDID with Remote Switch Controller
Features:
Support HDMI1.4b version
Support ARC function
Support 3D video format
Support the highest resolution up to 4K 60HZ
TMDS clock is 320Mhz when supporting the highest rate of 3.2G
Support 8/10/12 bit deep color
When the resolution is 1080P and below, when the standard AWG26 cable is supported, the input transmission distance is up to 15 meters, and the output transmission distance is up to 25 meters.
When the resolution is 4K, when the standard AWG26 cable is supported, the input transmission distance is up to 12 meters, and the output transmission distance is up to 15 meters.
Support 3.5mm stereo audio interface output and optical output
Support switching or assigning 4 HDMI inputs to 2 HDMI outputs
Support 5.1 channel
Support 5V-12V wide voltage input
Specifications:KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB KEY_TAB
HDMI version................................................ .....................................HDMI 1.4b
HDMI resolution......................................... ............... 4096*2160/30Hz
Support video format............................................... ............8/10/12 bit deep color
Support audio format............................................... .....DTS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD
Maximum bandwidth transmission......................................... ....................................320MHz
Maximum transmission rate............................................ ....................................3.2Gbps
Input cable length............(1080p resolution)=15m,(4K Resolution) =12mKEY_TAB KEY_TAB KEY_TAB KEY_TAB AWG26 HDMI standard cable
Output cable length............(1080p resolution)=25m,(4K Resolution) =15m AWG26 HDMI standard cable
HDMI input port... ........................................4
HDMI output port............................................... ........................................2
Maximum working current............................................... .....................................1000mA
Power adapter specifications.................. Input : AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A
