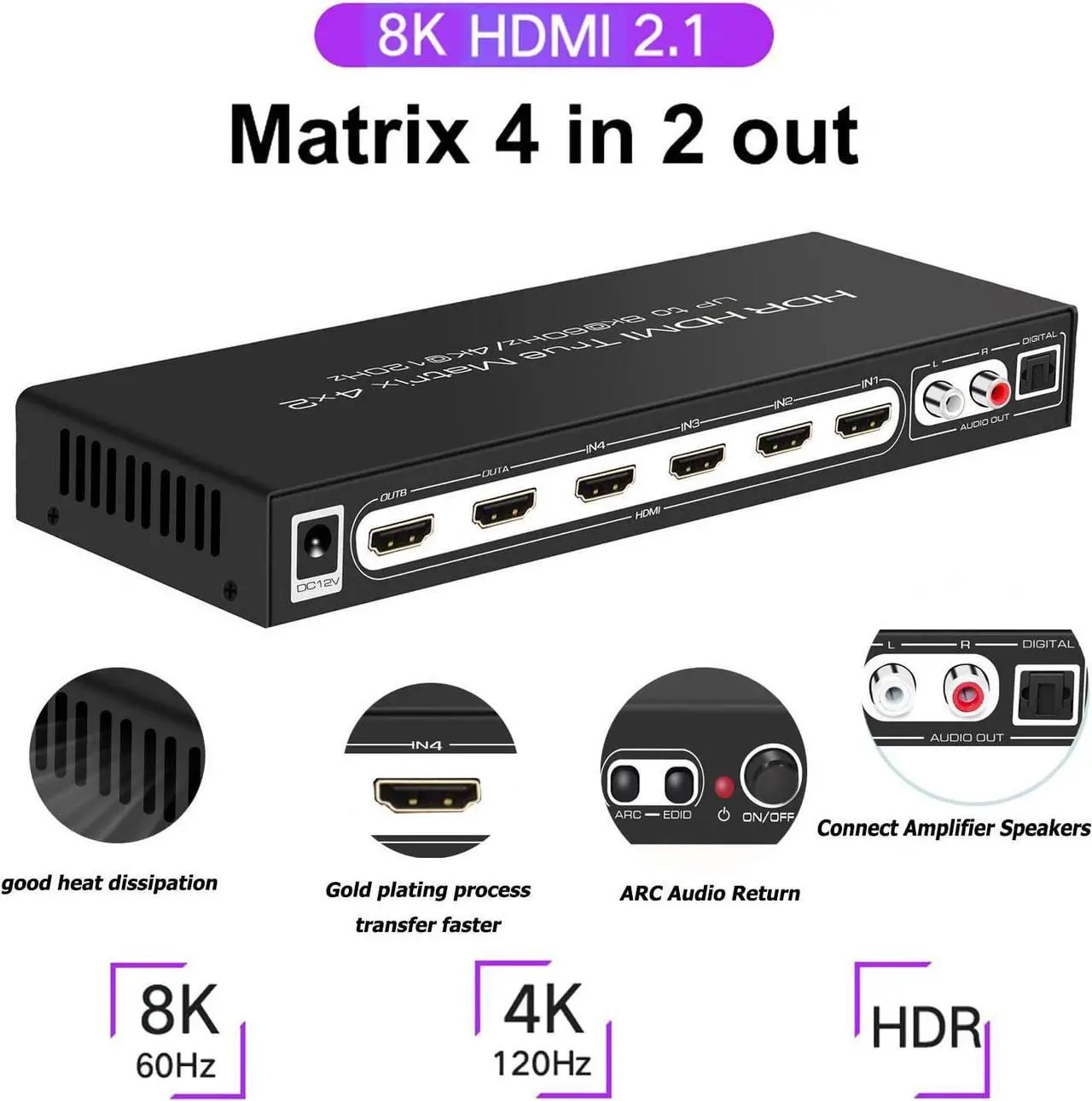

8K 4x2 HDMI Matrix Switch,4 in 2 Out Matrix HDMI2.1 Video Switcher Splitter +Optical & RAC Audio Output, Support 8K @60Hz 4K@120Hz HDR10 ARC with IR Remote Control for PS5 Xbox

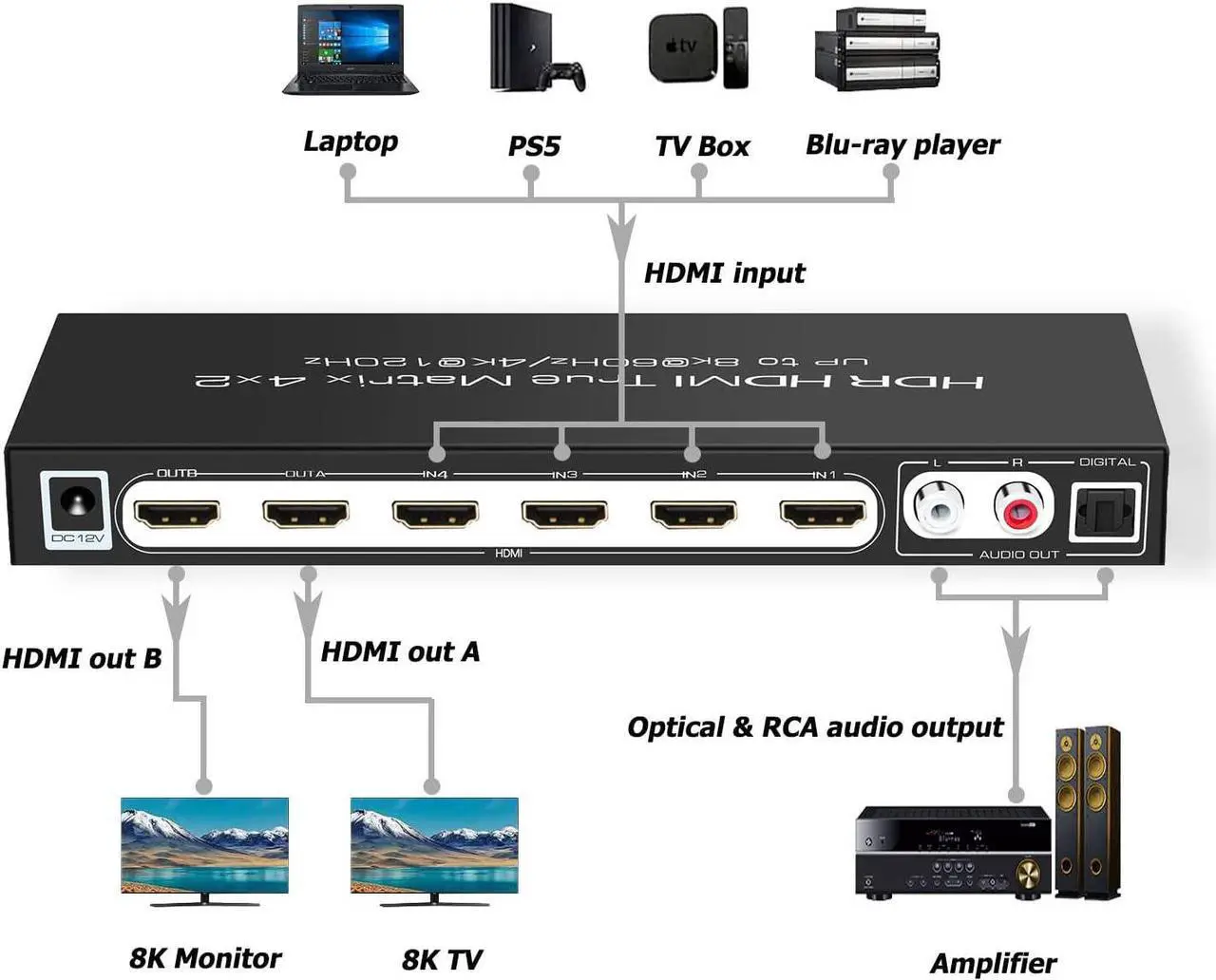

- [8K 4 IN 2 OUT Matrix] This HDMI Matrix can connect up to 4 HD Source to 2 HDMI Display terminals with optical fiber or RCA stereo output,it allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. Ideal solution for home theater, office, school, conference room etc..
- [8K60Hz/4K120Hz High Resolution] Supports 480P/720P/1080P/2160P @24/25/30/50/60/ 100/120Hz;Up to 4320P@50/60Hz.Support HDR10/Dolby Vision Support HDMI 2.1 and HDCP2.3,Support 40Gbps data rate and tmds clock up to 1Ghz

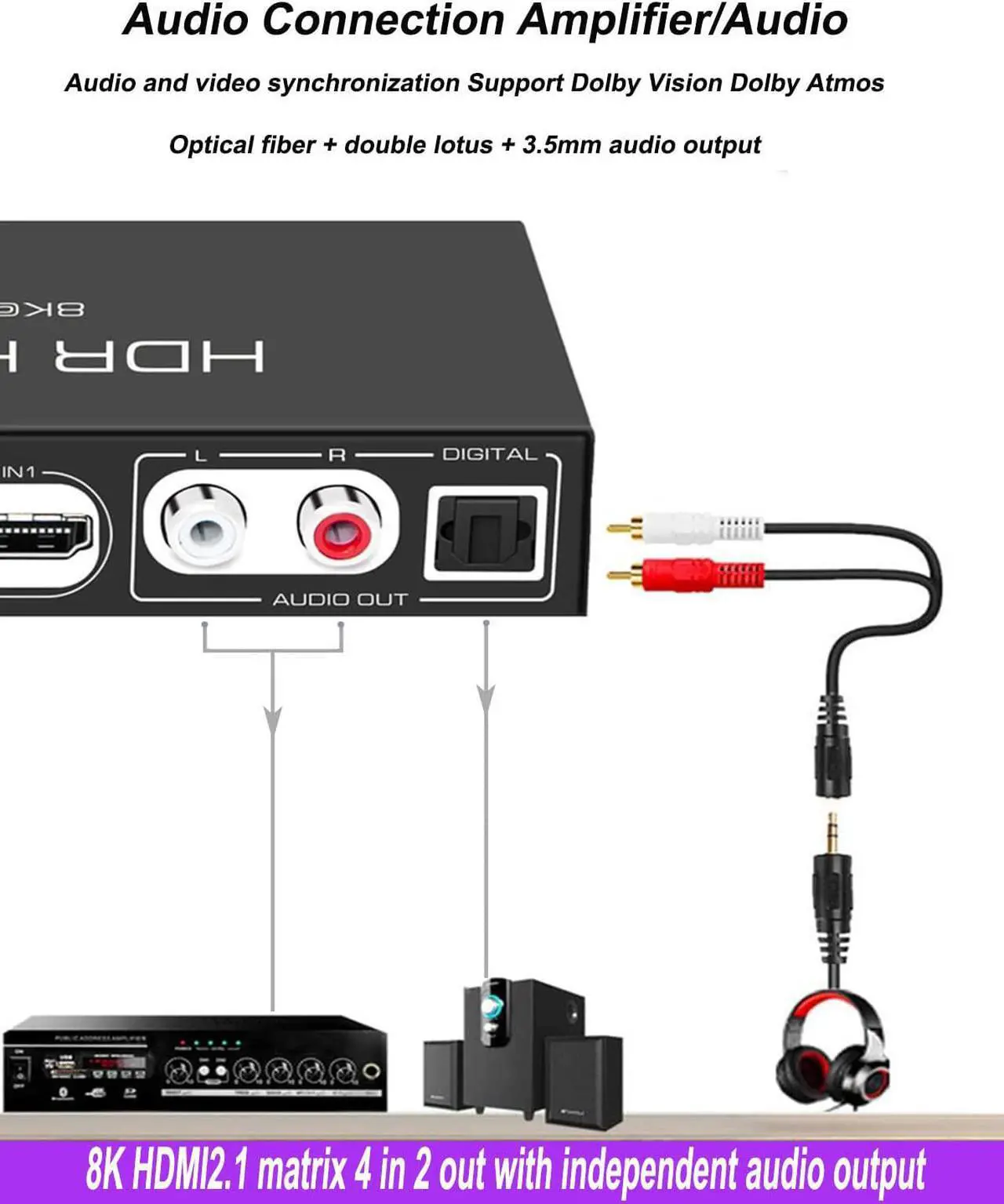

- [Audio Split & power-off memory function] Any input HD source can do audio extract by the SPDIF or RCA audio output port separately or at the same time.Supports Dolby HD/DTS HD/Dolby Atoms/Dolby AC3 etc. Supports ARC.
- [High Compatibility] Plug & Play; Support panel buttons and remote control switching,1~3 sec Fast Input Switching,Input support: Computer, PS5, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV etc.. Output support: Projector, HDTV etc.
+
+
Overview
Specs
Reviews
Specification:

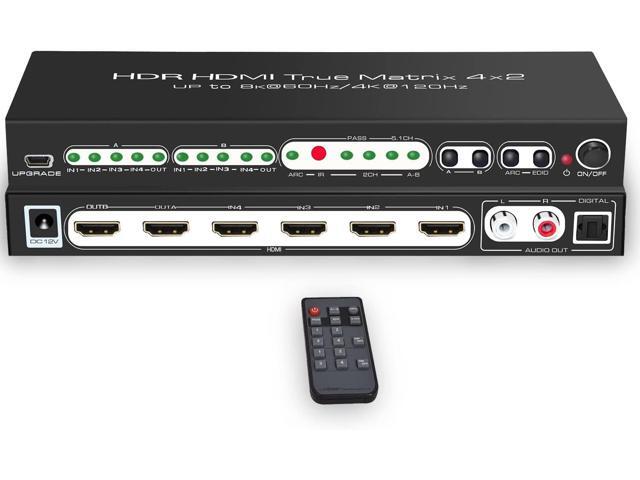

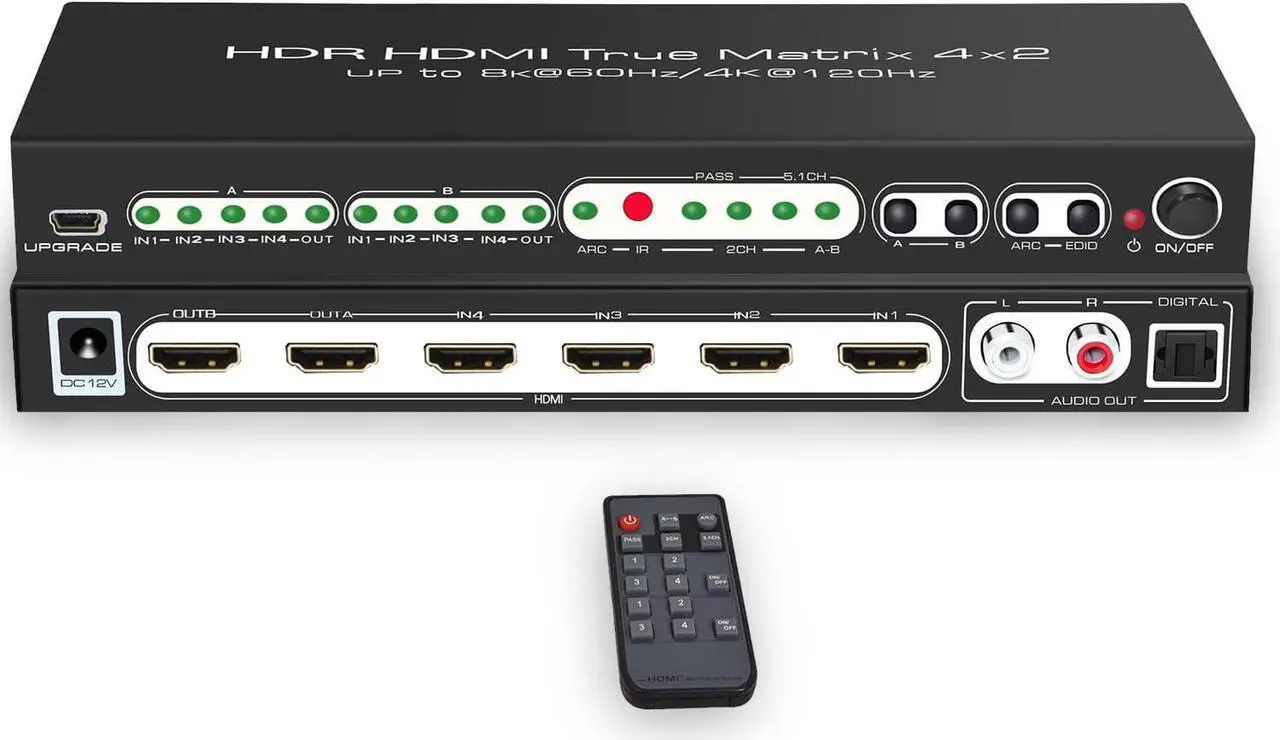

Modelname: 8K HDR HDMI True Matrix 4x2
Inputports: HDM
Ix4
Outputports: HDM
Ix2
Videoformat: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz Up to 4320P@50/60Hz (YCC420), SupportHDR/Dolby Vision
Colordepth: 8/10/12/16Bit@2160P, 8/10bit@4320P
Audioformat: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM
Etc.
Transmissionbandwidth: 1GHz.
Transmissionrate: 40GbpsMax.
IRdistance: 5m
Inputcablelength: 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
Outputcablelength: 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 12m
Poweradapterspecification: AC 100~240V/DC 12V/ 1.5A
Maxworkingcurrent: 300mA
Workingtemperaturerange: -5~ +40
Workinghumidityrange: 5 to 85%RH (No Condensation)
Storagetemperature: -15 to 55
Storagehumidity: 5 ~95%RH (No Condensation)
Size: 250x75x30 (mm)
Weight: 430g
PackageContents: 4 x 2 HDMI Matrix x1, Remote Control x1 (without batteries), User Manual x1 Power Adapter x1

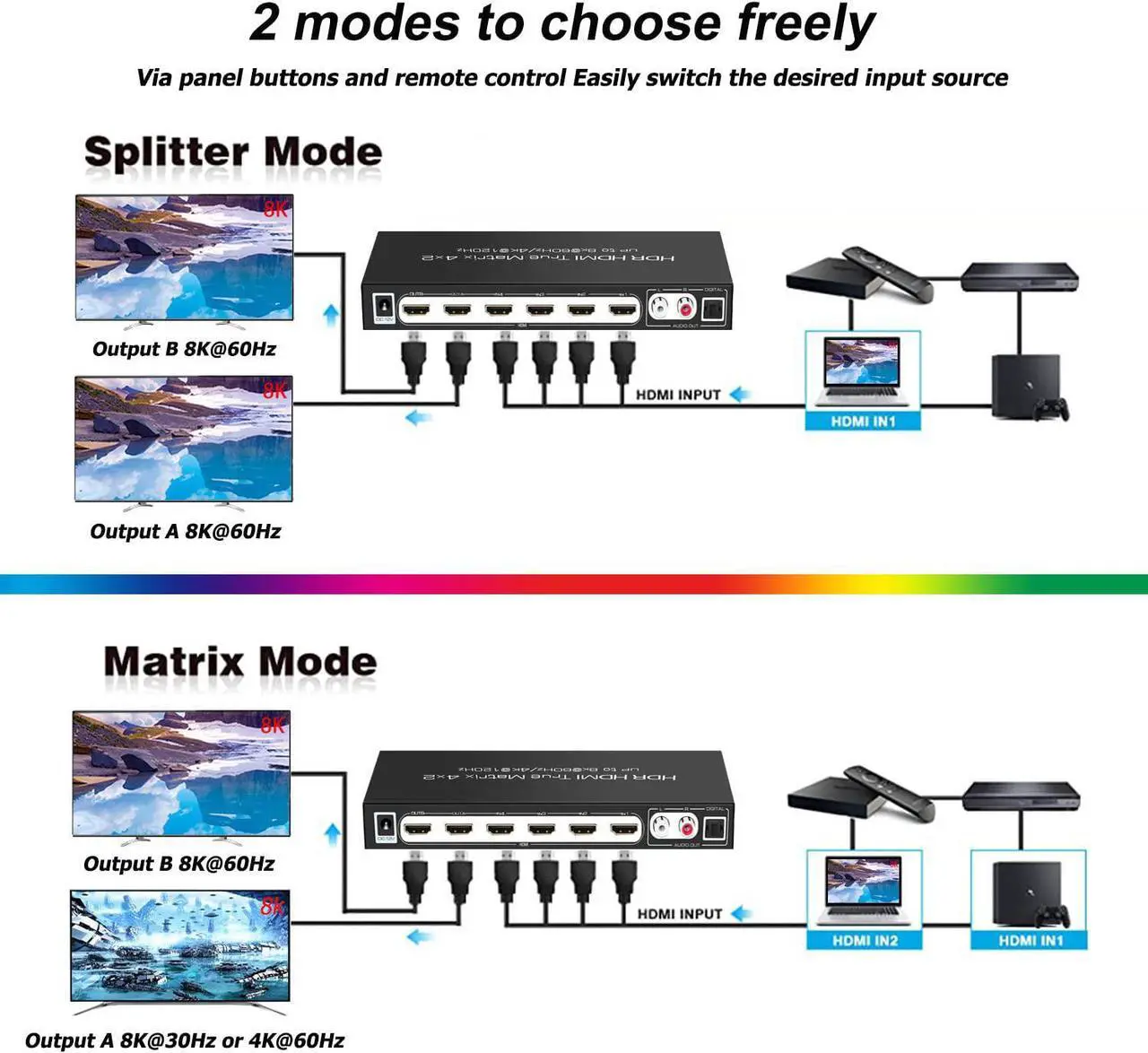

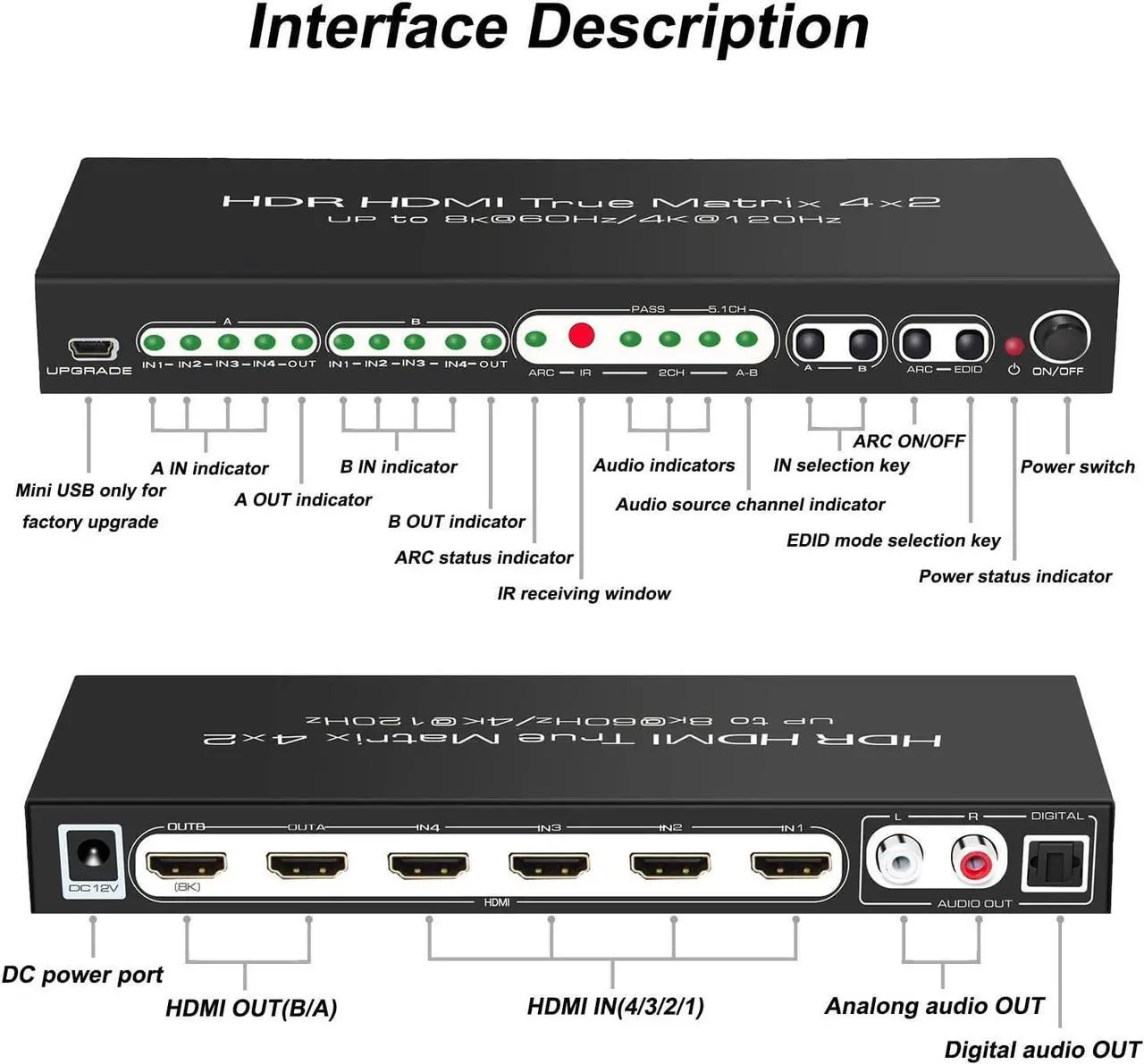

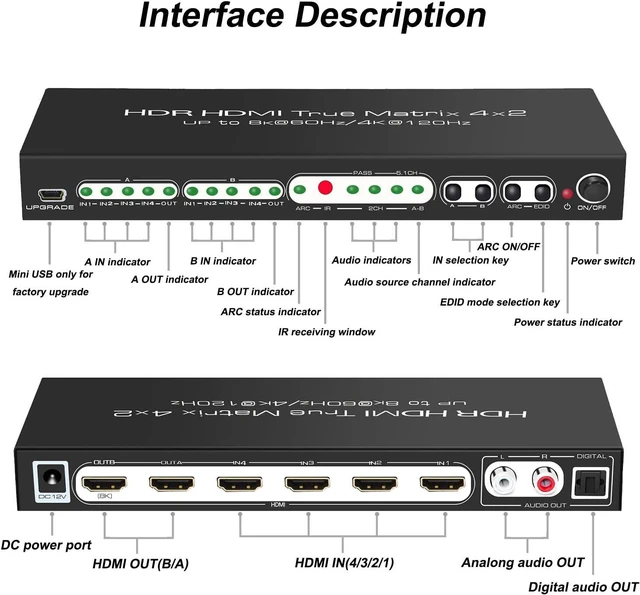

Mattersneedingattention: Please preferentially connect 8K TV to OUTB. OUTA outputs 8K@60 or 4K@120 resolution only in split mode(In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30 or 4K@60in other modes. The AUDIO OUTis a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the "A-B" key. The Audio EDID mode selection is also available for multiplexed. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B. Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the EDID mode in 2CH mode when using analog audio output. If you want to use ARC or CEC, you must connect the TV to the OUT A port. Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.
Modelname: 8K HDR HDMI True Matrix 4x2
Inputports: HDM
Ix4
Outputports: HDM
Ix2
Videoformat: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz Up to 4320P@50/60Hz (YCC420), SupportHDR/Dolby Vision
Colordepth: 8/10/12/16Bit@2160P, 8/10bit@4320P
Audioformat: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM
Etc.
Transmissionbandwidth: 1GHz.
Transmissionrate: 40GbpsMax.
IRdistance: 5m
Inputcablelength: 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
Outputcablelength: 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 12m
Poweradapterspecification: AC 100~240V/DC 12V/ 1.5A
Maxworkingcurrent: 300mA
Workingtemperaturerange: -5~ +40
Workinghumidityrange: 5 to 85%RH (No Condensation)
Storagetemperature: -15 to 55
Storagehumidity: 5 ~95%RH (No Condensation)
Size: 250x75x30 (mm)
Weight: 430g
PackageContents: 4 x 2 HDMI Matrix x1, Remote Control x1 (without batteries), User Manual x1 Power Adapter x1
Mattersneedingattention: Please preferentially connect 8K TV to OUTB. OUTA outputs 8K@60 or 4K@120 resolution only in split mode(In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30 or 4K@60in other modes. The AUDIO OUTis a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the "A-B" key. The Audio EDID mode selection is also available for multiplexed. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B. Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the EDID mode in 2CH mode when using analog audio output. If you want to use ARC or CEC, you must connect the TV to the OUT A port. Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.
