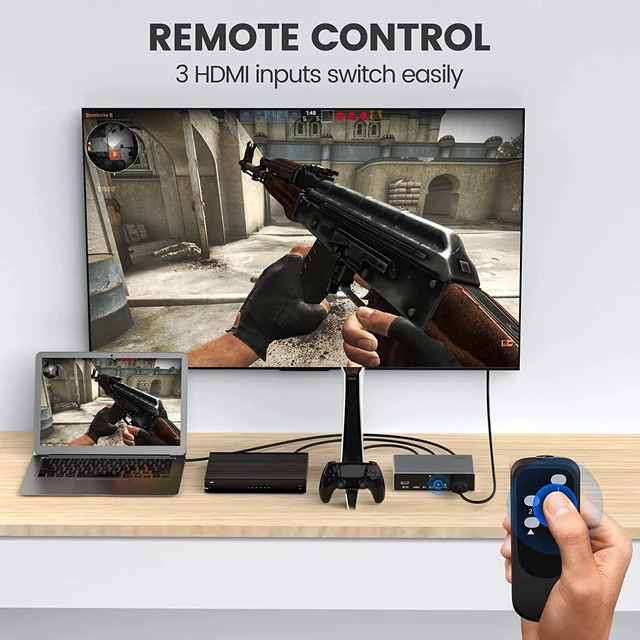

The upgraded HDMI switcher is equipped with a remote control, which is convenient for you to enjoy the ultimate enjoyment when building your home theater, and you can better control the screen switching.

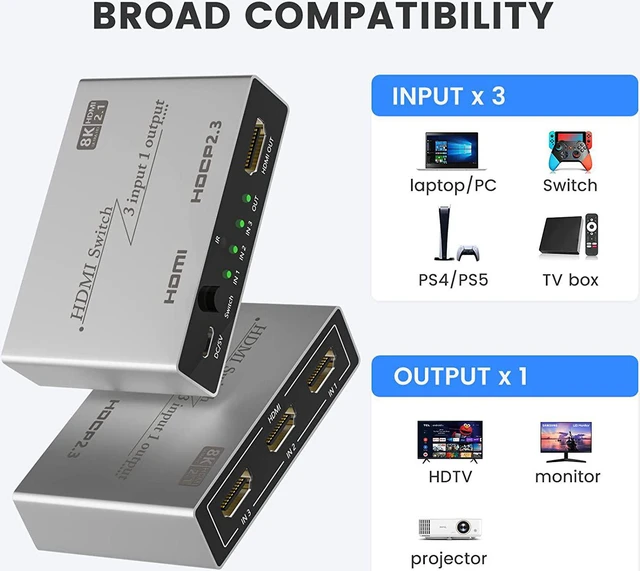

1. Supports 3 HDMI inputs 1 HDMI output.
2. Compatible with HDMI V2.1 devices.
3. Supports HD resolutions up to 8k@60Hz and downward compatible.
4. Supports uncompressed audio, such as LPCM.Supports compressed audio, such as DTS Digital, Dolby Digital, DTS-HD, and Dolby TrueHD

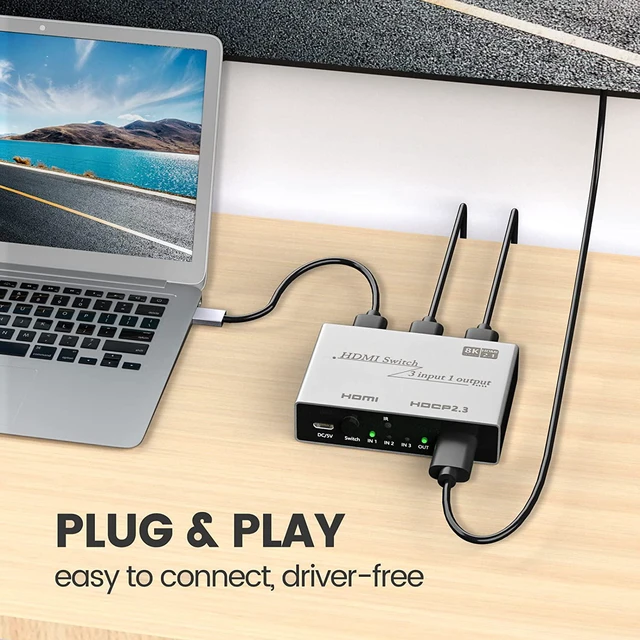

1. Connect an HDMI source device (such as DVD player) to one of the input ports of the HDMI switcher.
2. Connect display device such as HDTV's input port to the output of the HDMI switcher.
3. Connect the USB-Micro USB cable to power port .
4. After all connections are done, you can watch HD videos on your HDTV .
Features:
HDMI /HDCP Version: HDMI 2.1, HDCP2.3
HDMI The resolutions: 24/50/60fps
480p/576/480/576p/720/1080/1080p/2160p/4320p
Supports video in color format: 24 bits, 30 bits, 36 bits
Supports audio: DTS HD/Dolby * - trueHD/ LPCM7.1 / DTS/Dolby * - AC3 / DSD HD (HBR)
Maximum transmission rate: 48.0 Gbps
Distance between the input cable and the output cable: 2 m AWG24 HDMI standard cable
Distance of the output cable: 2 m AWG24 HDMI standard cable
Maximum working current: 500mA
Operating humidity range: 5% to 90%RH

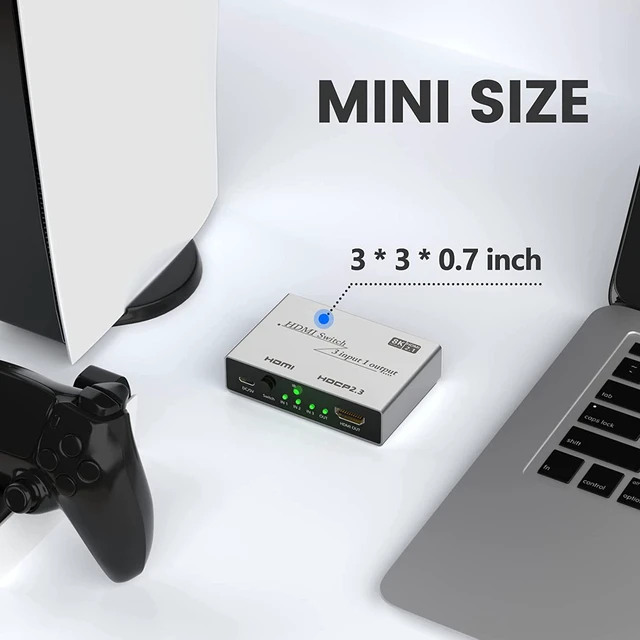

Size (LxWxH): 83x55x20(mm)
Weight:83g
Package included:

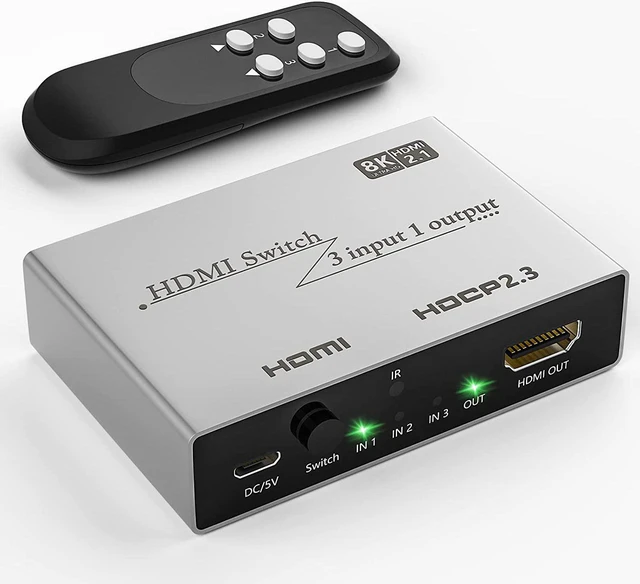

1 x HDMI 3x1 switch
1 x USB power supply line
1 x Remote control
1 x Operating instructions
