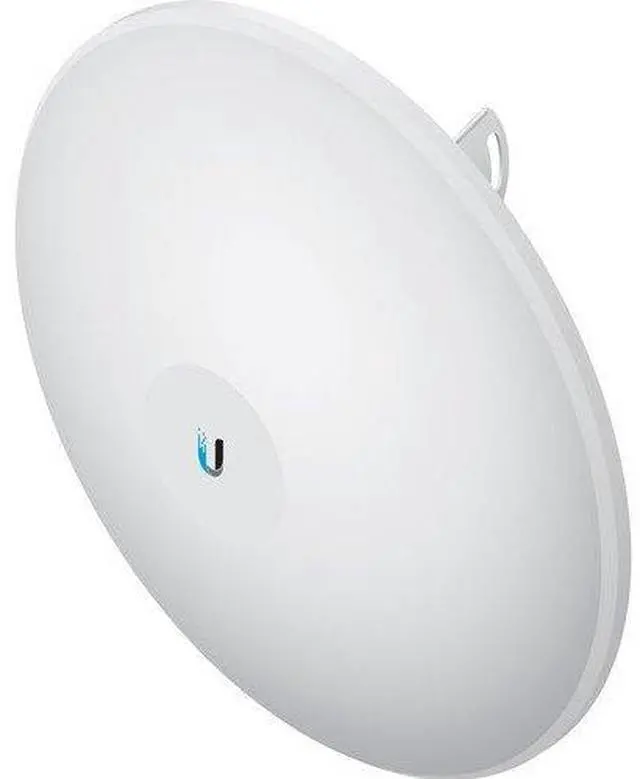

Ubiquiti PBE-5AC-500 PowerBeam ac High-Performance airMAX Bridge Outdoor Antenna

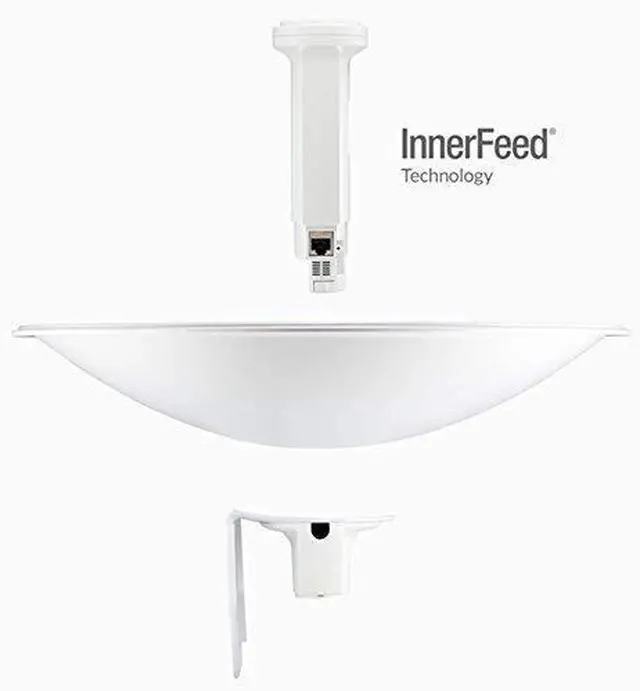

The PBE-5AC-500 PowerBeam ac High-Performance airMAX Bridge from Ubiquiti Networks is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450+ Mb/s and also offers wide range of 16+ mi (25+ km). The InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance while eliminating cable losses. Ubiquiti's airMAX engine with custom IC improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. The PowerBeam ac's enhanced beam directivity provides optimal performance in high-noise environments. The TDMA airMAX protocol enables optimal scalability, high throughput, and low latency in unlicensed, multi-point networks. It supports airMAX ac protocol and has a long-range Point-to-Point (PtP) link mode. This offers selectable channel width of 10/20/30/40/50/60/80 MHz in PtP and 10/20/30/40 MHz in PtMP. Integrated airMAX ac technology boosts the advantages of proprietary TDMA protocol. The mounting bracket of the PowerBeam offers 20° of uptilt and 10° of downtilt, while the mounting bracket offers ± 15° of tilt.

Product information

Additional Features

• airMAX ac devices feature a multi-radio architecture to power an enhanced RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which analyzes the full 5 GHz spectrum and every received symbol to provide you with the advanced RF analytics in the industry. Data from the spectrum analysis and RF performance monitoring is displayed on the main tab and airView Spectrum analyzer of airOS V7.
