HDMI Audio Extractor, 4K@60Hz HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Output, HDMI Audio Converter Adapter Embedder Support 1080P 3D Suit for Fire Stick, Xbox, Laptop

HDMI AUDIO EXTRACTOR

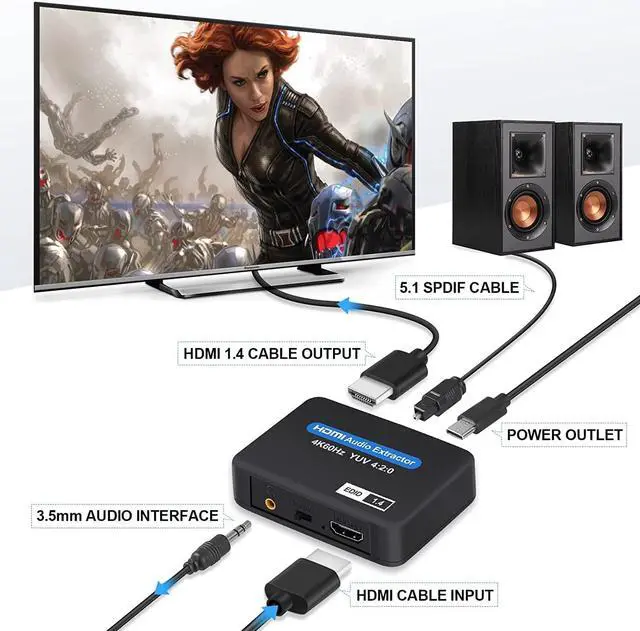

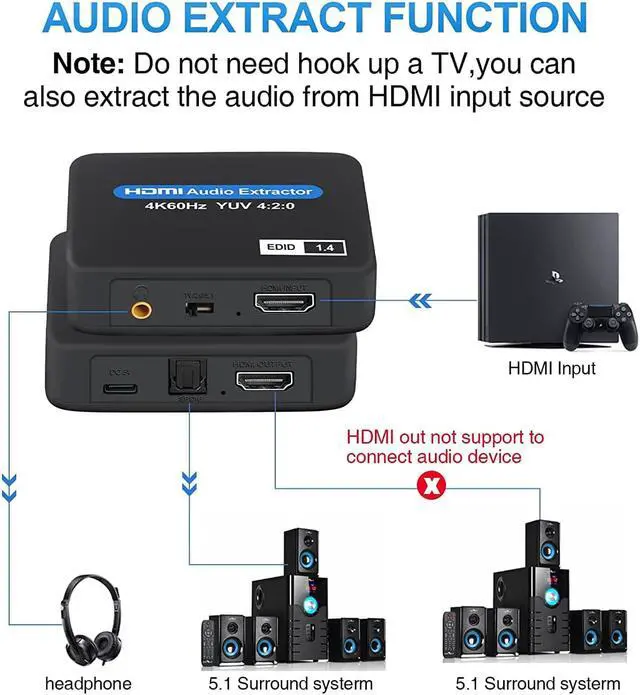

One HDMI input to one HDMI output + Optical Toslink SPDIF and 3.5 mm stereo audio output, achieving the synchronization of audio signal separation. (Tips: Optical Toslink SPDIF and 3.5 mm audio support output separately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
4K@60HZ HIGH RESOLUTIONNEWCARE HDMI audio extractor splitter support 4Kx2K@60Hz/ 3D/1080p/1080/720p. HDCP 1.4, YUV:
4:2: 0.
Support video color format: 24bit/deep color 30bit.
Audio format: DTS-HD/dobly-trueHD/LPCM 7.1 /DTS/Dobly-AC3/DSD (Not Support Always Dobly Digital Plus). Max Bandwidth of 10.8G bps. Using AWG26 HDMI standard cable, the longest input and output can reach 32.8 ft respectively.
THREE AUDIO EDID SETTINGS: HDMI Audio Converter has three kinds of audio mode TV, 2.0CH and 5.1CH. 3.5MM audio output supports 2.0CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2.0CH PCM, 5.1CH. (
Note: Our Audio Extractor can' t decode these audio formats. If your Amplifier or soundbar can' t support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format. )

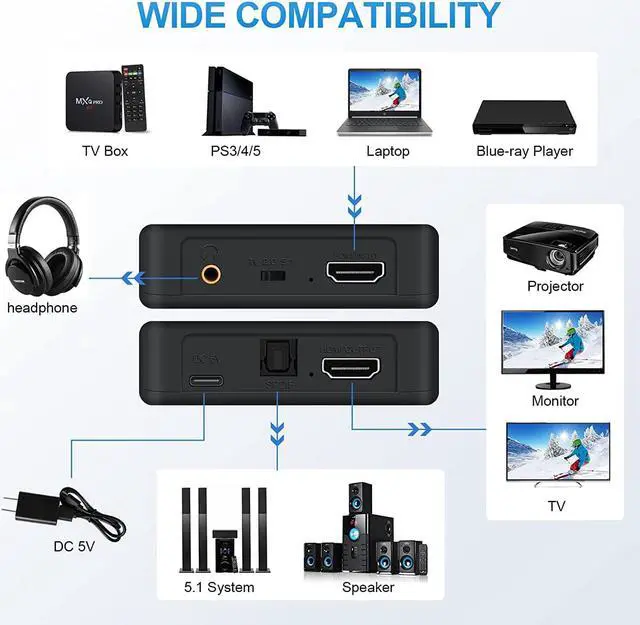

WIDE COMPATIBILITY4K HDMI Audio Extractor Embedder is Suitable for various HDMI source devices like Blu-ray/ DVD/ HD player, Fire TV, Apple TV, PS5, Xbox, PC/laptop, HD camera, HD DVR etc. Due to voltage supply each device can support is different and limited, For some devices with low power HDMI ports(Such as PS4, PS4 Slim and other Sony Device), we highly recommend using power adapter.

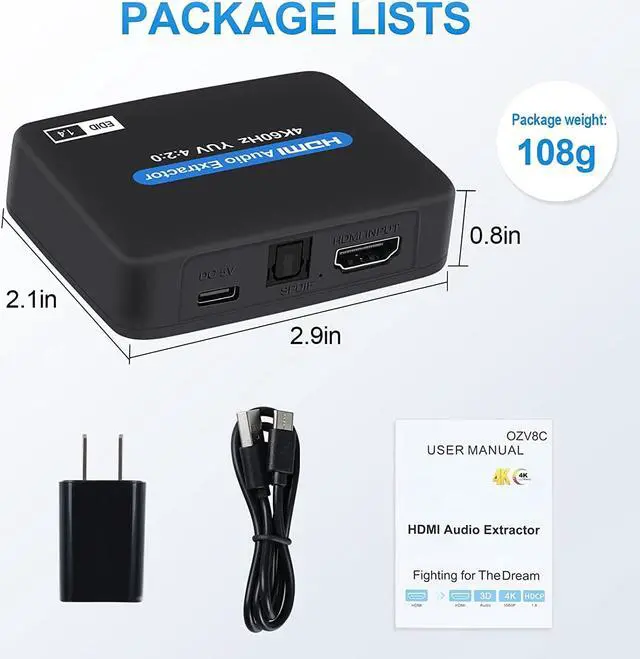

WHAT YOU GET: 1x HDMI Audio Extractor Converter, 1x 5V Power Adaptor, 1x User Manual. Our products are backed with ONE YEAR limited warranty, If you have any questions or concerns, please feel free to contact us directly by click Sold by then clicking Ask question, we would respond within 24 hours.
