HDMI Audio Extractor 4K x 2K HDMI to HDMI Optical TOSLINK SPDIF + 3.5mm Stereo Extractor Audio Splitter eokCXOY

Feature:

HDMI AUDIO EXTRACTOR

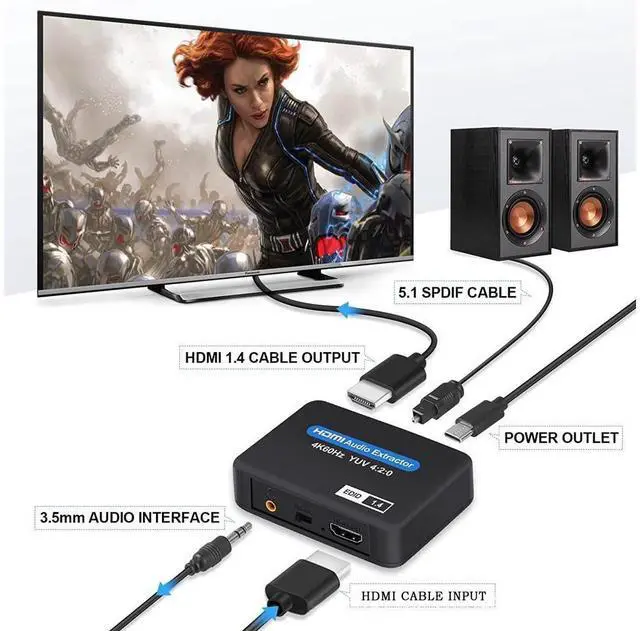

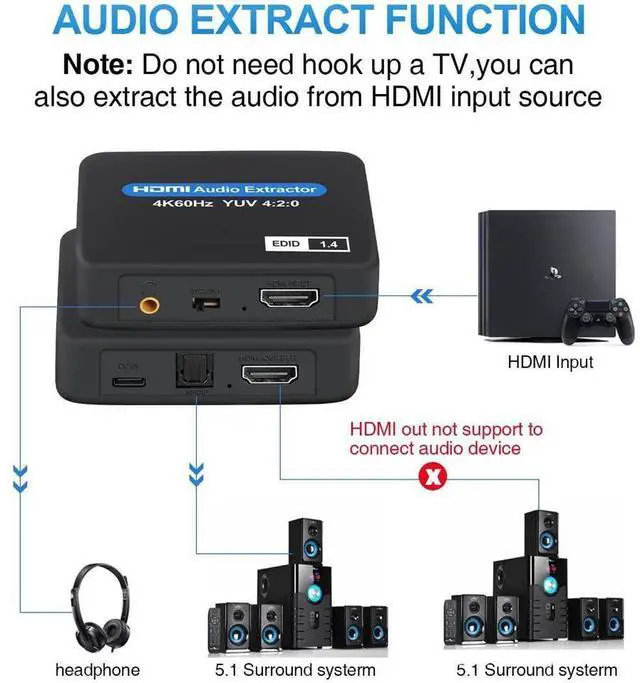

One HDMI input to one HDMI output + Optical Toslink SPDIF and 3.5mm stereo audio output, achieving the synchronization of audio signal separation. (Tips: Optical Toslink SPDIF and 3.5mm audio support output separately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)

4K@60HZ HIGH RESOLUTION

HDMI audio extractor splitter support 4Kx2K@60Hz/ 3D/1080p/1080/720p. HDCP1.4, YUV:4:2:0. Support video color format:24bit/deep color 30bit. Audio format: DTS-HD/dobly-trueHD/LPCM7.1/DTS/Dobly-AC3/DSD(Not Support Always Dobly Digital Plus). Max Bandwidth of 10.8Gbps. Using AWG26 HDMI standard cable, the longest input and output can reach 32.8ft respectively.

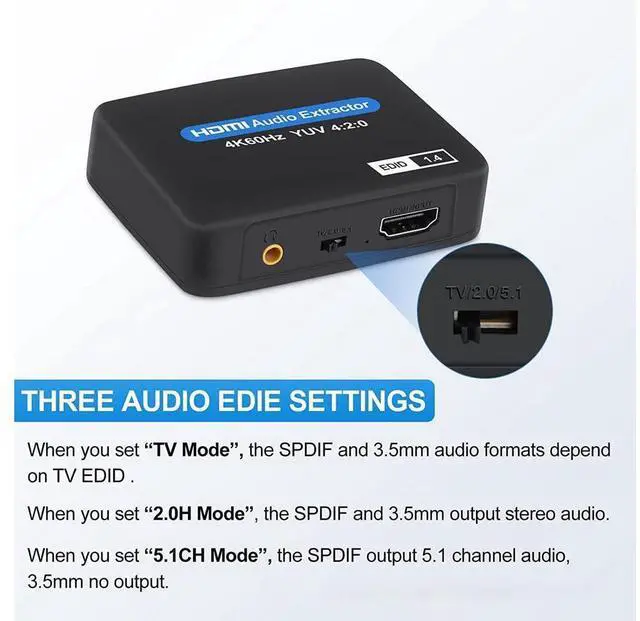

THREE AUDIO EDID SETTINGS

HDMI Audio Converter has three kinds of audio mode TV, 2.0CH and 5.1CH. 3.5MM audio output supports 2.0CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2.0CH PCM, 5.1CH .( Note: Our Audio Extractor can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format.)

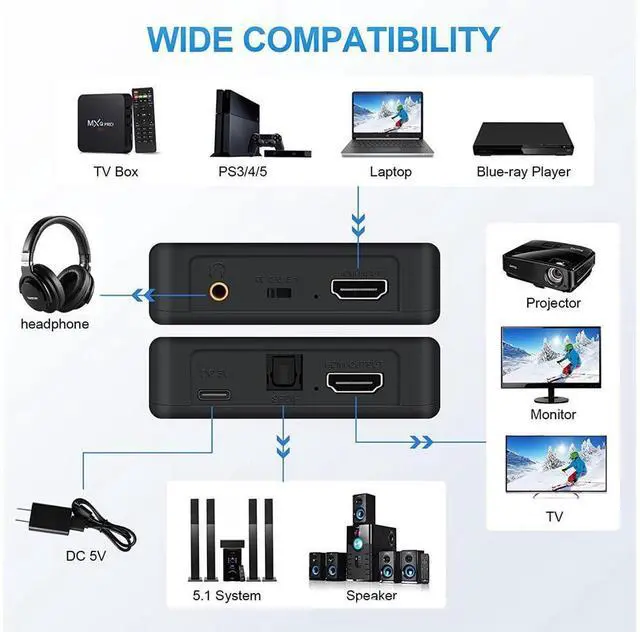

WIDE COMPATIBILITY

4K HDMI Audio Extractor Embedder is Suitable for various HDMI source devices like Blu-ray/ DVD/ HD player, Amazon Fire TV, Apple TV, PS5, Xbox, PC/laptop, HD camera, HD DVR etc. Due to voltage supply each device can support is different and limited,For some devices with low power HDMI ports(Such as PS4, PS4 Slim and other Sony Device), we highly recommend using power adapter.

Product parameters

HDCP version............................................ HDCP1.4

HDMI version........................................................ HDMI1.4B

HDMI resolution.................................... 2160P @ 30HZ/

/720P/15761/480P/480I at 1080 @ 50/60HZ/1080I

Support video color format.................................... 24 bits/dark color 30 bits/36 bits

Audio output.................................... SPDIF+3.5MM audio

Maximum bandwidth.................................... 340MHz

Maximum transfer rate................................................ 10.2Gbps

Input/output TMDS signal............................... 0.5-1.5VOLTS P-P (TTL)

Input/output DDC signal................................ 5VOLTS P-P (TTL)

Input cable distance..........................<=7M AWG26 standard cable HDMI

Output cable distance..........................<=8M AWG26 standard cable

Maximum operating current of HDMI............................................................ 500MA

Working voltage................................................ DC+5V

Operating temperature range............. (- 15 to+55 ?)

Operating humidity range.................................. 5 to 90% RH (non condensing)

Dimension (L x W x H).................................... 58X53X21.9 (MM)

Weight.................... 61 g
