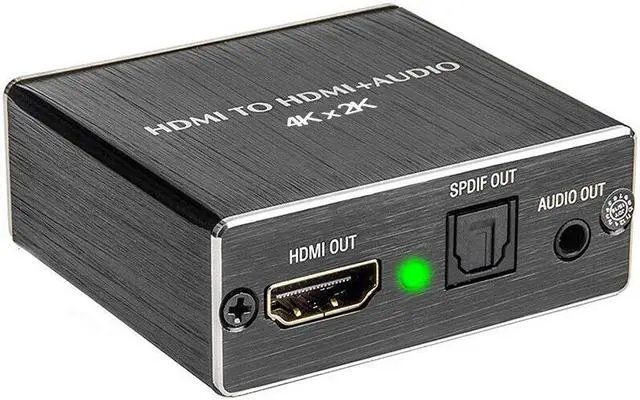

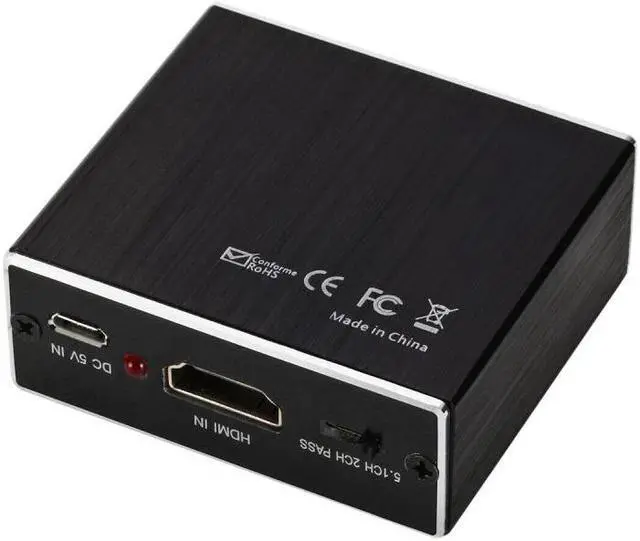

Description:

This HDMI-audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source.

It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm L/R analog output and SPDIF output at the same time.

The RCA L/R and SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH(NOT support Dolby Digital Plus)

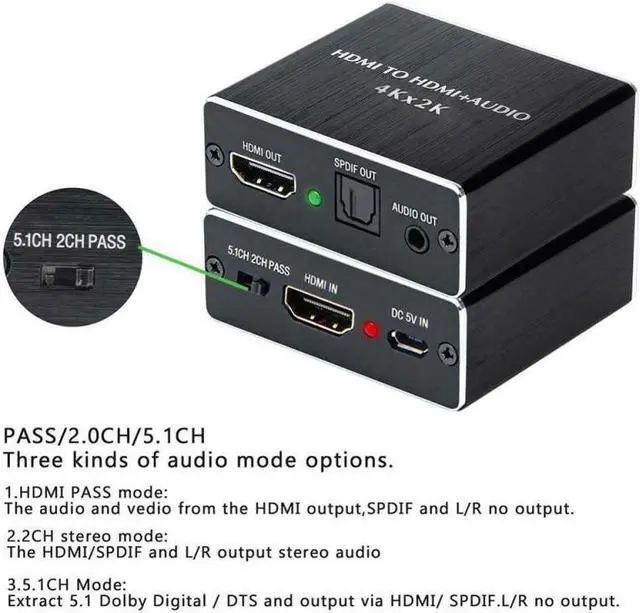

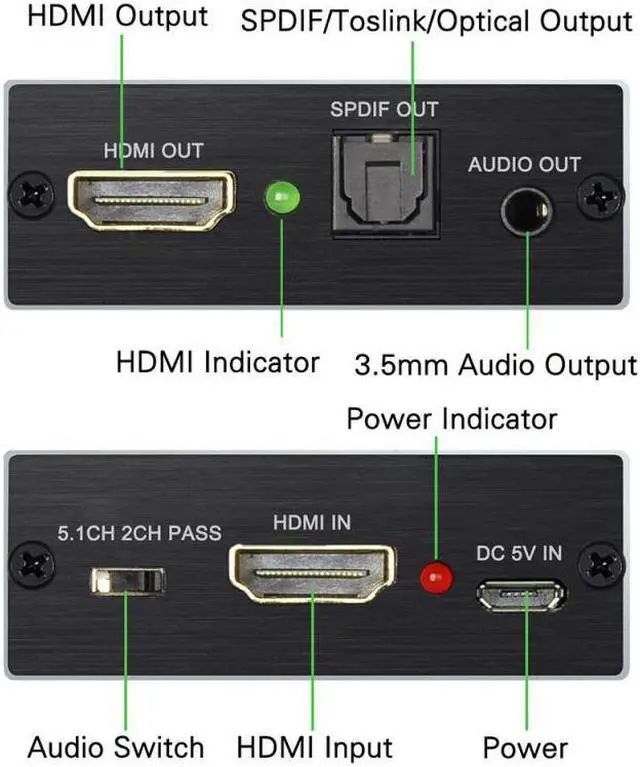

Three switching audio EDID settings:

Pass: HDMI-pass mode. The audio and video can be convertered from the HDMI-compatibleoutput. SPDIF and L/R will not output any sound.

2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.

5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.



Features:

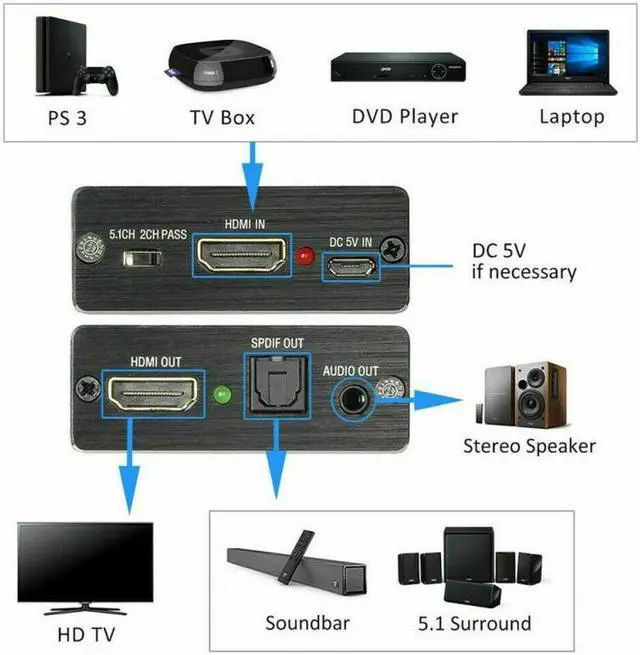

Convert 1 HDMI Input to 1 HDMI + 1 Audio (SPDIF) Output+ 3.5mm Analog Audio Output

Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.

HDMI to achieve the synchronization of audio signal separation.

There are PASS/ 2.0CH/ 5.1CH three kinds of audio mode options.

LED clearly indicate the working state of the Extractor.



Specifications:

HDCP Version...........................................HDCP1.4

HDMI Version...........................................HDMI 1.4b

HDMI resolution................................2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i

Support Video Color Format.........24bits/deep color 30bit,36bit

Audio Output...........................SPDIF+3.5mm Audio

Max Bandwidth...........................................340MHz

Max Baud Rate.........................................10.2Gbps

Input/ Output TMDS signal.....0.5-1.5Volts p-p(TTL)

Input/ Output DDC signal.................5Volts p-p(TTL)

Input Cable Distance...........................<=7m AWG26 standard cable HDMI-compatible

Output cable distance........................<=8m AWG26 standard cable HDMI-compatible

Max Working Current....................................500mA

Working Voltage......................................DC +5V

Operating temperature range............(-15 to +55°C)

Operating humidity range...........................5 to 90% RH(NO Condensation)

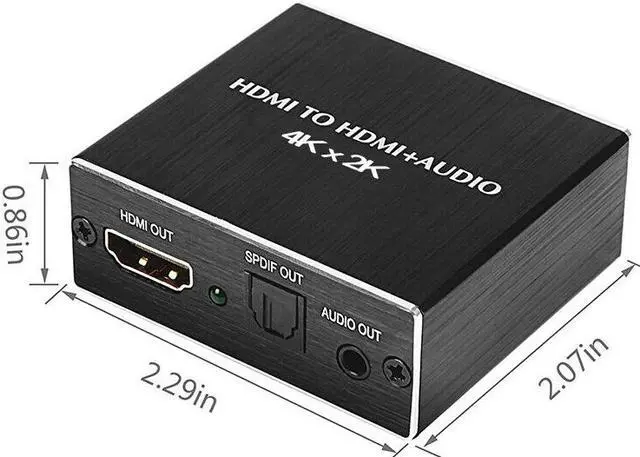

Dimension (LxWxH)..................58 x 53 x 21.9(mm)
