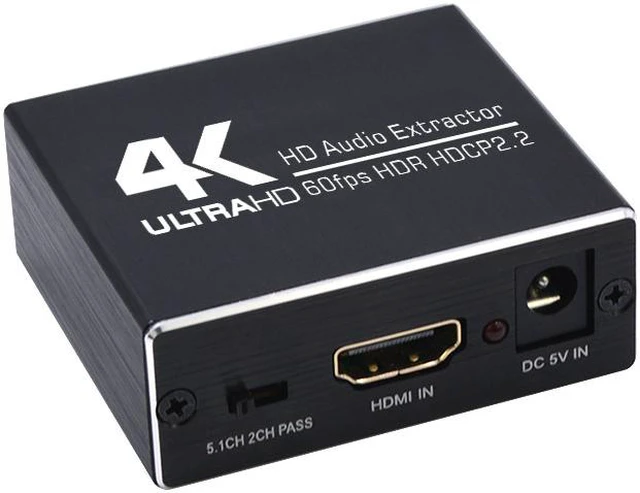

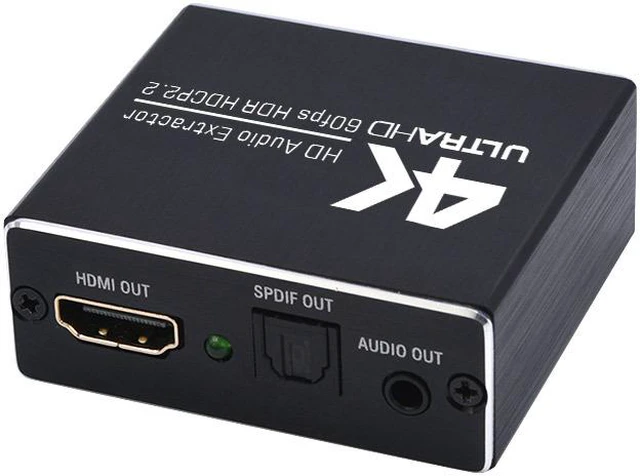

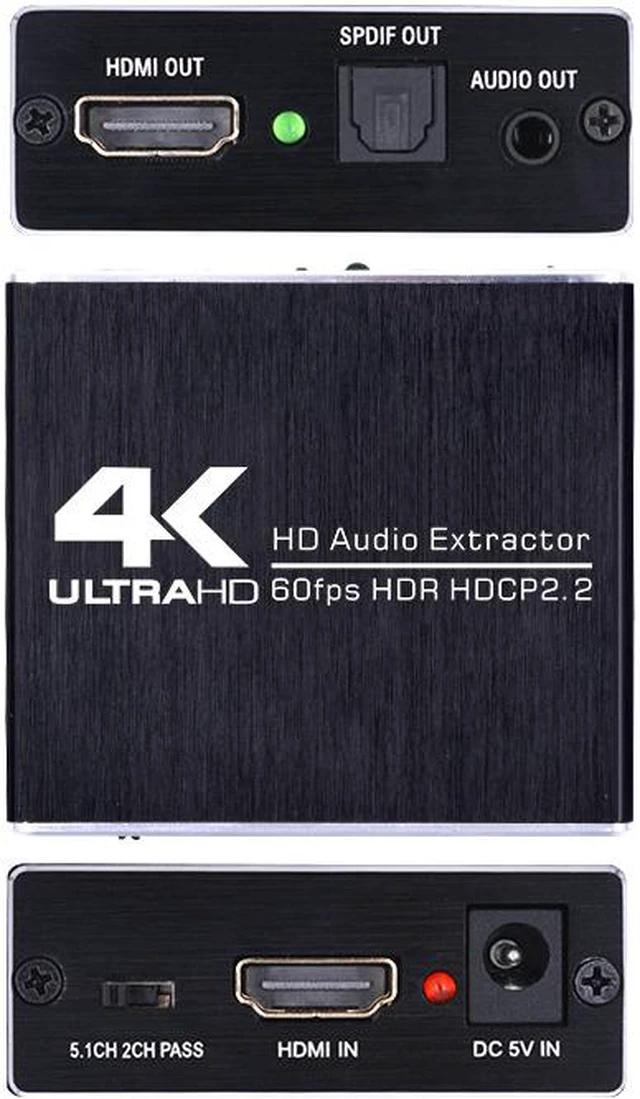

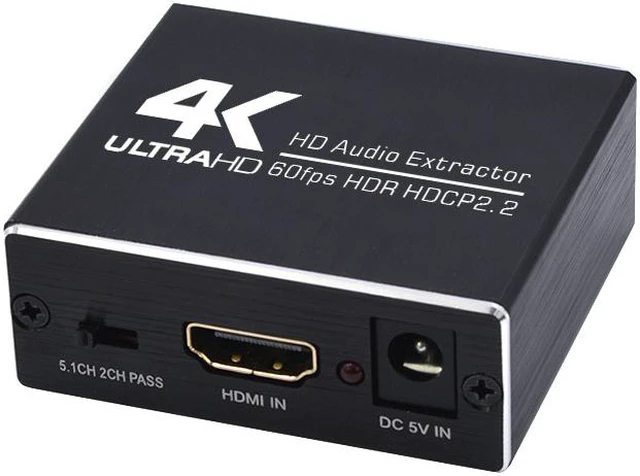

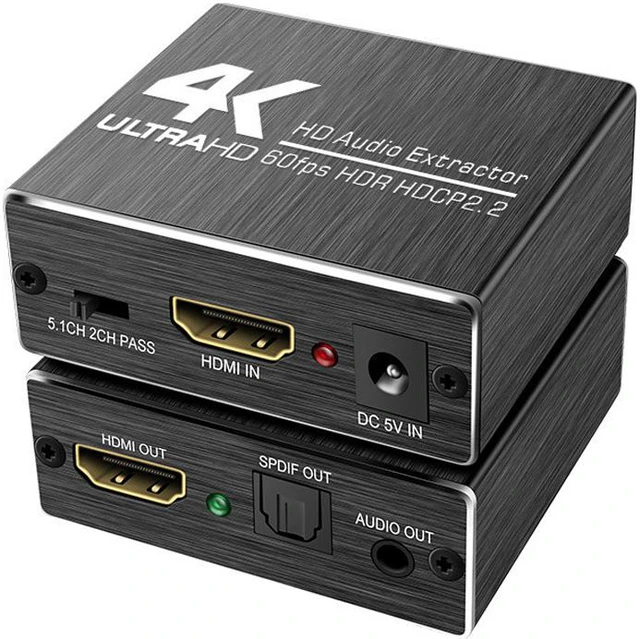

4K/60HZ HDMI Audio Extractor HDMI 2.0 Stereo Extractor Converter Optical TOSLINK SPDIF + 3.5mm Audio Splitter Adapter supports 3D HDR YUV4:4:4 3 EDID

4K/60HZ HDMI Audio Extractor HDMI 2.0 Stereo Extractor Converter Optical TOSLINK SPDIF + 3.5mm Audio Splitter Adapter supports 3D HDR YUV4:4:4 3 EDID



Product introduction:

This audio splitter can be connected between the signal source device (DVD player, Blu-ray player, network player, set-top box, PS2, PS3, Xbox360, PC, etc.) and display device (TV, HD monitor, projector), One optical fiber signal can be separated synchronously, and one stereo connected to the audio system to obtain high-quality audio signal. Support AC-3, DTS, LPCM and other audio formats.



Features:

Support 1 HDMI input port

Support 1 HDMI output port Support 1 optical digital audio output port

Support 1 stereo audio output port

Support 4K/60fps resolution input

Support 3D, HDR, YUV4:4:4

Support HDCP2.2

Support AC3, DTS, LPCM and other digital audio formats

Audio output supports 3 EDID selection modes (2CH/5.1CH/PASS)

No signal loss

easy installation



Product parameters:

Input/output resolution...1080p/60fps, 4K/30fps, 4K/60fps color depth

Digital audio format......Dolby Digita (l AC3)/DTS/LPCM

Maximum transmission bandwidth............................................... .......600MHz

Maximum transmission speed............................................... .......18 Gbps

Input and output TMDS signal............0.5~1.5Vp-p(TTL)

Input and output DDC signal............5Vp-p(TTL)

DAC sampling frequency.................. 32~ 192 KHz

DAC bit rate............................................ .......16~24 Bit

RCA analog output (1KHz@0dB)...............................1V RMS

Signal-to-noise ratio @0dB (CC1R/ARM)........................=90dB

Distortion ... ....................=0.1%

Frequency response................................................ .....20HZ~20KHz

Input cable length............=3m AWG26 HDMI standard cable

Output cable length............=3m AWG26 HDMI standard cable

Maximum working current............................................... .........400mA

Power adapter specifications...... AC 100V-240V 50/60HZ, DC 5V/1A

Operating temperature................................................ .........-10~+55?

Storage temperature......................................... ..........-20~+60?

Working humidity.........................................10~90%RH (no Condensation)

Storage humidity..........................................5~95%RH (No condensation)

Shell size...85*60.5 *20 (mm)
