18Gbps HDMI eARC Audio Extractor ARC eARC Loop & Audio Extractor HDMI 2.0 4K2K@60Hz EDID Management Splitters for Amplifier Soundbar Speaker HDTV

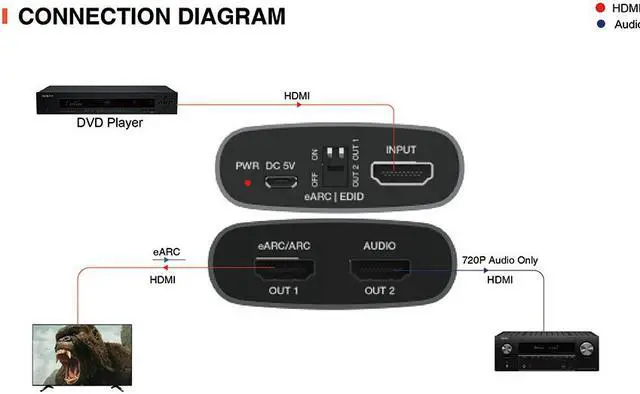

The 18Gbps HDMI eARC audio extractor supports dedicated HDMI output for extracting audio only. It allows user to use the existing AV Receiver to receive 4K2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range) pass-through and eARC/ARC.

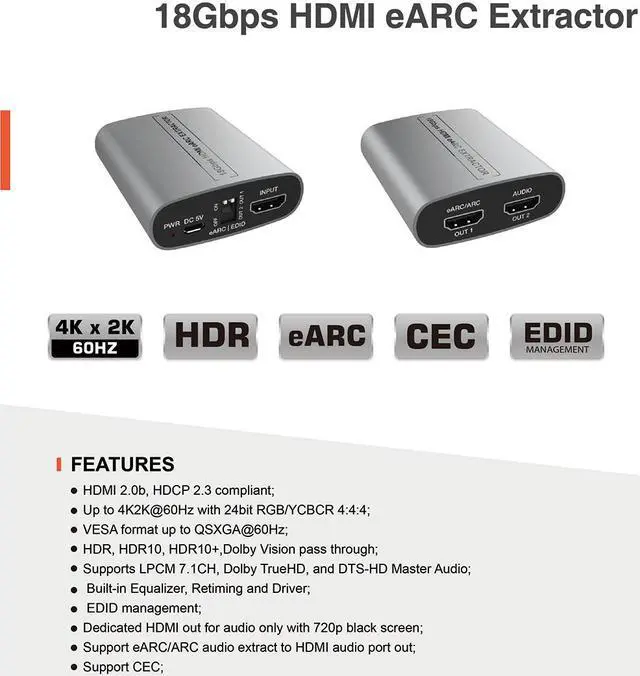

Features:

HDMI 2.0b and HDCP 2.3 / 1.x compliant

Support 18Gbps video bandwidth

Support video resolution up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4

Support VESA format up to QSXGA@60Hz HDR, HDR10, HDR10+,KEY_TAB

Dolby Vision pass-through

Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital,Dolby digital plus, Dolby True-HD, Dolby Atmos,DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master,DTS:X

Built-in Equalizer, Retiming and Driver

Dedicated HDMI output for audio only with 720p black screen

Support eARC/ARC audio (from TV) extract to HDMI audio output

Support CEC function and advanced EDID management



Specifications



Technical

HDMI Compliance:HDMI 2.0b

HDCP Compliance:HDCP 2.3 / 1.x

Video Bandwidth:18 Gbps

Video Resolution:Up to 4k2k@60Hz 4:4:4

Color Depth

8-bit, 10-bit, 12-bit (1080p@60Hz)

8-bit (4K2K@60Hz YUV4:4:4)

8-bit,10-bit,12-bit (4K2K@60Hz

YCbCr 4:2:2/4:2:0)



Color Space:RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0



HDMI Audio Formats

PCM 2.0, LPCM 5.1 / 7.1,

Dolby Digital, Dolby Digital plus,

Dolby TrueHD, Dolby Atmos,

DTS 5.1, DTS ES 6.1, DTS HRA,

DTS HD Master, DTS:X



ESD Protection

Human body model ±8kV (air-gap discharge) &±4kV (contact discharge)



Connection

Input 1x HDMI Type A [19-pin female]

Output 2x HDMI Type A [19-pin female]



Housing Aluminium Enclosure

Color:Silver

Dimensions:65mm[W] x 70mm[D] x 27mm[H]

Weight:83g

Power Supply:USB 5V / 500mA

Power Consumption:1.75W (Max)



Operation:

Temperature 32 - 104°F / 0 - 40°C

Storage temperature -4 - 140°F / -20 - 60°C

Relative Humidity 20 - 90% RH (no condensation)
