HDMI Audio Extractor HDMI 2.0 to Optical TOSLINK SPDIF RCA L/R 3.5mm Headphone HDMI 2.0 Audio Extractor Support 4K 60Hz YUV 4:4:4 and HDR Adapter

HDMI Audio Extractor HDMI 2.0 to Optical TOSLINK SPDIF RCA L/R 3.5mm Headphone HDMI 2.0 Audio Extractor Support 4K 60Hz YUV 4:4:4 and HDR Adapter

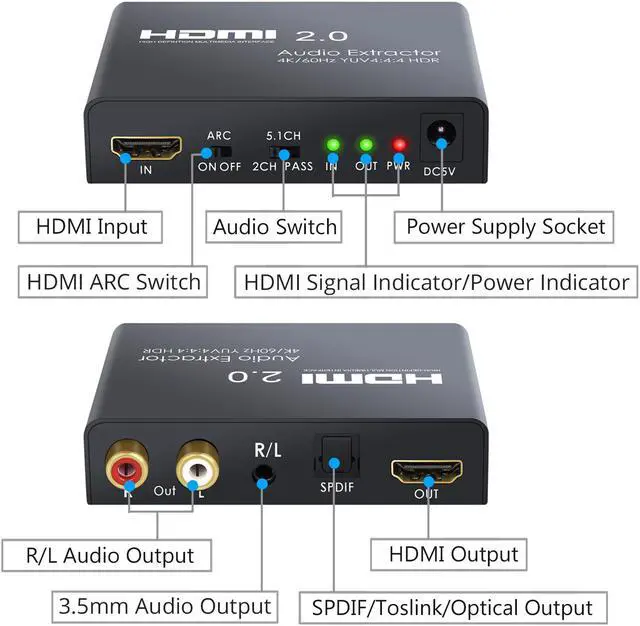

Features:

HDMI 2.0b (18Gbps), HDCP 2.2 compliant

Video resolutions up to 4K@60Hz (YUV444)

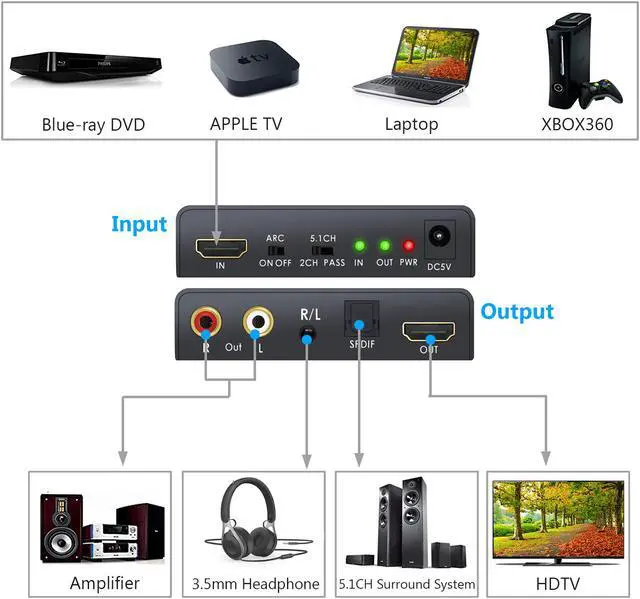

Extracts HDMI audio to multi-channel optical (SPDIF) or L/R 3.5mm headphone analog audio

Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH,Supports HDMI High Bit Rate(HBR) audio pass through

Audio sample rates up to 192kHz

10bits HDR (High Dynamic Range) pass through



Specifications:

Suppoort HDMI HDCP Version: HDCP 2.2

HDMI Input/Output Resolution: Up to 4K/60fs

Support HDMI Video Color Format: 2160P, 10/12 bits, 24/25/30Hz, 2160p, 10/12 bits, 50/60Hz

HDMI Audio Format: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/olby-AC3/DSD

SPDIF Digital Audio Formate: Dolby Digital(AC3)/DTS/LPCM

Input Output TMDS Signal: 0.5~1.5Vp-p(TTL)

Input Output DDC Signal: 5Vp-p(TTL)

DAC sampling frequency: 32~192 KHz

DAC bit rate: 16~24 Bit

RCA analog output (1KHz@0dB): 1V RMS

Signal to noise ratio @0dB(CC1R/ARM): .=90dB

Distortion degree: =0.1%

Frequency response: 20HZ~20KHz

HDMI Input Cable Distance: =3m AWG26 HDMI Standard Cable

HDMI Output Cable Distance: =3m AWG26 HDMI Standard Cable

Max Working Current: 400mA

Power Adapter Format: AC 100V-240V 50/60HZ,DC 5V/1A

Operating Temperature Range: -10~+55C

Storage Temperature Range: -20~+60C

Case Dimension: 85×60.5×20(mm)

Weight: 124g

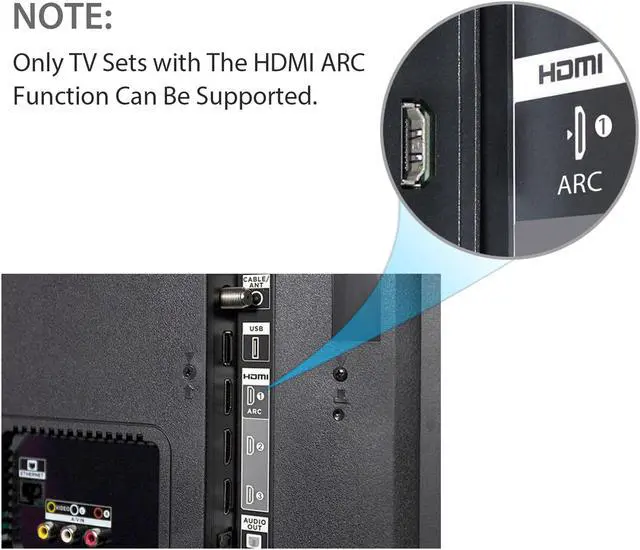

ARC Function Notes:

a. Please sure your HDTV with HDMI(ARC) Port, then connect to ARC Adapter HDMI Output Port.

KEY_TAB KEY_TAB Your TV HDMI (ARC)--->HDMI Cable--->HDMI Audio Extractor (HDMI Output Port) --->HDMI Audio Extractor Optical Output to your audio device.

b. This converter's HDMI ARC function is only available for optical port, not for 3.5mm headphone jack or RCA port.

c. Please open the ARC function on your TV and this ARC converter when you use it.



Note:

1. Not compatible with Netflix and YouTube video websites.

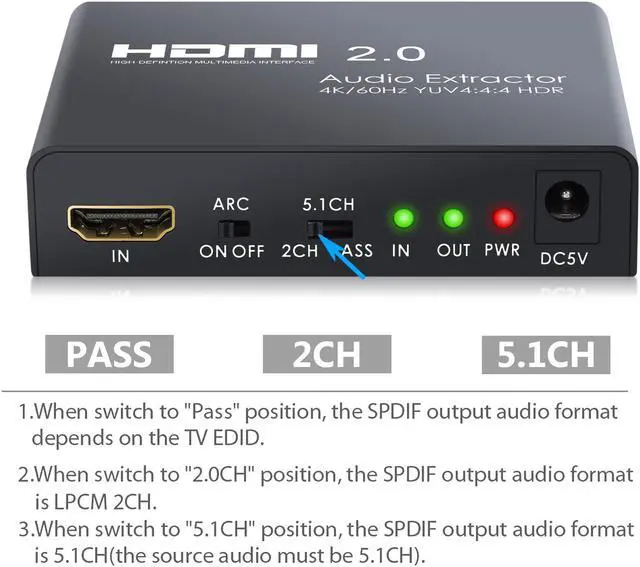

2. When select to 5.1 Channel mode, the spdif out will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio:

a). If it contains, SPDIF OUT interface will output 5.1 channel audio signal while STEREO OUT interface output nothing.

b). If it not contains, SPDIF OUT and AUDIO OUT interface are all output 2 channel audio signal.

3. This unit will only pass Dolby Digital/ DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio.

4. Can NOT be used with other converter, such as HDMI to DVI Converter.
