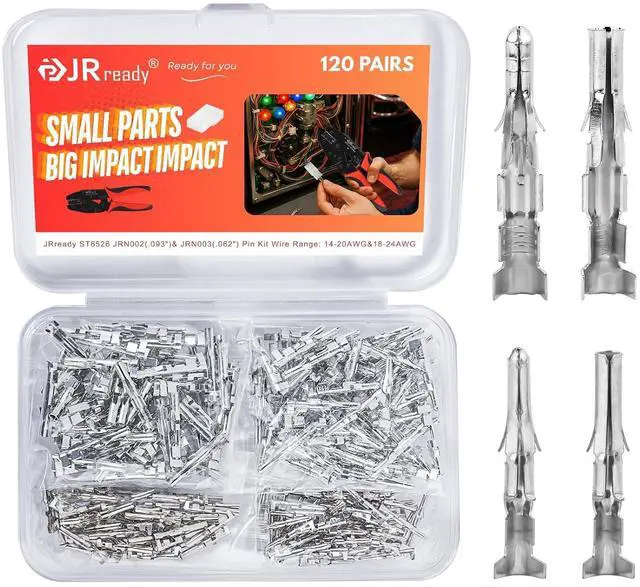

JRready 093 062 Pins Connector Kit Wire Pin Connectors Male Female Contacts 1190 1580 Series 14-20AWG 18-24AWG Crimp Terminals Pins Sockets for Molex Connectors 3.68mm 5.03mm Pitch 120 Pairs ST6526

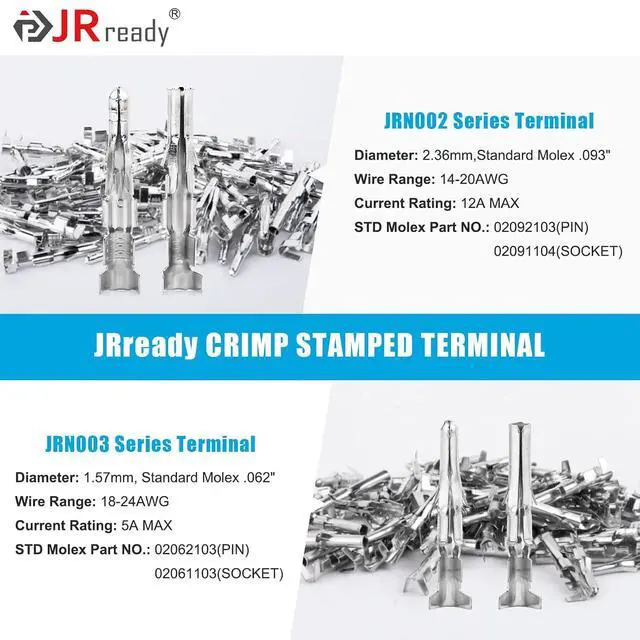

- JRN002 Contact: Made of tin-plated brasscompatible with Molex 093". Wire range 14-20AWG, rated current 12A MAX, rated voltage 250V AC, DC. Standard MOLEX pin: 02092101 / 02092103socket: 02091102 / 02091104.
- JRN003 Contact: Made of tin-plated brass compatible with Molex 062". Wire range 18-24AWG, rated current 5A MAX, rated voltage 250V AC, DC. Standard MOLEX pin: 02062103 / 02062101socket: 02061103 / 02061101.

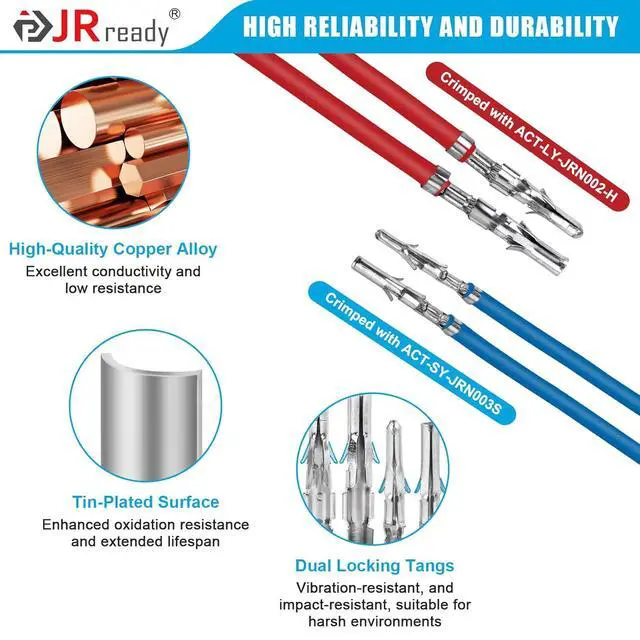

- Contact DesignDual-locking tangs of the pins help prevent backing out ensuring a strong electrical connection. Opening design of the sockets reduces the insertior force and improves the insertion and extraction durability more than 100 times.Elongated grooves design provides longer wipe lengths and increased contact area for improved long-term reliability.

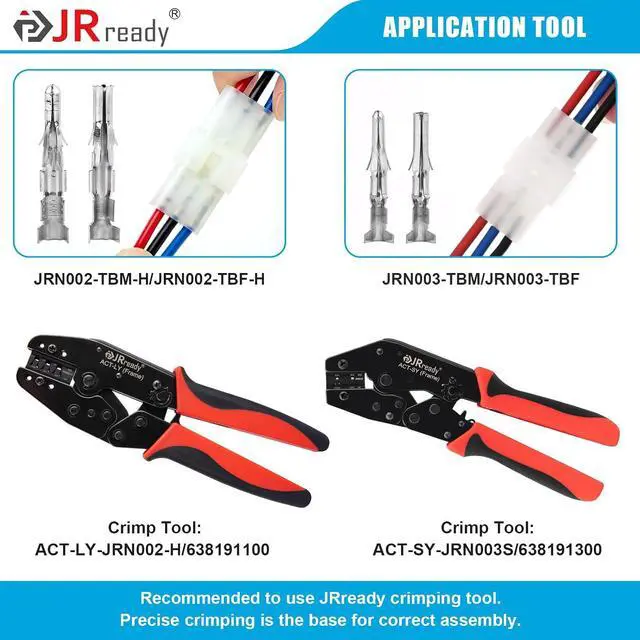

- JRready Applicable Tool: JRN002 Series Crimper: ACT-LY-JRN002-H, Pin removal tool: JRconDRK-T320360/DAP-T320360/JRDDS-T320360; JRN003 Series Crimper: ACT-SY-JRN003S, Pin removal tool: JRconDRK-T220260/DAP-T220260/JRDDS
+
+
Overview
Specs
Reviews
JRN002 Contact: Made of tin-plated brasscompatible with Molex 093". Wire range 14-20AWG, rated current 12A MAX, rated voltage 250V AC, DC. Standard MOLEX pin: 02092101 / 02092103socket: 02091102 / 02091104.
JRN003 Contact: Made of tin-plated brass compatible with Molex 062". Wire range 18-24AWG, rated current 5A MAX, rated voltage 250V AC, DC. Standard MOLEX pin: 02062103 / 02062101socket: 02061103 / 02061101.
Contact DesignDual-locking tangs of the pins help prevent backing out ensuring a strong electrical connection. Opening design of the sockets reduces the insertior force and improves the insertion and extraction durability more than 100 times.Elongated grooves design provides longer wipe lengths and increased contact area for improved long-term reliability.
JRready Applicable Tool: JRN002 Series Crimper: ACT-LY-JRN002-H, Pin removal tool: JRconDRK-T320360/DAP-T320360/JRDDS-T320360; JRN003 Series Crimper: ACT-SY-JRN003S, Pin removal tool: JRconDRK-T220260/DAP-T220260/JRDDS-T220260.
Widely Use: The crimp terminal can be applied to car, aero space, household appliances, electrical maintenance, consumer electronics, network servers, industrial automation, data computing etc
JRN003 Contact: Made of tin-plated brass compatible with Molex 062". Wire range 18-24AWG, rated current 5A MAX, rated voltage 250V AC, DC. Standard MOLEX pin: 02062103 / 02062101socket: 02061103 / 02061101.
Contact DesignDual-locking tangs of the pins help prevent backing out ensuring a strong electrical connection. Opening design of the sockets reduces the insertior force and improves the insertion and extraction durability more than 100 times.Elongated grooves design provides longer wipe lengths and increased contact area for improved long-term reliability.
JRready Applicable Tool: JRN002 Series Crimper: ACT-LY-JRN002-H, Pin removal tool: JRconDRK-T320360/DAP-T320360/JRDDS-T320360; JRN003 Series Crimper: ACT-SY-JRN003S, Pin removal tool: JRconDRK-T220260/DAP-T220260/JRDDS-T220260.
Widely Use: The crimp terminal can be applied to car, aero space, household appliances, electrical maintenance, consumer electronics, network servers, industrial automation, data computing etc
