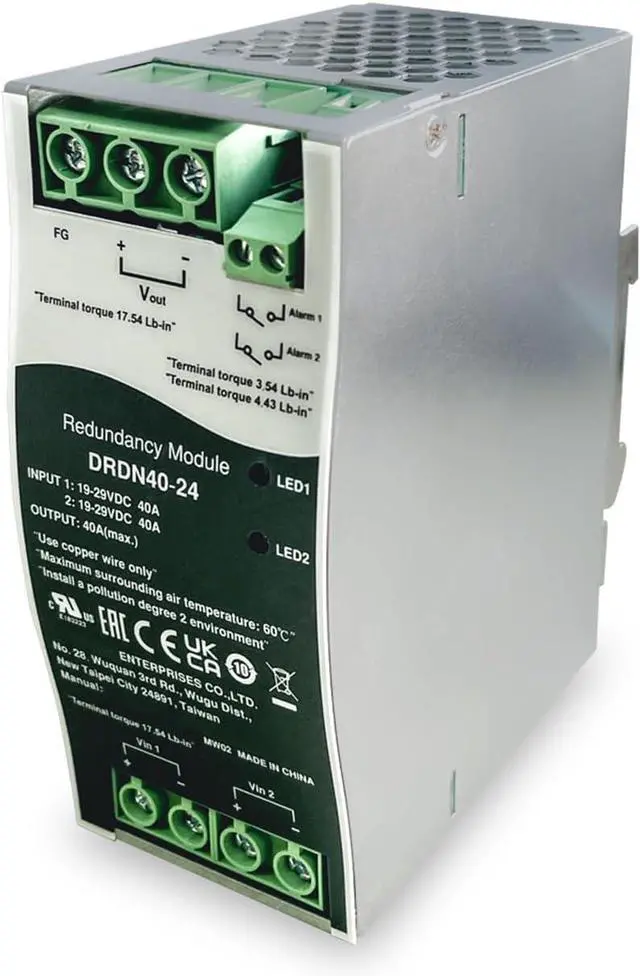

(1PC) DRDN40-24 40A DIN Rail Type Redundancy Module 24V

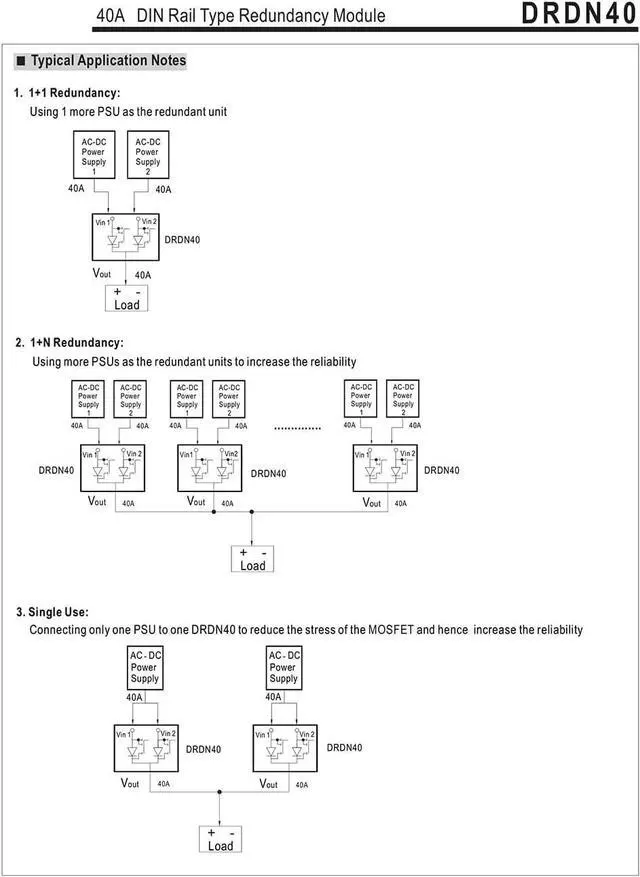

- Support 1+1 and N+1 redundancy system
- 2 channels input and 1 output
- Suitable for redundancy operation of 12V/24V/48V system
- Output current up to 40A
- 55mm slim width
+
+
Overview
Specs
Reviews

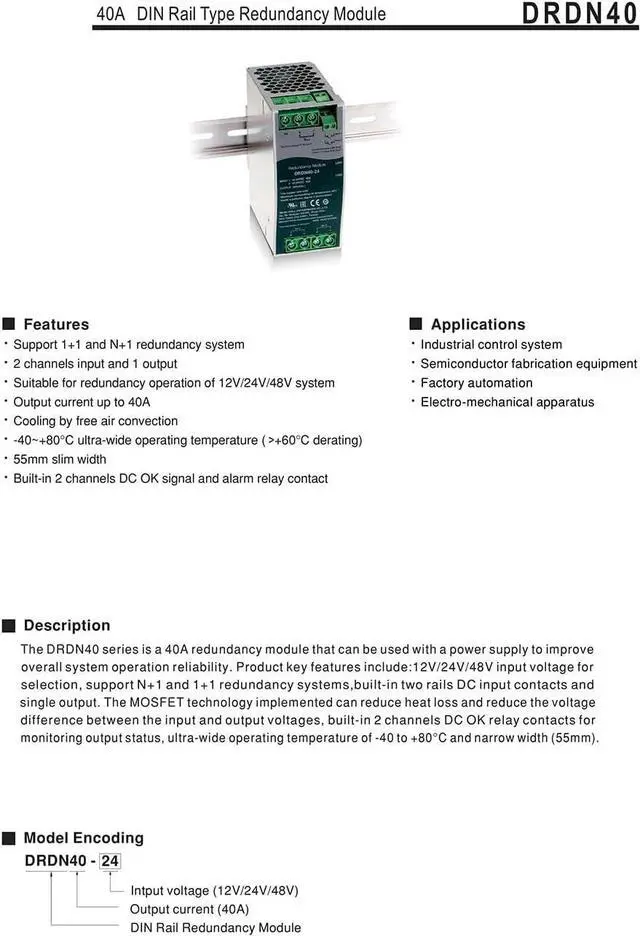

The RDN 0 series is a 0A redundancy module that can be used with a power supply to improveD 4 4 system operation reliability. Product key features include:overall:12V/24V/48V input voltage for selection, support N+1 and 1+1 redundancy systems,built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80°C and narrow width (55mm)
