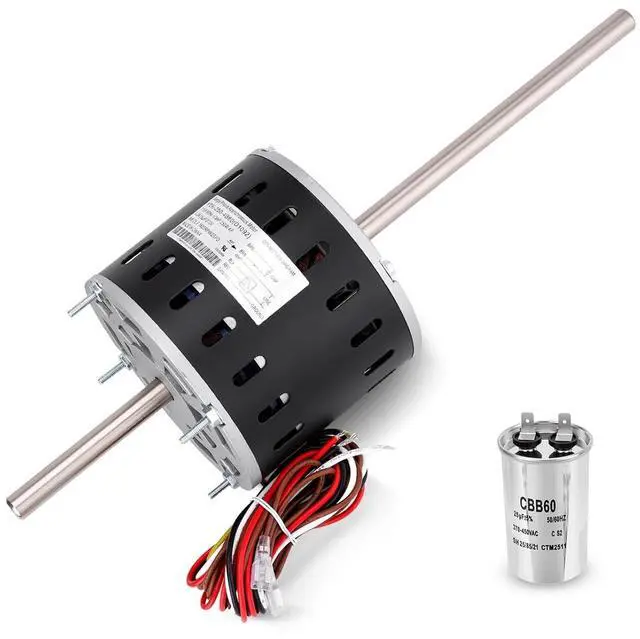

RV AC Air Conditioner Motor Compatible with Coleman Mach RV Condenser Fan Motor, 1/3HP, 115V, 1675/1080RPM, 2 Speed, Includes Capacitors, Replaces# Fasco D1092, 1468-306, 7855MVA-A11U, Y6L457D01L

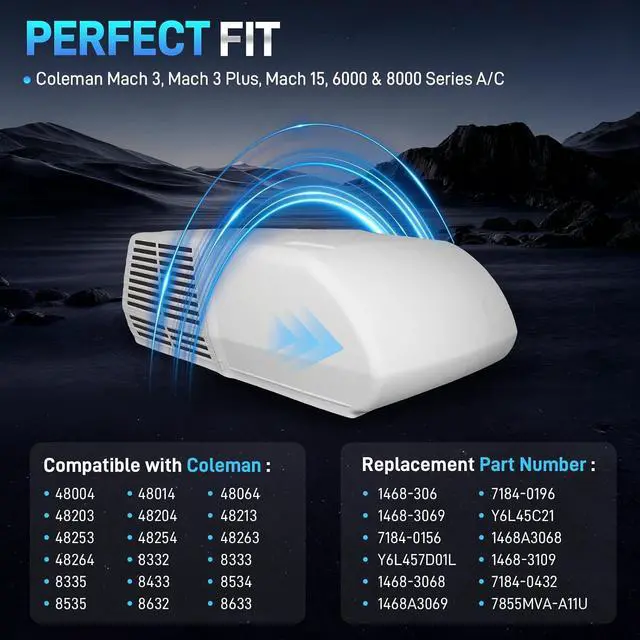

Compatible ModelsD1092 Rv Ac Motor compatible with 6000 & 8000 Series A/C Units, it's also compatible with Coleman Models: 48004, 48014, 48064, 48203, 48204, 48213, 48253, 48254, 48263, 48264, 8332, 8333, 8335, 8433, 8534, 8535, 8632, 8633, Airxcel 48254C966
Replace OE NumberCompatible with Fasco direct replacement motor part numbers: D1092, 7184-0156, 7184-0432, Y6L457D01L, 7855MVA-A11U, Y6L45C21 and compatible with Coleman Mach fan motor part numbers: 1468-306, 1468-3069, 1468-3068, 1468-3109, 7855MVA-A11U

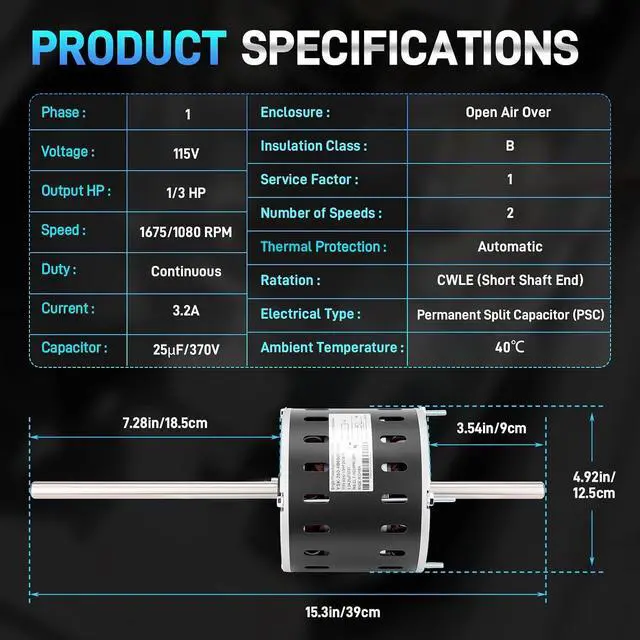

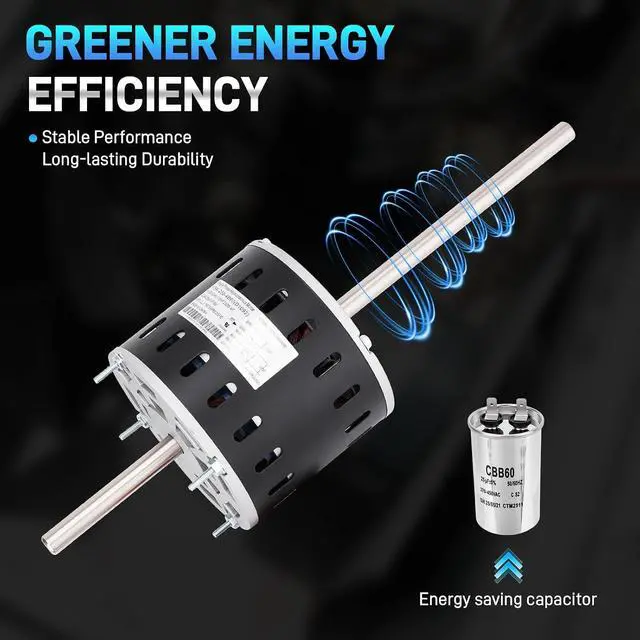

Product Specifications1/3 HP, 115 volts, 3.2 amps, 60 Hz, Class B Insulation.Features dual-speed operation modes: 1675/1080 RPM, utilizing slide bearings to ensure durability and reliability. Built-in overheat protection is included. Permanent magnet phase capacitor (PSC), capacitor 25F/370V (capacitor included).Shaft 7-15/16" x 1/2" x 3-9/16"

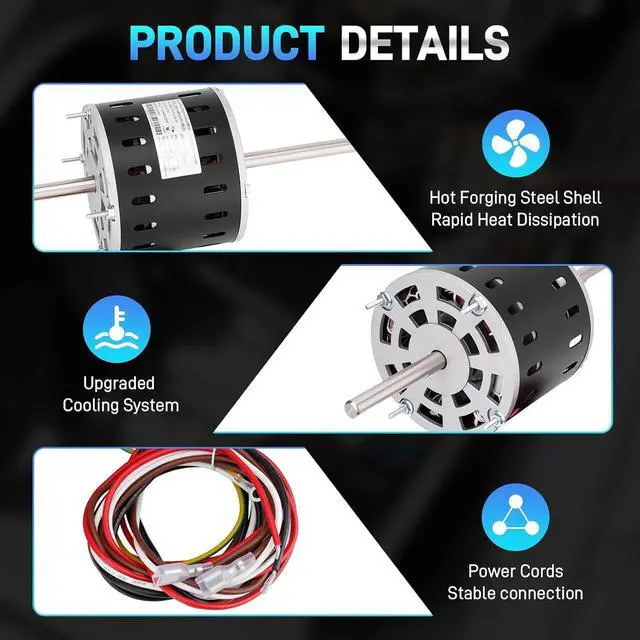

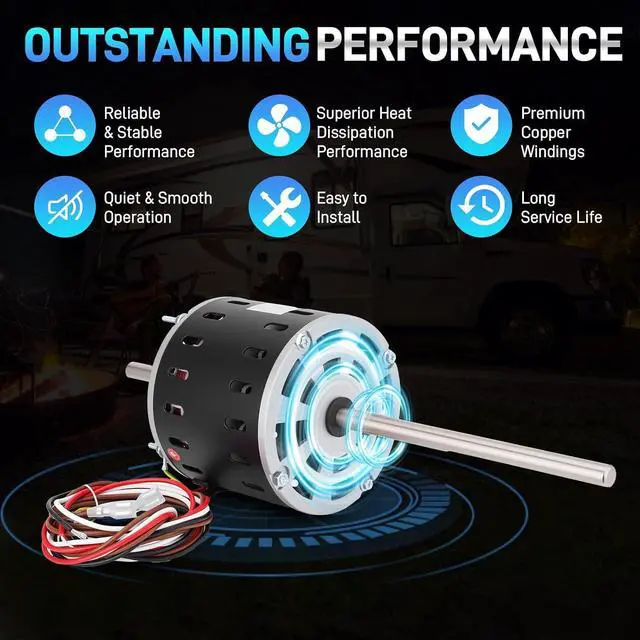

Excellent Performance The D1092 RV AC motor provides a premium condenser fan drive solution for RV AC systems. Featuring an alloy housing with anti-corrosion coating and all-copper coils, it effectively withstands long-distance vibration and offers enhanced corrosion resistance. The optimized cooling system ensures stable operation during long journeys or under extreme conditions, providing superior heat dissipation and long service life

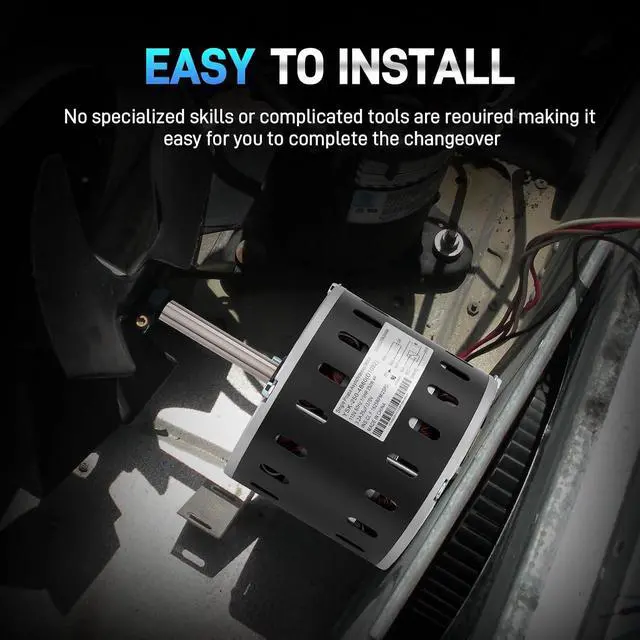

Easy InstallationManufactured in strict compliance with original equipment standards and rigorously tested, the D1092 motor includes a separate wiring diagram with color-coded connections. This enables easy replacement without the need for complex tools
