Deutsch Connector Pins and Sockets, Solid Contact Kit, Size 12 16 20 Male and Female Solid Terminals, Wire Range 12-22AWG, Compatible with Deutsch DTP, DT, DTM Series Connectors 180pcs

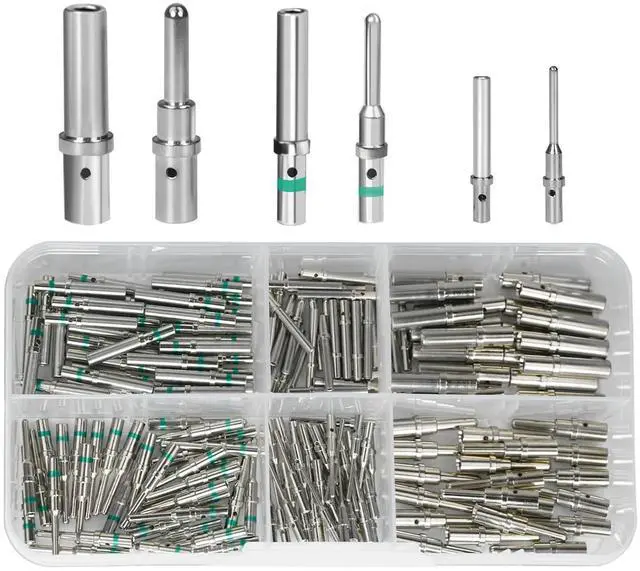

- Product List: Contains 180 pieces of Deutsch Connector Pins and Sockets Kits, 20 pairs of size 12 terminal pins and Sockets, 35 pairs of size 16 terminal pins and Sockets, 35 pairs of size 20 terminal pins and Sockets, versatility ensures the right contacts for the different applications

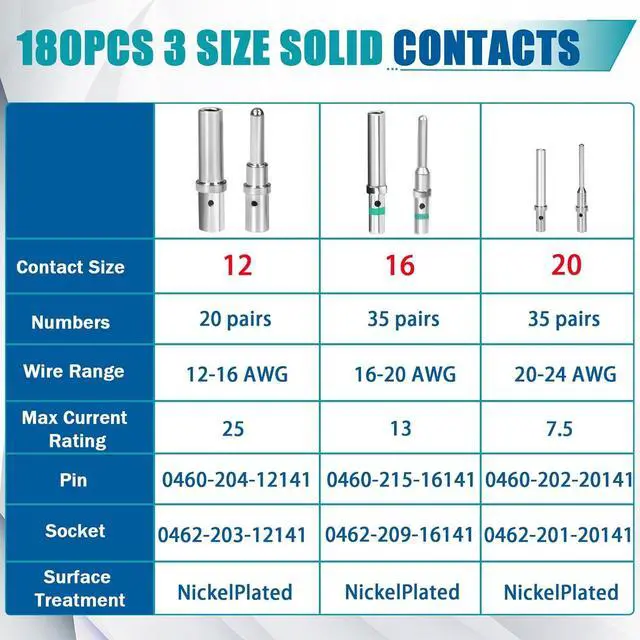

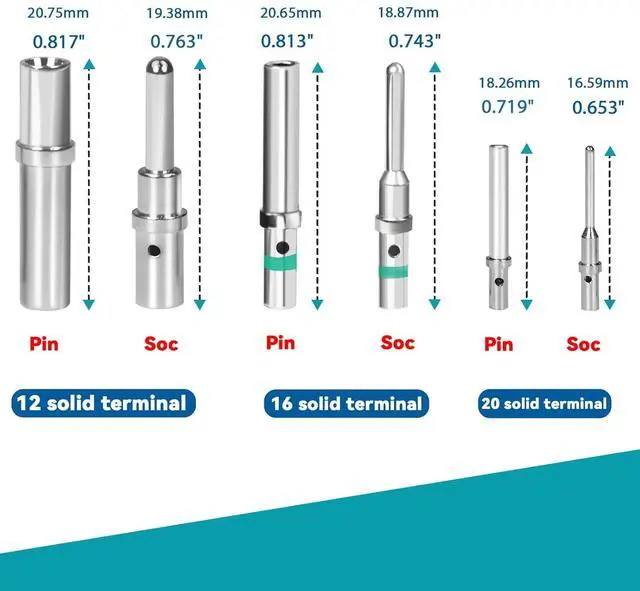

- Size 12: 20 pairs of male and female terminals, wire gauge range 12-14 AWG; pin contacts 204, Socket contacts 203, 25A maximum current rating
- Size 16: 35 pair male/female terminals, wire gauge range 14-20 AWG; pin contacts 215, Socket contacts 209, rated up to 13A
- Size 20: 35 pair of male and female terminals, wire gauge range 20-22 AWG; pin contact 202, Socket contact 201, rated up to 7.5A

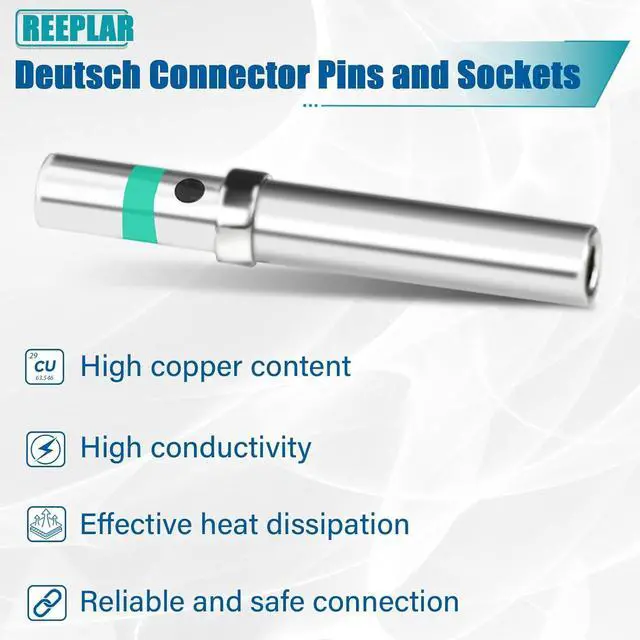

- High-quality materials: Materials are nickel-plated tin-bronze construction for greater stability and conductivity. Solid contacts are less prone to damage and have better conductivity, keeping the electrical performance stable
- Compatible Connectors: For Deutsch series connectors, DTP, DT, DTM series, HD30 ser
+
+
Overview
Specs
Reviews
Product List: Contains 180 pieces of Deutsch Connector Pins and Sockets Kits, 20 pairs of size 12 terminal pins and Sockets, 35 pairs of size 16 terminal pins and Sockets, 35 pairs of size 20 terminal pins and Sockets, versatility ensures the right contacts for the different applications
Size 12: 20 pairs of male and female terminals, wire gauge range 12-14 AWG; pin contacts 204, Socket contacts 203, 25A maximum current rating
Size 16: 35 pair male/female terminals, wire gauge range 14-20 AWG; pin contacts 215, Socket contacts 209, rated up to 13A
Size 20: 35 pair of male and female terminals, wire gauge range 20-22 AWG; pin contact 202, Socket contact 201, rated up to 7.5A
High-quality materials: Materials are nickel-plated tin-bronze construction for greater stability and conductivity. Solid contacts are less prone to damage and have better conductivity, keeping the electrical performance stable

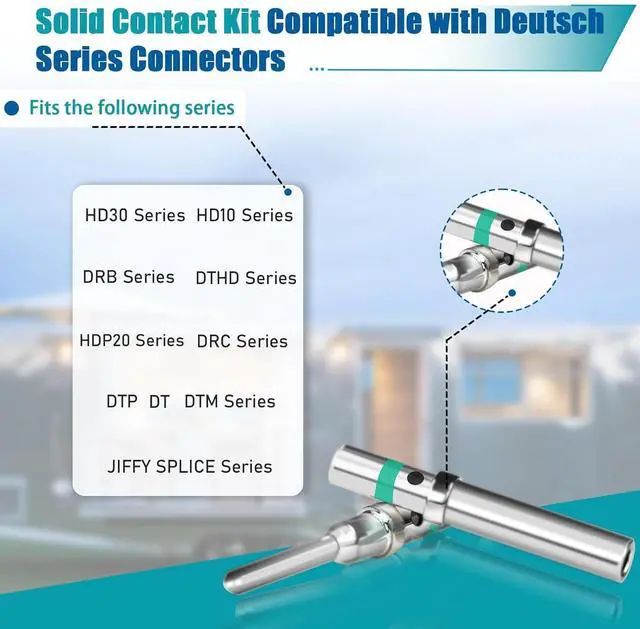

Compatible Connectors: For Deutsch series connectors, DTP, DT, DTM series, HD30 series, HDP20 series, DRC series, DRB series, HD10 series, DTHD series, JIFFY SPLICE series, etc
Size 12: 20 pairs of male and female terminals, wire gauge range 12-14 AWG; pin contacts 204, Socket contacts 203, 25A maximum current rating
Size 16: 35 pair male/female terminals, wire gauge range 14-20 AWG; pin contacts 215, Socket contacts 209, rated up to 13A
Size 20: 35 pair of male and female terminals, wire gauge range 20-22 AWG; pin contact 202, Socket contact 201, rated up to 7.5A
High-quality materials: Materials are nickel-plated tin-bronze construction for greater stability and conductivity. Solid contacts are less prone to damage and have better conductivity, keeping the electrical performance stable
Compatible Connectors: For Deutsch series connectors, DTP, DT, DTM series, HD30 series, HDP20 series, DRC series, DRB series, HD10 series, DTHD series, JIFFY SPLICE series, etc
