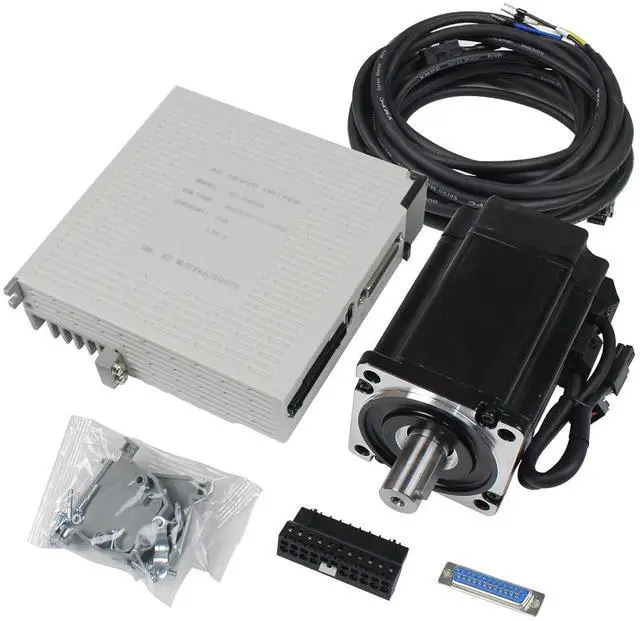

RATTMMOTOR YPMC-1000W 110V Servo Motor Kit, Servo Motor with Servo Motor Driver CNC Controller Kit for CNC Engraver Milling Machine/Robot (Without Brake)

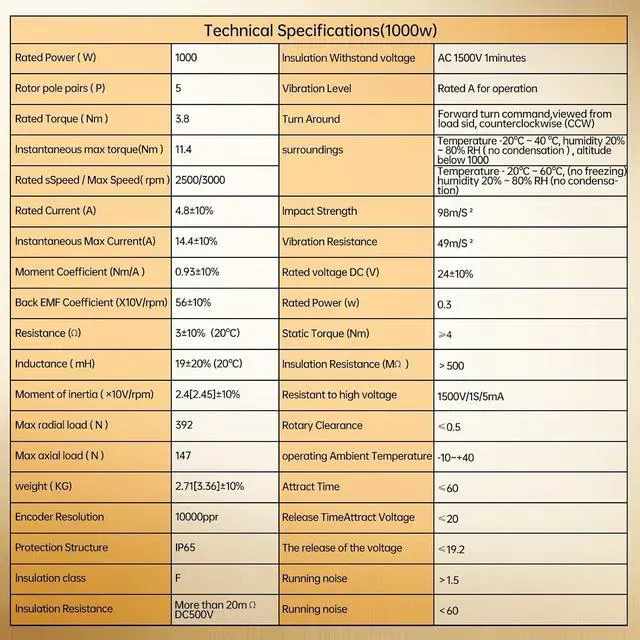

Motor parametersModel: A2M110-80SV03230; With brake: No; Power: 1000W; Number of poles: 5 pairs; Rated power supply: 110V; Rated speed: 2500r/min; Peak speed: 3000r/min; Rated torque: 3.8 N.m; Max torque: 11.4 N.m; Ender Resolution: 10000ppr; Protection structure: IP65; Impact strength: 98m/s²; Vibration resistance: 49m/s².
Triple Overload/Powerful MotorThe motors are made of high quality materials with 3 times overload capacity, built-in disturbance torque observer, extremely strong resistance to external disturbances and stable operation. The motor also has features such as: high torque, no lost step, low noise, fast response, small size, high controllability, and has been operated.

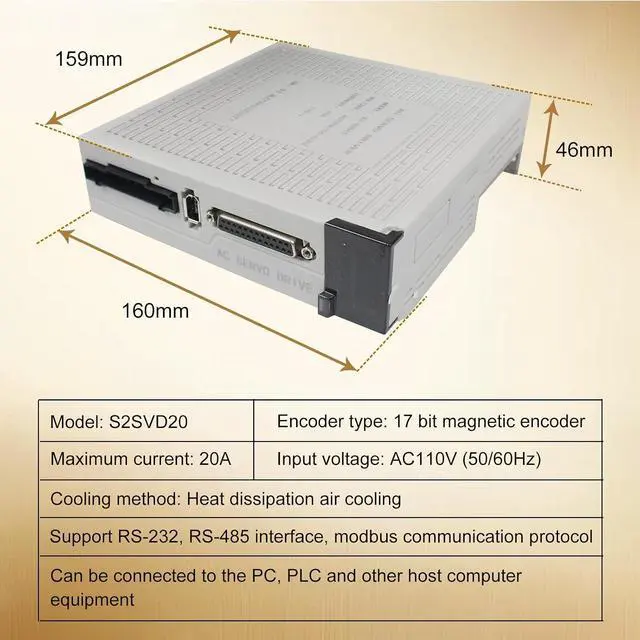

Driver ParametersModel: S2SVD20-110; Input voltage: AC110V (50/60Hz); Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder. ( Note: Controllers with CN ports need to be customized separately: support RS-232, RS-485 interface, modbus communication protocol, can be connected to the PC, PLC and other host computer equipment. )
Driver Multiple FunctionsThe driver adopts advanced algorithm, low-speed operation is more stable, at the same time, the high-performance encoder ensures the accuracy of the motor; Reserved multiple IO function interface, arbitrary combination to meet the functional needs of different occasions.
AC Servo FeaturesThree types of command pulse input, i.e. command direction and pulse input, clockwise/counterclockwise pulse input, and quadrature pulse input with 90 degree phase difference. Position control, speed control, torque control, and extension control can be converted through Modbus communication to meet common applications. The display mode can be switched between three modes: monitor mode, auxiliary mode, and user parameter mode.
Application AreasSuitable for a variety of automation equipment and instruments, such as screw machines, automatic equipment, medical equipment, semiconductor equipment, engraving equipment, measuring equipment, AGV carts, etc.
