HOMT3020 D Square Tandem Circuit Breaker Kit (1 Pack), 30/20 Amp (30A/20A) Single Pole, 120V, 10kAIC, UL Listed, Space Saving for Homeline Panel, Workshop, Garage

AUTHENTIC Tandem Circuit Breaker - This offering includes one (1) Authentic HOMT3020 Tandem Circuit Breaker from Square D. This space-saving component is a brand new Original Equipment Manufacturer (OEM) factory part, which provides two independent circuits in a single switch body. Its magnetic thermal mechanism is designed for reliable overcurrent protection, making it an ideal solution for adding circuits to a physical load center in a garage or basement without the need for a subpanel.
DUAL AMPERAGE PROTECTION - This single device functions as two separate circuits: one rated for 30 amps and another for 20 amps. This configuration is ideal for powering a workshop or garage where a dedicated 30A circuit is needed for a soldering iron or compressor and a 20A general-purpose output circuit separated from a single panel slot. It is also a popular solution for RV power applications, effectively doubling the capacity of your panel.

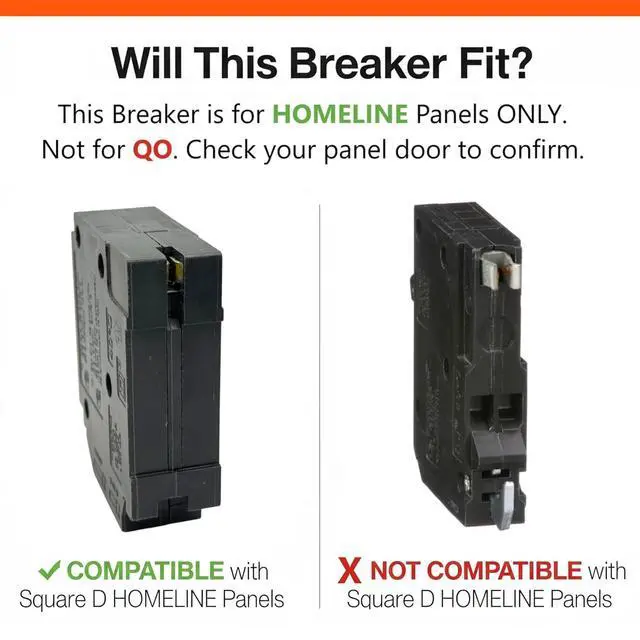

HOME LINE PANEL COMPATIBILITY - Critical Installation Note - Tandem switches are intended for use only on Square D Homeline load centers that have a panel wiring diagram that explicitly states which busbar slots will accept them. This standard 1" format switch must be installed in a designated position to function properly. Not compatible with QO series panels. Please verify your panel specifications and local electrical codes before installation to ensure complete compliance.

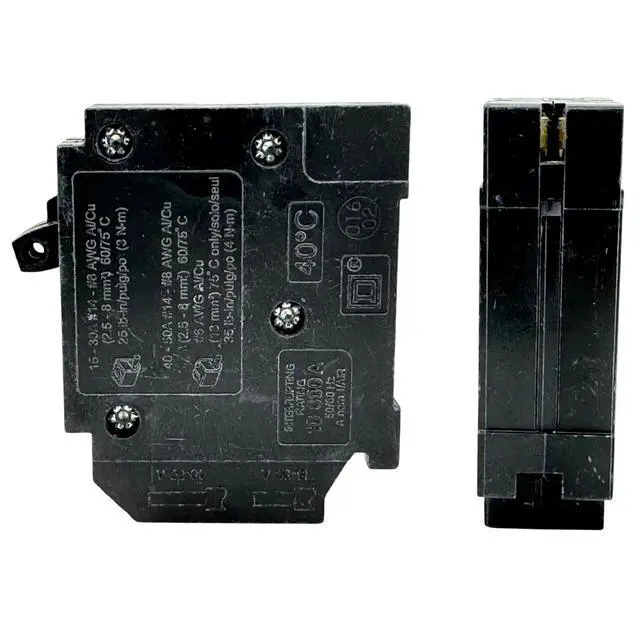

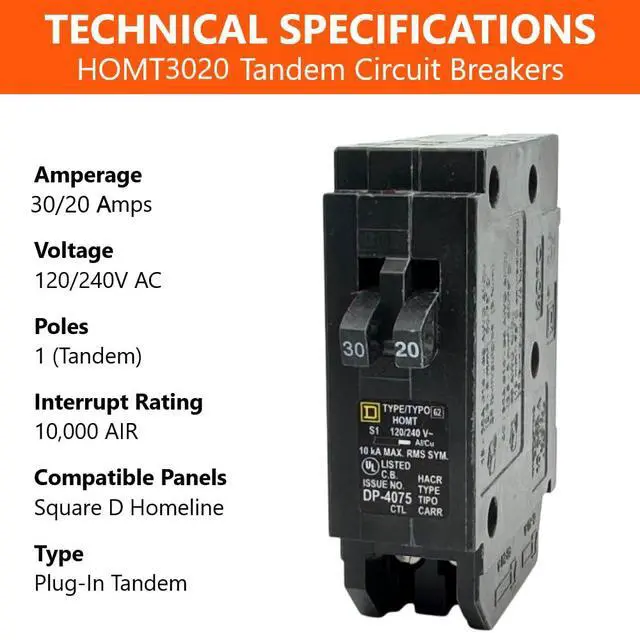

TECHNICAL SPECIFICATIONS - This circuit breaker is Underwriters Laboratories (UL) listed and ANSI certified with a 10,000 amp (10 kAIC) interrupt capacity. 30A terminal accepts #10-8 AWG (Al/Cu) wire. 20A terminal accepts #14-8 AWG (Al/Cu) wire. Terminals have a recommended tightening torque of 35 pounds to ensure a secure connection for your workshop or garage circuits.

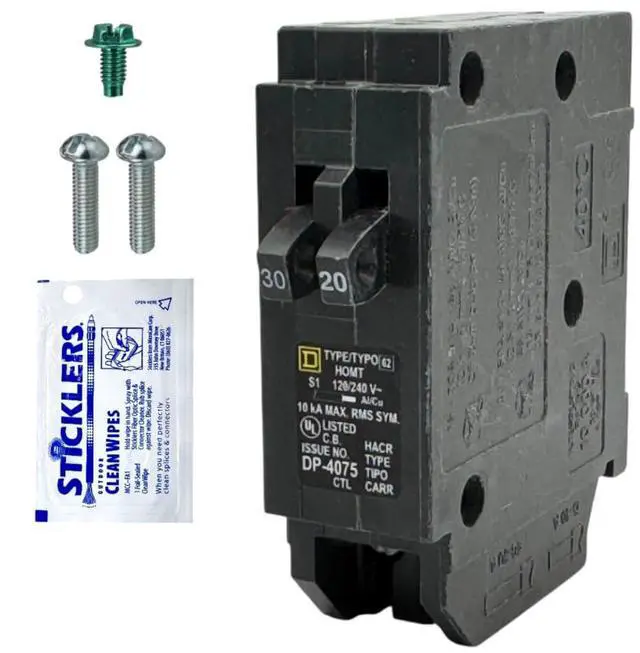

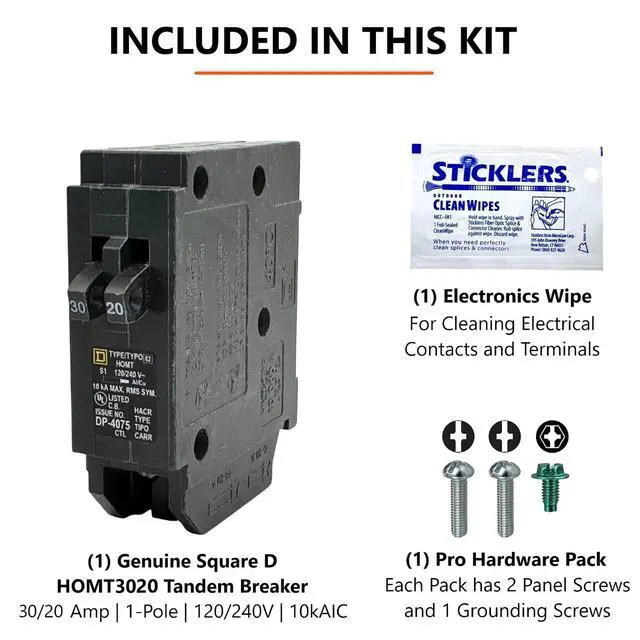

INSTALLATION PACKAGE - This is a value added kit from FalconSupply. The box includes one (1) HOMT3020 tandem switch, one (1) individually sealed professional electronic cleaning wipe for busbar preparation, and one (1) professional hardware package providing two galvanized steel combination drive panel cover machine screws and one green hex head grounding machine screw.
