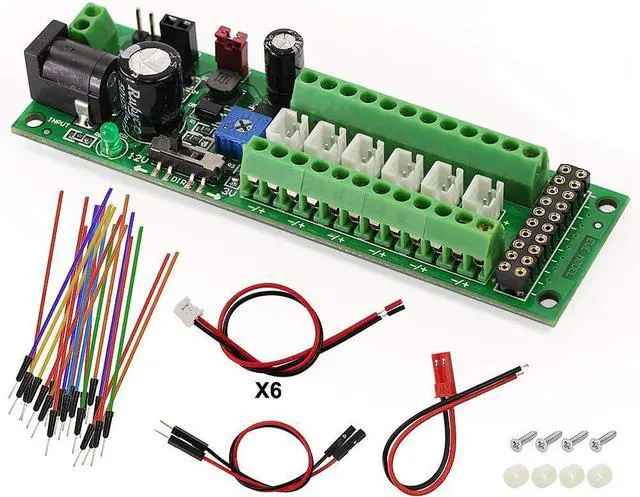

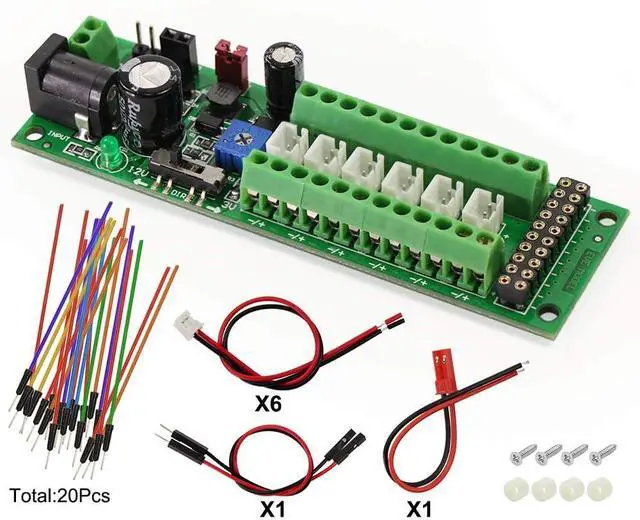

Evemodel PCB012 Power Distribution Board Self-Adapt Distributor HO N O LED Street Light Hub DC AC Voltage Train Power Control

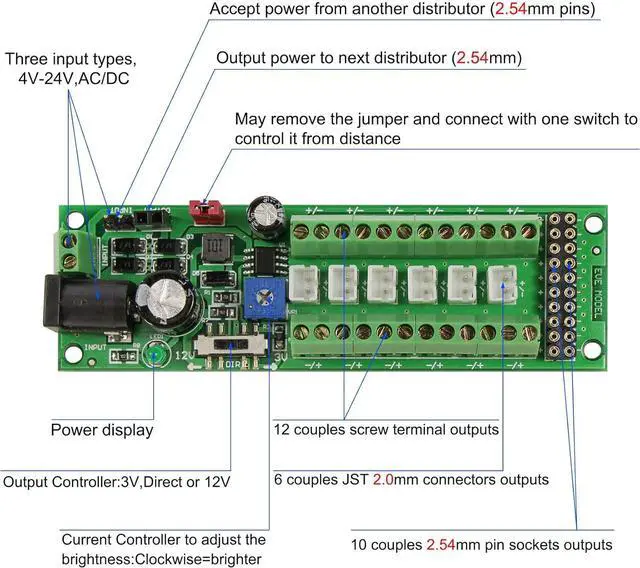

You can select any type of power input, 4V to 24V, AC or DC. There is no limit on the input current because there is an output current controller that can adapt the output current.

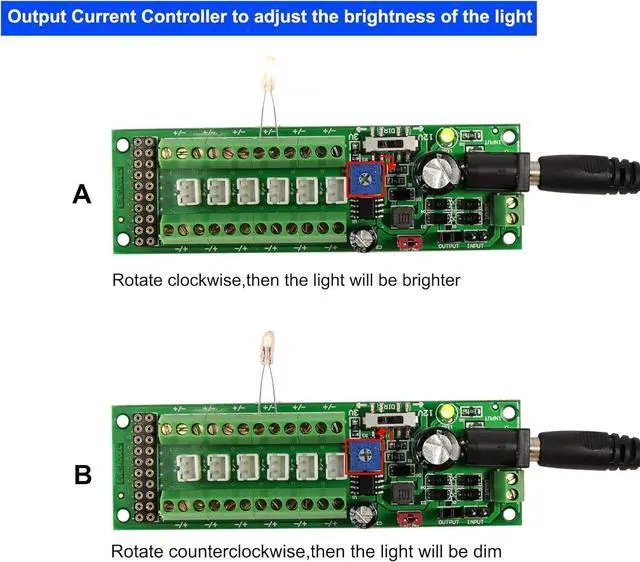

With dimmer control for LED lights and can adjust the brightness of the light. (Clockwise = brighter)

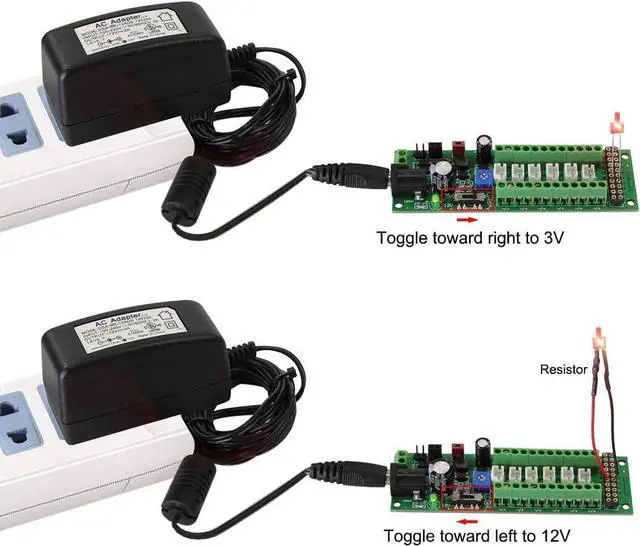

Output voltage controller: controller at 3V, the output is stable 3V; controller in DIR, the output is close to the input; controller at 12V, the output is stable 12V.

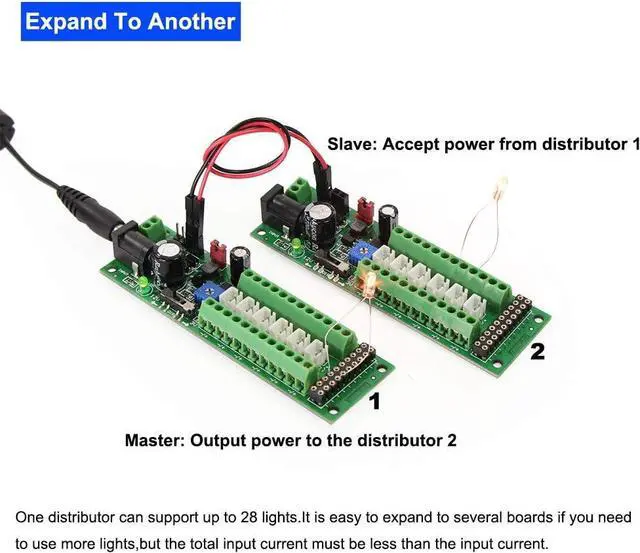

One distributor can support up to 28 lights. It is easy to expand to multiple plates if you need to use more light. And please support the lights that need the same current and voltage in a distributor. Do not mix the lights with different operating currents and voltage in the same distributor. You can prepare another power distribution board to use as expansion.
The total output current must be less than the input current. For example, normally one LED light needs 20mAh, a 1000mA transformer can support 50 LED lights in total, but it will only support 10 100mA bulbs.
