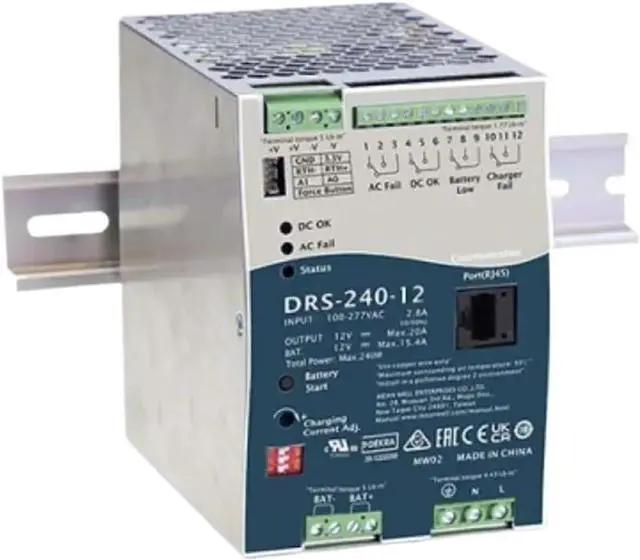

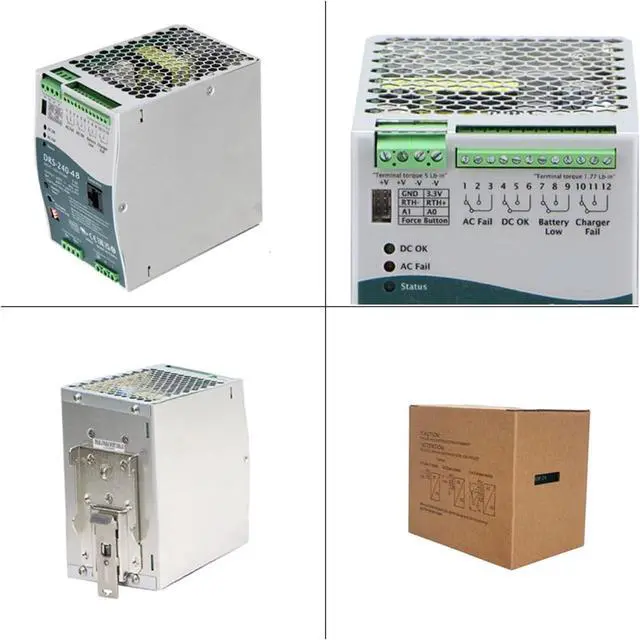

DRS-240 Series 240w AC DC 12v 20a 24v 10a 36v 48v 5a All in One Security Power Supply with DC Battery Charger
Limited time offer, ends 07/13 By Tech Frontier Electronics
- DC output voltage adjustable
- Protections: Short circuit / Overload / Over voltage
- Built-in constant current limiting circuit
- Cooling by free air convection (working temperature:-30-+70°C)
- LED indicator for power on
+
+
Overview
Specs
Reviews
Features
Universal input 90-305VAC (277VAC available)
All-in-one function with Power supply, DC-UPS, battery
chargerand status monitoring in ONE compact unit
Signal and alarms design meet UL2524, NFPA 1221, BS
EN/EN54-4and GB17945 requirement, with adjustable parameters configurableby
communication interface

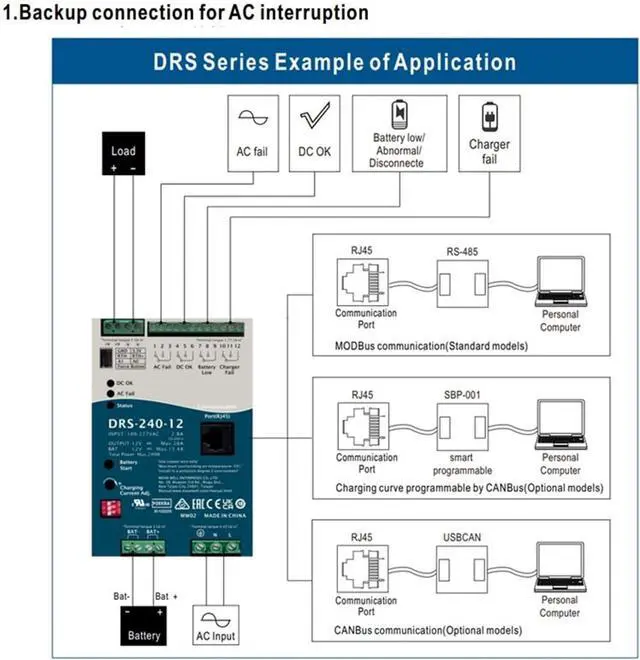

Form C relay contacts and LED indicators for AC Fail, Battery
Low, Charger Fail, and DC-OK
Load-dependent high speed battery charging
Built-in MODBus protocol, CANBus optional
Protections: Short circuit /Overload /Over voltage /Over
temperature(auto derating) /Battery reverse polarity (No damage) /Battery cut off
Battery low protection /Battery reverse polarity protection
-30 ~+70 wide operating temperature
Cooling by free air convection

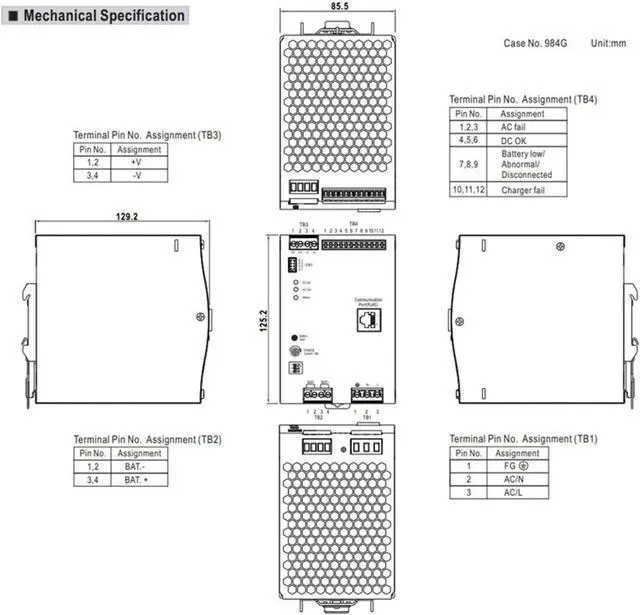

Can be installed on DIN rail TS-35/7.5 or 15

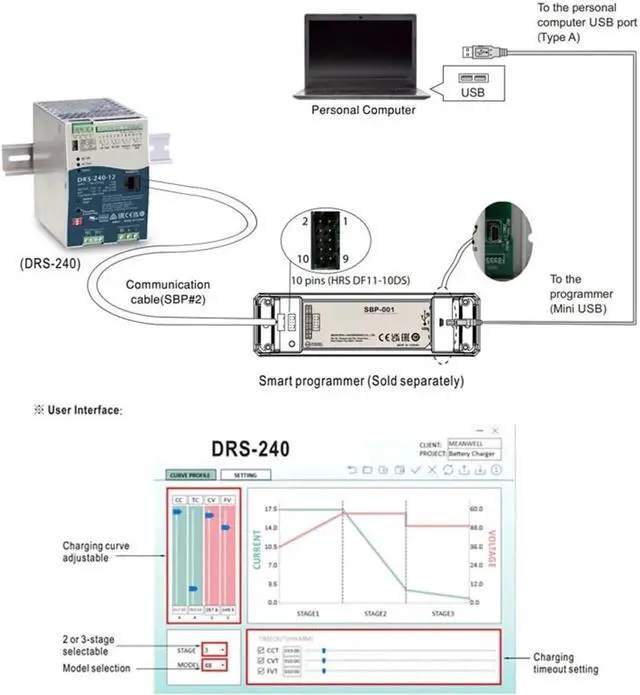

Charging curve can be set with SBP-001
2 or 3-stage selectable by DIP S.W
Suitable for lead acid and lithium-ion batteries
