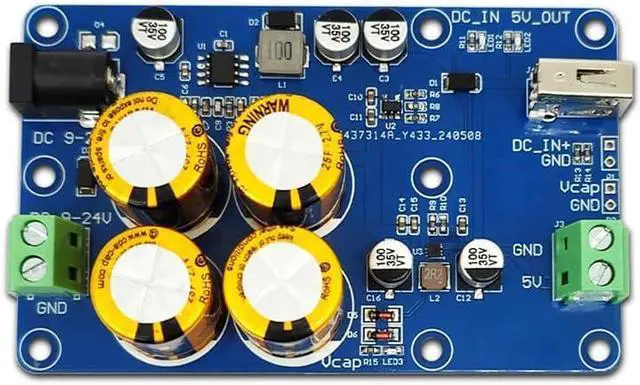

Btkigl DC9-24V Input 5V 3A Output Uninterruptible Power Supply Board Power-off Preservation UPS Voltage Protection for Raspberry Pi (4S)
Limited time offer, ends 02/10 By Tech Frontier Electronics
- Designed for high reliability applications, it quickly switches to ultracapacitor discharge when an external power supply unexpectedly fails. It can provide 10-60 Second power failure duration and output external power failure signal, which is sufficient for on-site data storage.
- Specifications: Power input: 9~24V DC (5.5*2.1mm DC power socket or KF128 terminal). Power output: 5V DC (USB2.0 or KF128 terminal), maximum current 5V 3A. Supercapacitor: 25F 2 series. The charging current is limited to 1.4A, and the capacitor is full for about 3minute.
- Product size 90*56mm. Positioning hole: 3.5mm. Discharge current: 5V3A (continuous) when connected to the external power supply, only the supercapacitor output 5V3A (within 10 Second ). Power failure detection: 2.54 mm x 2p, 3V indicates external power supply, 0V indicates external power supply failure.
- Package Includes: 1 Power Supply Module.
- Note: Due to the different monitor and light effect, the actual color of the item might be slig
+
+
Overview
Specs
Reviews
Specifications:
Power input: 9~24V DC (5.5*2.1mm DC power socket or KF128 terminal).
Power output: 5V DC (USB2.0 or KF128 terminal), maximum current 5V 3A.
Supercapacitor: 25F 2 series.
The charging current is limited to 1.4A, and the capacitor is full for about 3minute.

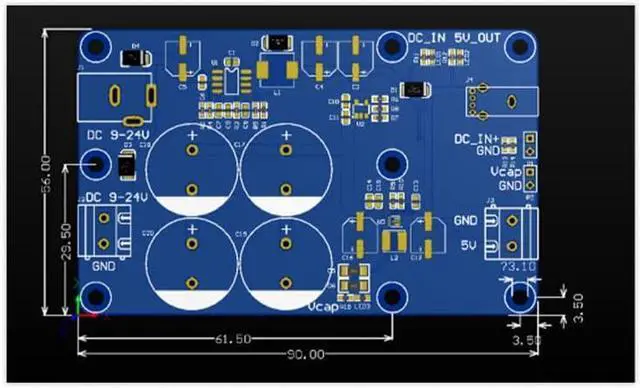

Product size 90*56mm. Positioning hole: 3.5mm.
Discharge current: 5V3A (continuous) when connected to the external power supply, only the supercapacitor output 5V3A (within 10 Second ).
Power failure detection: 2.54 mm x 2p, 3V indicates external power supply, 0V indicates external power supply failure.
Package Includes: 1 Power Supply Module.
Power input: 9~24V DC (5.5*2.1mm DC power socket or KF128 terminal).
Power output: 5V DC (USB2.0 or KF128 terminal), maximum current 5V 3A.
Supercapacitor: 25F 2 series.
The charging current is limited to 1.4A, and the capacitor is full for about 3minute.
Product size 90*56mm. Positioning hole: 3.5mm.
Discharge current: 5V3A (continuous) when connected to the external power supply, only the supercapacitor output 5V3A (within 10 Second ).
Power failure detection: 2.54 mm x 2p, 3V indicates external power supply, 0V indicates external power supply failure.
Package Includes: 1 Power Supply Module.
