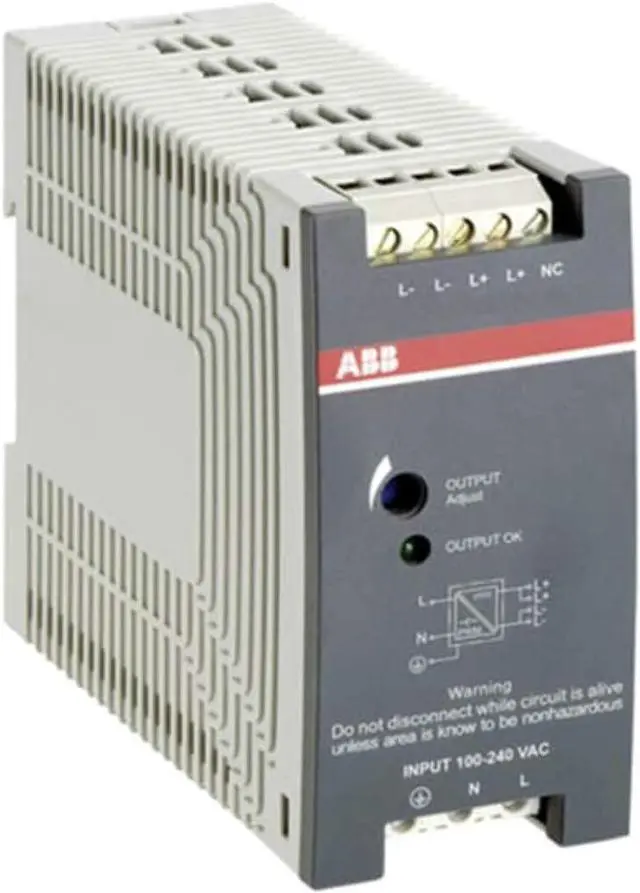

ABB CPE24/2.5 DIN Rail Power Supply 24V DC Power Supply at 2.5A (60W) Wide Input 85264VAC / 90375V DC Adjustable 2428V Output 40.5mm Width
- SWITCHMODE DC POWER SUPPLY WITH GLOBAL INPUT RANGE The CPE24/2.5 power supply accepts universal input voltages from 85264VAC or 90375VDC, delivering reliable 24V DC output at 2.5A (60W) for versatile industrial & automation applications.
- ADJUSTABLE POWER SUPPLY Equipped with a front-panel potentiometer, the output voltage is adjustable between 24V and 28V DC to compensate for voltage drop. The unit supports parallel operation for redundancy using the CPRUD module.
- SIGNAL OUTPUT AND LED INDICATOR FOR EASY MONITORING A transistor-based DC OK signal output and green LED indicator provide visual and control feedback, allowing system integration and remote diagnostics.
- COMPACT DESIGN, EASY INSTALLATION This 24V power supply mounts on TH35 DIN rail with a slim 40.5mm width. It offers IP20-rated screw-clamp terminals, convection cooling, built-in input protection, and operating range from 40°C to +70°C.
- ABB: RELIABLE DIN RAIL POWER SUPPLY The ABB CPE series combine
+
+
Overview
Specs
Reviews
SWITCHMODE DC POWER SUPPLY WITH GLOBAL INPUT RANGE The CPE24/2.5 power supply accepts universal input voltages from 85264VAC or 90375VDC, delivering reliable 24V DC output at 2.5A (60W) for versatile industrial & automation applications.
ADJUSTABLE POWER SUPPLY Equipped with a front-panel potentiometer, the output voltage is adjustable between 24V and 28V DC to compensate for voltage drop. The unit supports parallel operation for redundancy using the CPRUD module.
SIGNAL OUTPUT AND LED INDICATOR FOR EASY MONITORING A transistor-based DC OK signal output and green LED indicator provide visual and control feedback, allowing system integration and remote diagnostics.
COMPACT DESIGN, EASY INSTALLATION This 24V power supply mounts on TH35 DIN rail with a slim 40.5mm width. It offers IP20-rated screw-clamp terminals, convection cooling, built-in input protection, and operating range from 40°C to +70°C.
ABB: RELIABLE DIN RAIL POWER SUPPLY The ABB CPE series combines compact design with rugged reliability. All units meet international safety standards, support worldwide input, and deliver efficient performance for extended industrial use.
ADJUSTABLE POWER SUPPLY Equipped with a front-panel potentiometer, the output voltage is adjustable between 24V and 28V DC to compensate for voltage drop. The unit supports parallel operation for redundancy using the CPRUD module.
SIGNAL OUTPUT AND LED INDICATOR FOR EASY MONITORING A transistor-based DC OK signal output and green LED indicator provide visual and control feedback, allowing system integration and remote diagnostics.
COMPACT DESIGN, EASY INSTALLATION This 24V power supply mounts on TH35 DIN rail with a slim 40.5mm width. It offers IP20-rated screw-clamp terminals, convection cooling, built-in input protection, and operating range from 40°C to +70°C.
ABB: RELIABLE DIN RAIL POWER SUPPLY The ABB CPE series combines compact design with rugged reliability. All units meet international safety standards, support worldwide input, and deliver efficient performance for extended industrial use.
