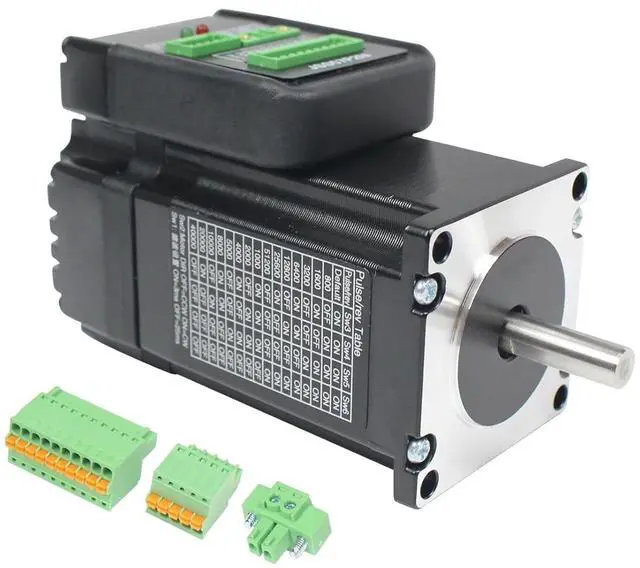

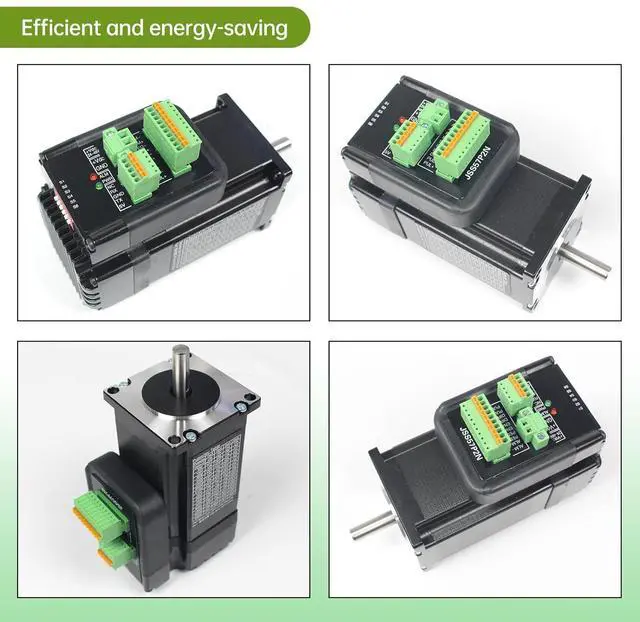

CNCTOPBAOS JSS57P2N Nema23 2N.m Closed Loop Stepper Motor Integrated Digital Hybrid Servo Drive System 24-48V DC RS232 with 1000 Encoder line for Robots,Cutting,Marking,CNC Router Engraving Machine

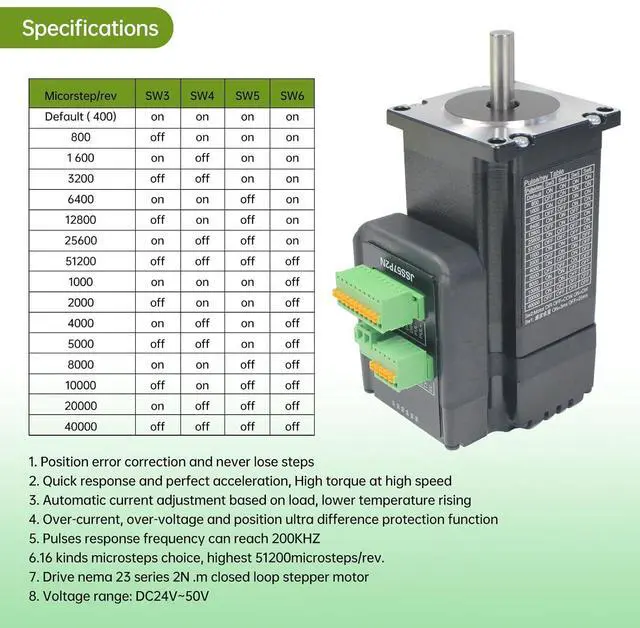

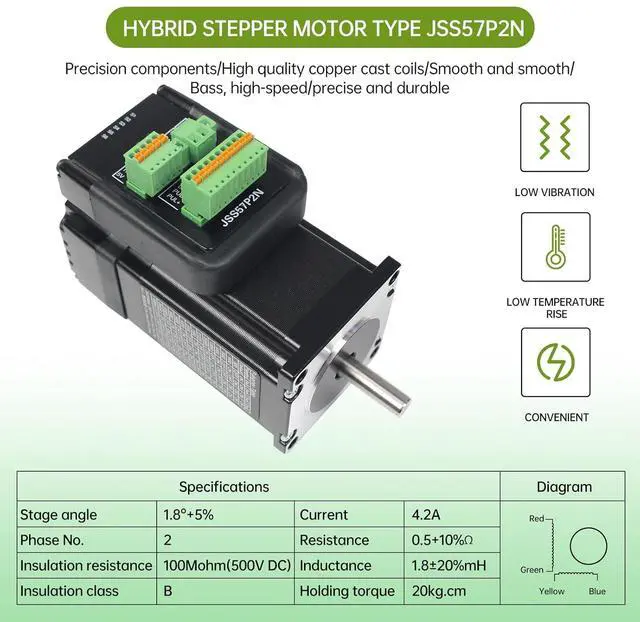

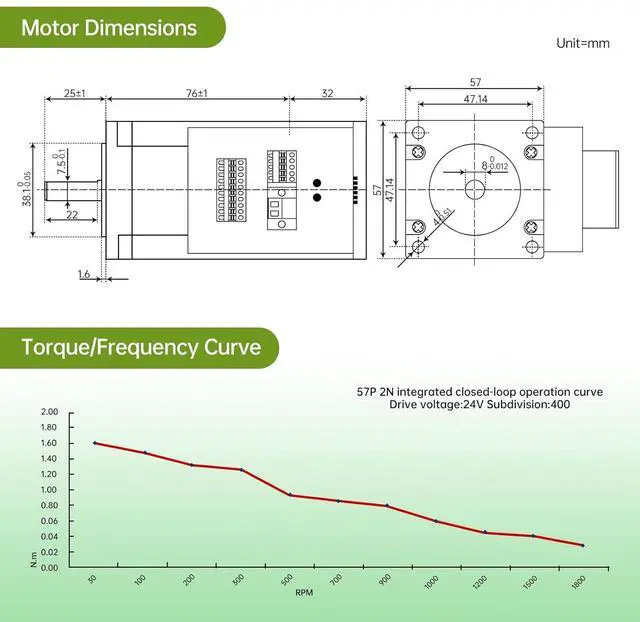

- Model:JSS57P2N; Specifications: Type:Hybrid; Encoder line number:1000; Motor length:57x57x76mm;Shaft Diameter:8mm; Total length:107mm; Lead wire: 4pcs; Support DC Power Supply:DC24-48V,recommended DC36V; Current:4.2A

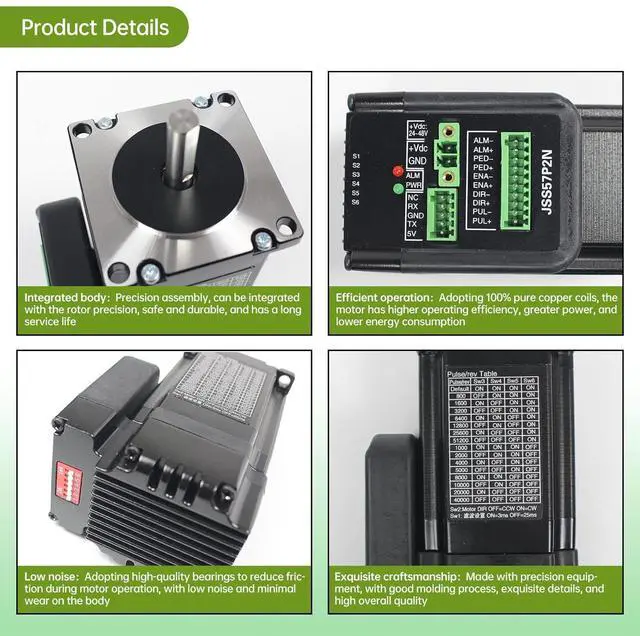

- High Precision: It is a new motor-driven integrated hybrid servo drive system with communication function.Using a new generation of 32-bit DSP control and closed-loop control, it can prevent out-of-step and ensure the accuracy of the product
- High speed torque: high-speed torque attenuation is much lower than conventional open-loop drives, which can greatly improve the high speed performance and torque of stepper motors.Support modbus RTU protocol on RS232, position and speed control controlled by communication
- High Hardness: The motor is made of metal with high hardness, which is sturdy and durable. The matte texture of the side wall can increase friction
- Widely used: Suitable for robots, textile machinery, special industrial sewing machines, wire stripping machines, marking machines, cutting machines, plotters, CNC router, milling machine, engraving machines etc
+
+
Overview
Specs
Reviews
Model:JSS57P2N; Specifications: Type:Hybrid; Encoder line number:1000; Motor length:57x57x76mm;Shaft Diameter:8mm; Total length:107mm; Lead wire: 4pcs; Support DC Power Supply:DC24-48V,recommended DC36V; Current:4.2A
High Precision: It is a new motor-driven integrated hybrid servo drive system with communication function.Using a new generation of 32-bit DSP control and closed-loop control, it can prevent out-of-step and ensure the accuracy of the product
High speed torque: high-speed torque attenuation is much lower than conventional open-loop drives, which can greatly improve the high speed performance and torque of stepper motors.Support modbus RTU protocol on RS232, position and speed control controlled by communication
High Hardness: The motor is made of metal with high hardness, which is sturdy and durable. The matte texture of the side wall can increase friction
Widely used: Suitable for robots, textile machinery, special industrial sewing machines, wire stripping machines, marking machines, cutting machines, plotters, CNC router, milling machine, engraving machines etc
High Precision: It is a new motor-driven integrated hybrid servo drive system with communication function.Using a new generation of 32-bit DSP control and closed-loop control, it can prevent out-of-step and ensure the accuracy of the product
High speed torque: high-speed torque attenuation is much lower than conventional open-loop drives, which can greatly improve the high speed performance and torque of stepper motors.Support modbus RTU protocol on RS232, position and speed control controlled by communication
High Hardness: The motor is made of metal with high hardness, which is sturdy and durable. The matte texture of the side wall can increase friction
Widely used: Suitable for robots, textile machinery, special industrial sewing machines, wire stripping machines, marking machines, cutting machines, plotters, CNC router, milling machine, engraving machines etc
