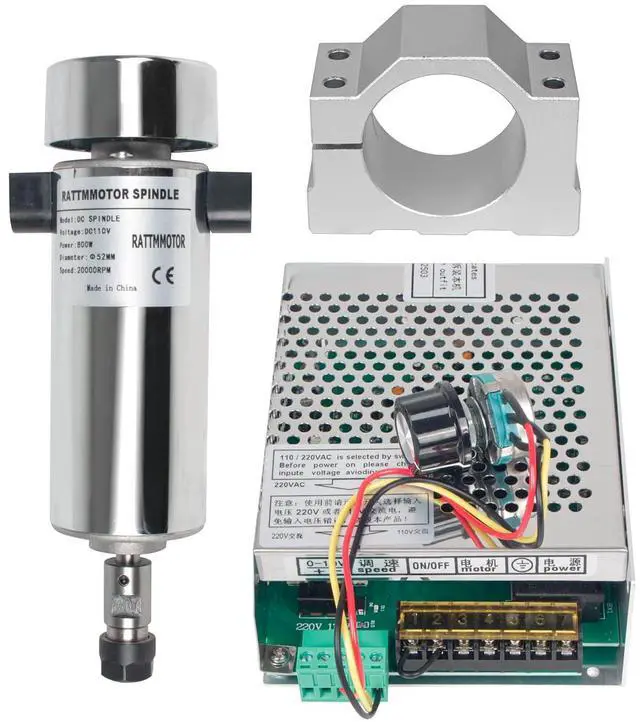

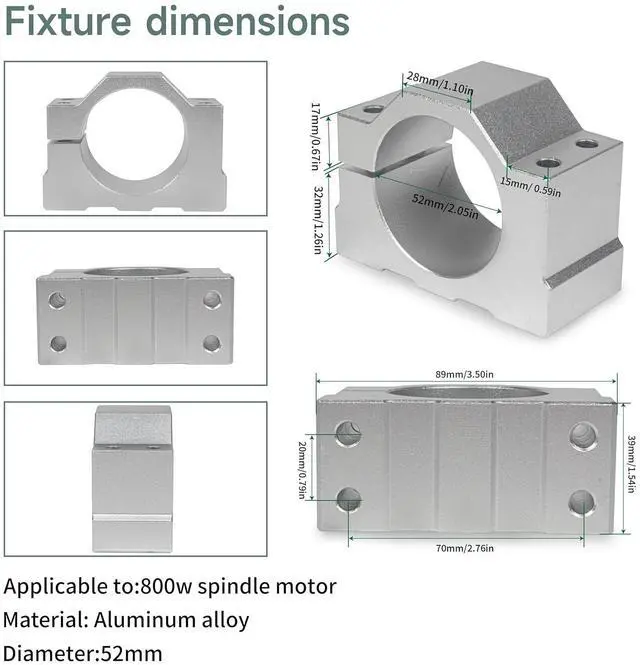

RATTMMOTOR 800W Spindle Motor Kit, 0.8KW 110V ER11 20000RPM 0.79NM Air Cooled DC Spindle Motor+Mach3 Fuction Motor Speed Controller Power Supply Converter AC110V/220V+52mm Mount Clamp for CNC Machine

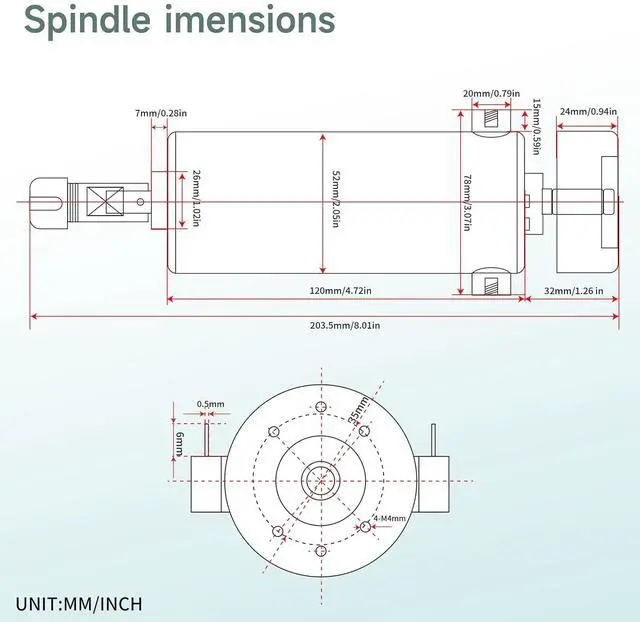

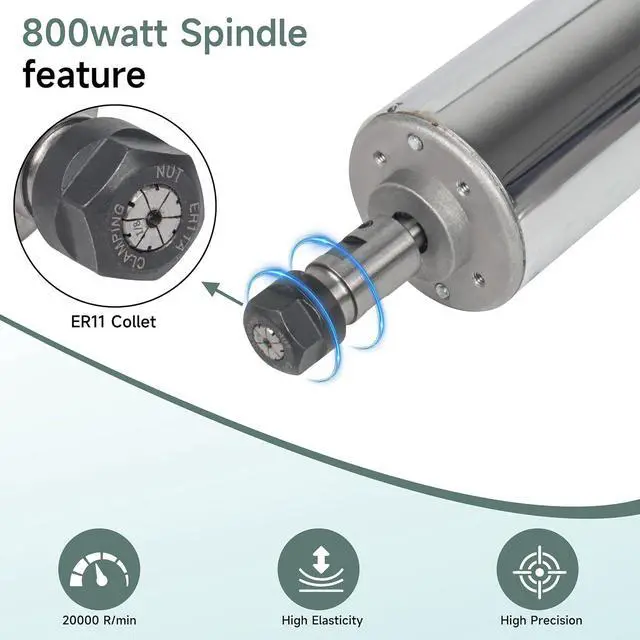

- Air Cooled SpindlePower: 800W; Voltage: 110V; Idling Speed: 5000-20000r/min; Torque0.79NM; Diameter: 52mm.

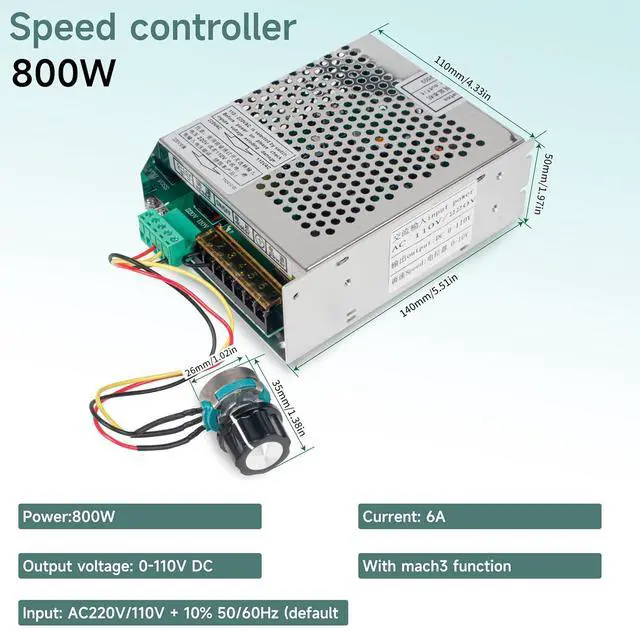

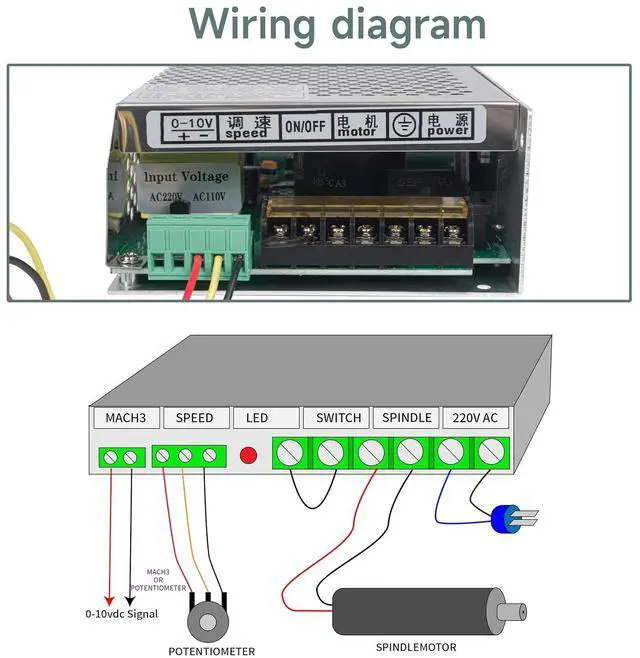

- Speed Controller Power :800W; Input Voltage: AC100-AC220V±10% Global voltage 50/60Hz; Current Limit: 6A; Wiring: Terminal type (Convenient and fast); Support Mach3 Fuction.
- AdvantagesThis power regulator can adjust 110 or 220v according to customers' needs. Adopt pulse width technology to make the speed more stable, and the speed is high under low speed.
- FeaturesWith overcurrent protection cut-off device to make performance more reliable; With a soft start device to eliminate motor starting current is too large.
- NoteThis motor has quiet operation, small volume and high speed, and the rear end of the motor is reinforced with a cooling fan, which can be safely worked for a long time!
+
+
Overview
Specs
Reviews
Air Cooled SpindlePower: 800W; Voltage: 110V; Idling Speed: 5000-20000r/min; Torque0.79NM; Diameter: 52mm.
Speed Controller Power :800W; Input Voltage: AC100-AC220V±10% Global voltage 50/60Hz; Current Limit: 6A; Wiring: Terminal type (Convenient and fast); Support Mach3 Fuction.
AdvantagesThis power regulator can adjust 110 or 220v according to customers' needs. Adopt pulse width technology to make the speed more stable, and the speed is high under low speed.
FeaturesWith overcurrent protection cut-off device to make performance more reliable; With a soft start device to eliminate motor starting current is too large.
NoteThis motor has quiet operation, small volume and high speed, and the rear end of the motor is reinforced with a cooling fan, which can be safely worked for a long time!
Speed Controller Power :800W; Input Voltage: AC100-AC220V±10% Global voltage 50/60Hz; Current Limit: 6A; Wiring: Terminal type (Convenient and fast); Support Mach3 Fuction.
AdvantagesThis power regulator can adjust 110 or 220v according to customers' needs. Adopt pulse width technology to make the speed more stable, and the speed is high under low speed.
FeaturesWith overcurrent protection cut-off device to make performance more reliable; With a soft start device to eliminate motor starting current is too large.
NoteThis motor has quiet operation, small volume and high speed, and the rear end of the motor is reinforced with a cooling fan, which can be safely worked for a long time!
