DIHOOL Dc 160 Amp Main Circuit Breaker, 160A Ac Disconnect Switch, 2 Pole, 500V

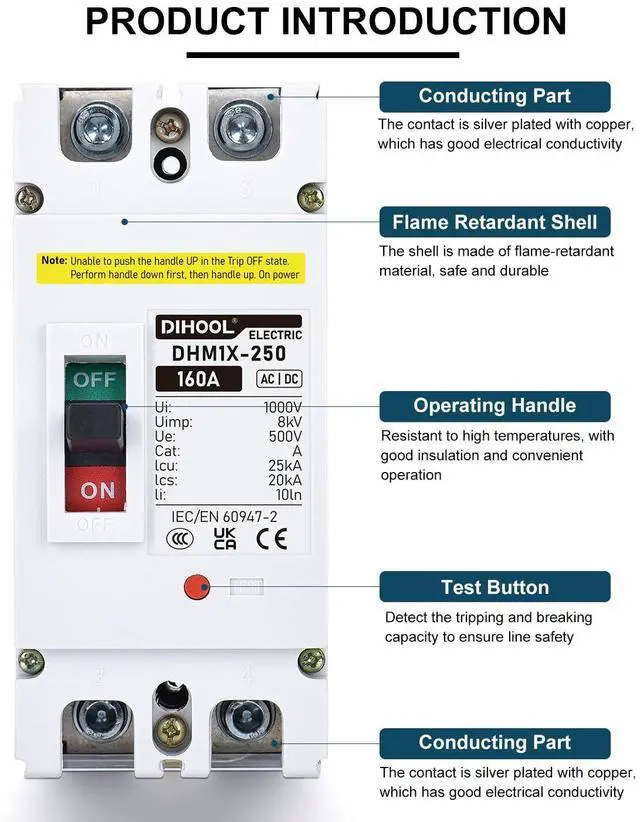

- Function: Thermal magnetic shooting, circuit overload protection, isolation circuit, circuit short circuit protection
- 30% silver content in mobile contacts, 45% silver content in stationary contacts

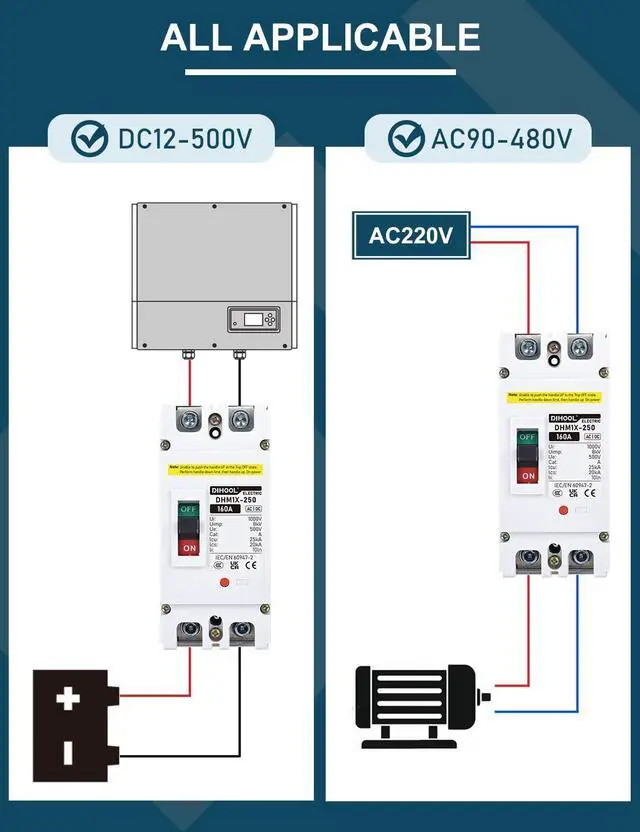

- Working voltage: DC 12V~500V AC 90~480V short circuit interruption capacity 25kA

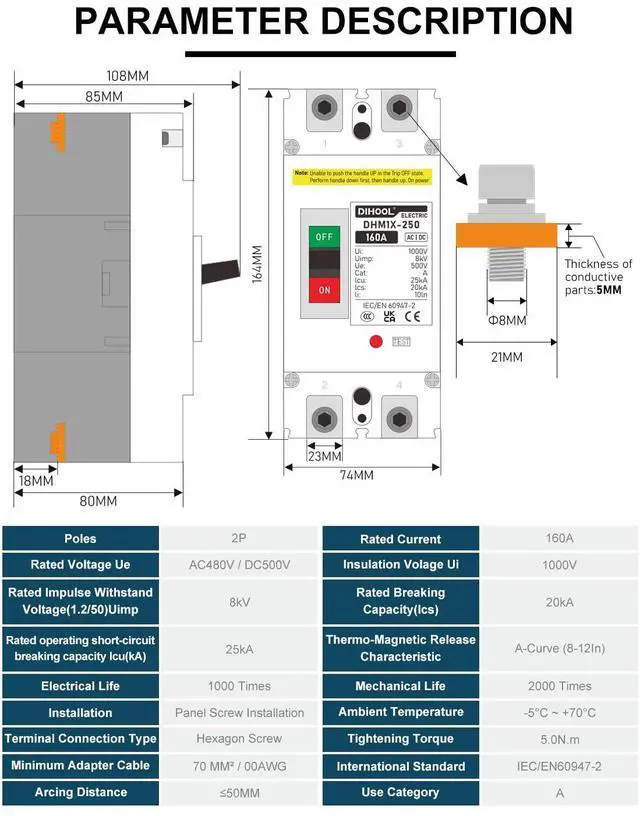

- Size: 164MM x 74MM x 108MM, need to be installed on the panel by screws

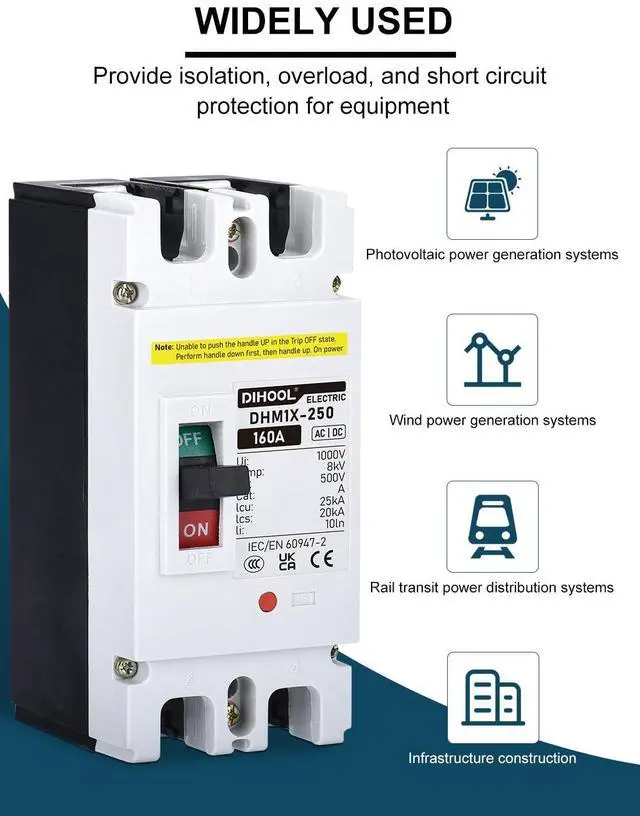

- Suitable for DC applications such as photovoltaic/UPS/battery/datacenter etc.
+
+
Overview
Specs
Reviews
Function: Thermal magnetic shooting, circuit overload protection, isolation circuit, circuit short circuit protection
30% silver content in mobile contacts, 45% silver content in stationary contacts
Working voltage: DC 12V~500V AC 90~480V short circuit interruption capacity 25kA
Size: 164MM x 74MM x 108MM, need to be installed on the panel by screws
Suitable for DC applications such as photovoltaic/UPS/battery/datacenter etc.
30% silver content in mobile contacts, 45% silver content in stationary contacts
Working voltage: DC 12V~500V AC 90~480V short circuit interruption capacity 25kA
Size: 164MM x 74MM x 108MM, need to be installed on the panel by screws
Suitable for DC applications such as photovoltaic/UPS/battery/datacenter etc.
