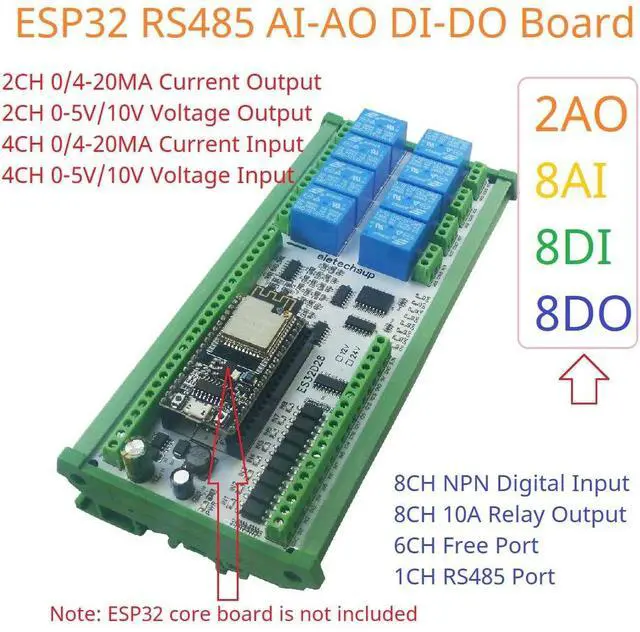

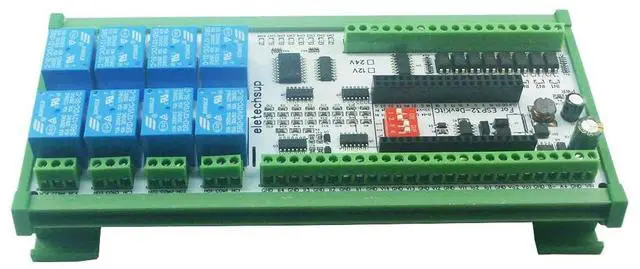

2AO-8AI-8DI-8DO ESP32 WiFi Network Relay Board 4-20MA 0-10V Digital Analog Input Output Module for Smart Switch IOT Simple PLC (DC 24V with Shell)

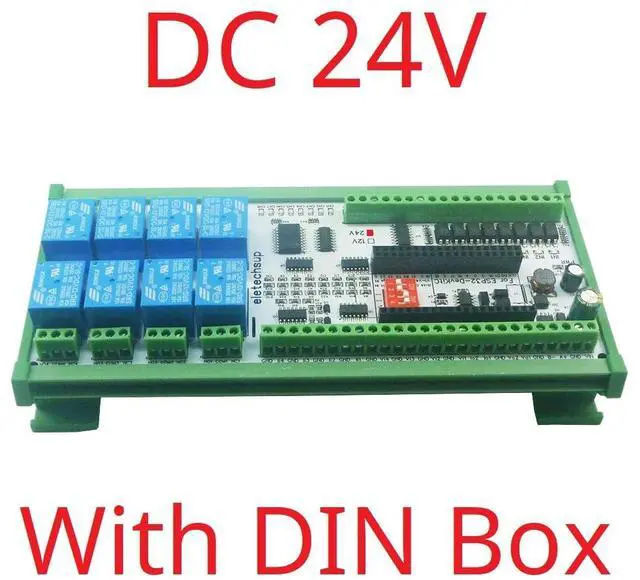

- Operating voltage: DC 12V/DC 24V
- Operating Current : Standby current (Digital tube OFF) 14MA, Standby current 52MA (Digital tube ON), 1 relay open 76MA, 2 relays open 107MA, 3 relays open 133MA, 4 relays open 167MA,5 relays open 185MA, 6 relays open 213MA, 7 relays open 258MA, 8 relays open 291MA
- On-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x 0/4-20MA Current Input,4x 0-5V/10V Voltage Input,2x 0-5V/10V Voltage Output(OR 2x 0/4-20MA Current Output),1x ESP32 slots,8x relay outputs
- As long as you write ESP32 code,You can use it to achieve a variety of delay timer function
- ES32D26 can not work independently, must be under the control of the 38PIN ESP32 board to work,If you do not have a 38PIN ESP32 board, purchase it separately or purchase a kit with 38PIN ESP32
+
+
Overview
Specs
Reviews
Operating voltage: DC 12V/DC 24V
Operating Current : Standby current (Digital tube OFF) 14MA, Standby current 52MA (Digital tube ON), 1 relay open 76MA, 2 relays open 107MA, 3 relays open 133MA, 4 relays open 167MA,5 relays open 185MA, 6 relays open 213MA, 7 relays open 258MA, 8 relays open 291MA

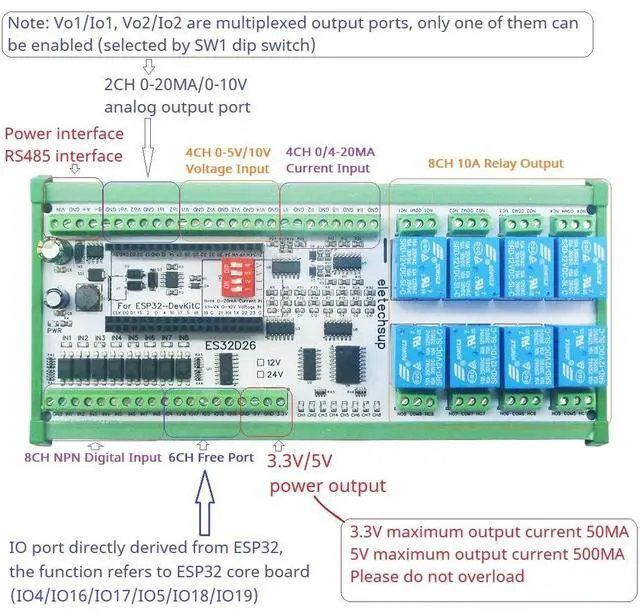

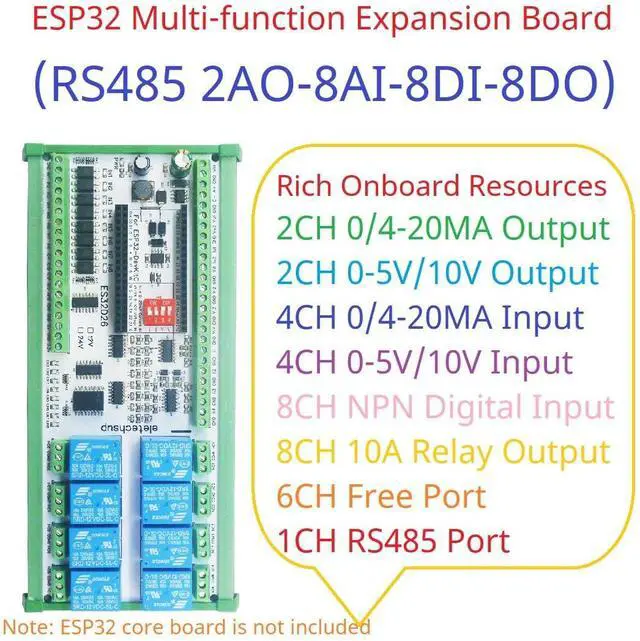

On-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x 0/4-20MA Current Input,4x 0-5V/10V Voltage Input,2x 0-5V/10V Voltage Output(OR 2x 0/4-20MA Current Output),1x ESP32 slots,8x relay outputs
As long as you write ESP32 code,You can use it to achieve a variety of delay timer function
ES32D26 can not work independently, must be under the control of the 38PIN ESP32 board to work,If you do not have a 38PIN ESP32 board, purchase it separately or purchase a kit with 38PIN ESP32
Operating Current : Standby current (Digital tube OFF) 14MA, Standby current 52MA (Digital tube ON), 1 relay open 76MA, 2 relays open 107MA, 3 relays open 133MA, 4 relays open 167MA,5 relays open 185MA, 6 relays open 213MA, 7 relays open 258MA, 8 relays open 291MA
On-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x 0/4-20MA Current Input,4x 0-5V/10V Voltage Input,2x 0-5V/10V Voltage Output(OR 2x 0/4-20MA Current Output),1x ESP32 slots,8x relay outputs
As long as you write ESP32 code,You can use it to achieve a variety of delay timer function
ES32D26 can not work independently, must be under the control of the 38PIN ESP32 board to work,If you do not have a 38PIN ESP32 board, purchase it separately or purchase a kit with 38PIN ESP32
