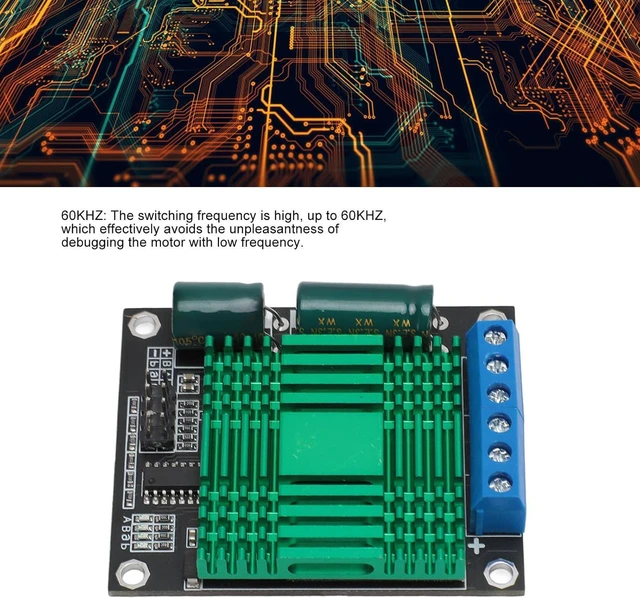

60A DC Motor Driver Module, High Power H Bridge Module for Replacement, PWM Control, Wide Voltage with 9V-30V

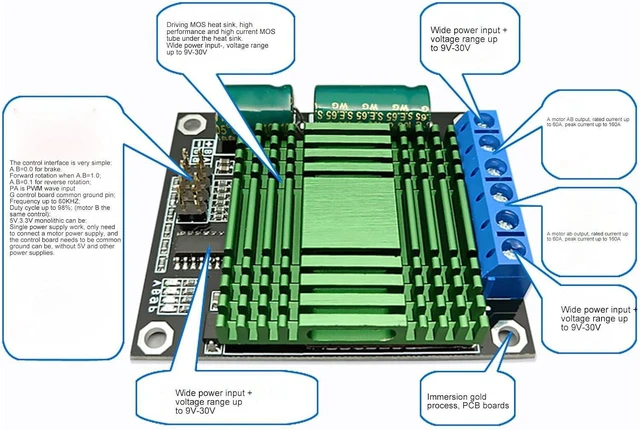

- HIGH INTEGRATION: 60A driver module basic components for SMD integration degree is high, the module design is beautiful, well laid out, very small size, on board two high power DC motor driver.
- 60A: When driving the motor, the maximum rated current of the module can be up to 60A, and the on is only 0.003 ohm.
- HEAT DISSIPATION: Wide heat sink can effectively dissipate heat for the driver module when high current is applied to maintain the module's good stability.
- 60KHZ: The switching frequency is high, up to 60KHZ, which effectively avoids the unpleasantness of debugging the motor with low frequency.

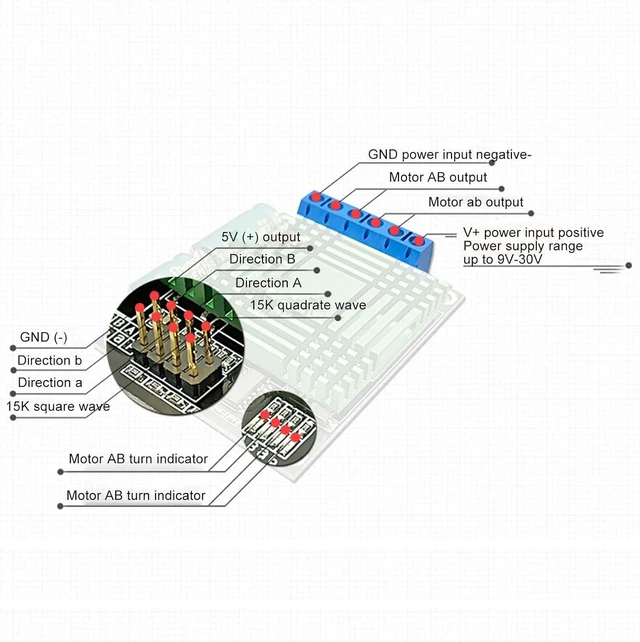

- APPLICATION: 3.3V and 5V microcontroller can control this module, and only need a motor power supply (12V30V).
+
+
Overview
Specs
Reviews
HIGH INTEGRATION: 60A driver module basic components for SMD integration degree is high, the module design is beautiful, well laid out, very small size, on board two high power DC motor driver.
60A: When driving the motor, the maximum rated current of the module can be up to 60A, and the on is only 0.003 ohm.
HEAT DISSIPATION: Wide heat sink can effectively dissipate heat for the driver module when high current is applied to maintain the module's good stability.
60KHZ: The switching frequency is high, up to 60KHZ, which effectively avoids the unpleasantness of debugging the motor with low frequency.
APPLICATION: 3.3V and 5V microcontroller can control this module, and only need a motor power supply (12V30V).
60A: When driving the motor, the maximum rated current of the module can be up to 60A, and the on is only 0.003 ohm.
HEAT DISSIPATION: Wide heat sink can effectively dissipate heat for the driver module when high current is applied to maintain the module's good stability.
60KHZ: The switching frequency is high, up to 60KHZ, which effectively avoids the unpleasantness of debugging the motor with low frequency.
APPLICATION: 3.3V and 5V microcontroller can control this module, and only need a motor power supply (12V30V).
