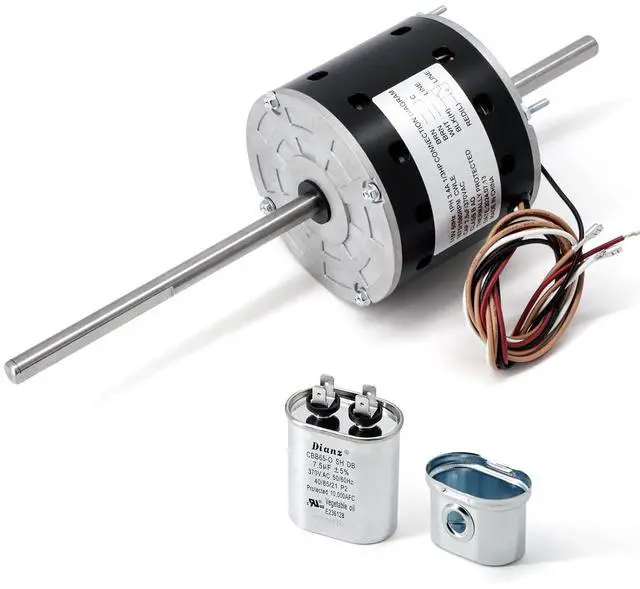

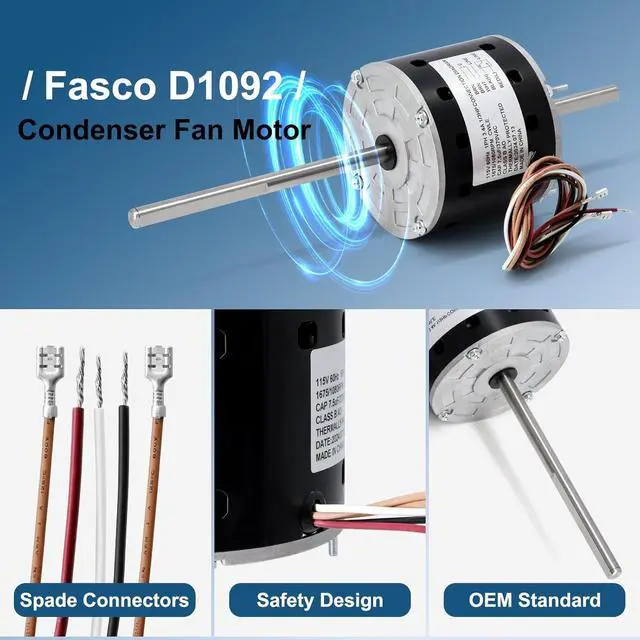

Fasco D1092, 7184-0156, 1468-3069 RV Air Condenser Blower Motor with Capacitor Replacement for Coleman Mach RV AC Fan Motor, 1/3 HP, 115 Volts, 1675 RPM Motor Fan Replaces Broad-Ocean Y6L457D01L.

Replaces Part: Part NoFasco D1092, 7184-0156, 7184-0432, 7184-0196, Y6L-457D01L. Y6L45C21, Coleman 1468-306, 1468-3069, 1468-3068, 1468-3109, 1468A306. 7855MVA-A11U. Coleman Models: 48004, 48014, 48064, 48203, 48204, 48213, 48253, 48254, 48263, 48264, 8332, 8333, 8335, 8433, 8534, 8535, 8632, 8633, Airxcel 48254C966, Y6L457D01L.

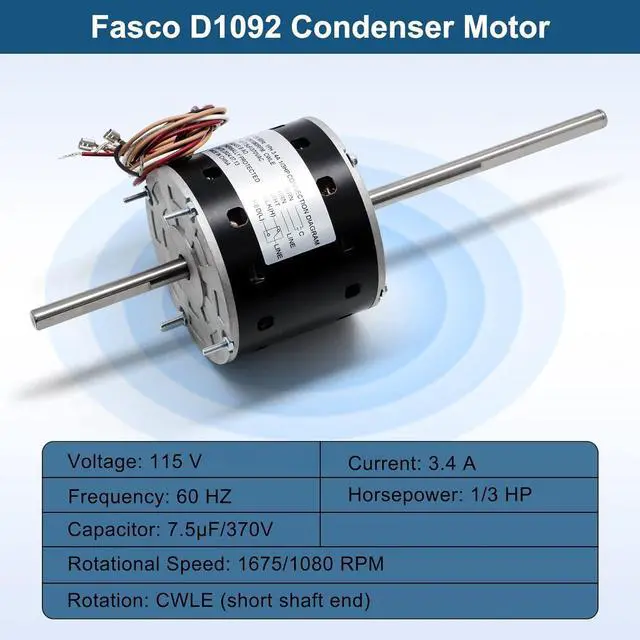

Key Features: Voltage:115V, Current:3.4A, Frequency:60HZ, Horsepower:1/3HP, Capacitor:7.5uF/370V, Rotational Speed: 1675/1080RPM, Rotation: CWLE(short shaft end)

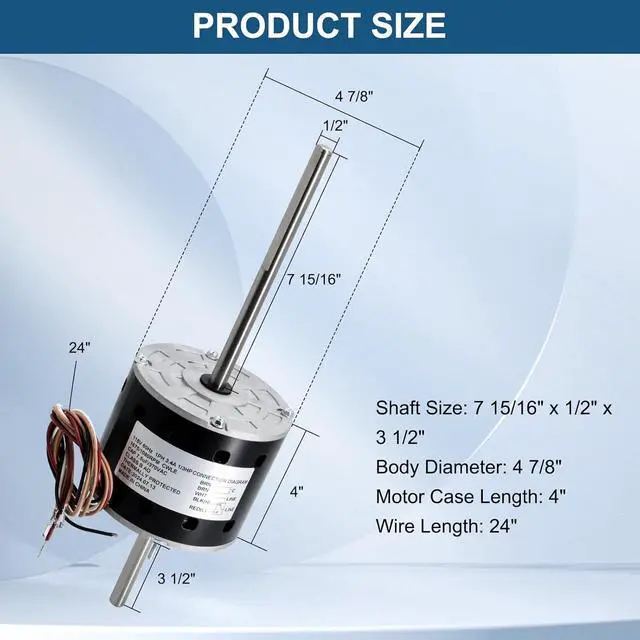

Product Dimensions: Our rv ac fan motor adopts a dual-shaft design with dimensions of Shaft Size: 7 15/16"x 1/2"x3 1/2", Body Diameter: 4 7/8", Motor Case Length: 4", Wire Length: 24". No additional brackets are required, making it suitable for various installation scenarios.
Installation tip: When connecting the black control wire in the motor to the RV, it is at high speed (H), and when connecting the red control wire to the RV, it is at low speed (L). Suggest watching a few YouTube videos on replacing the motor and good tips before you install it
Durability & Long Service Life - Runs smoothly and quietly. Superior quality is our obligation! We are committed to providing a 2-year warran/ty.
