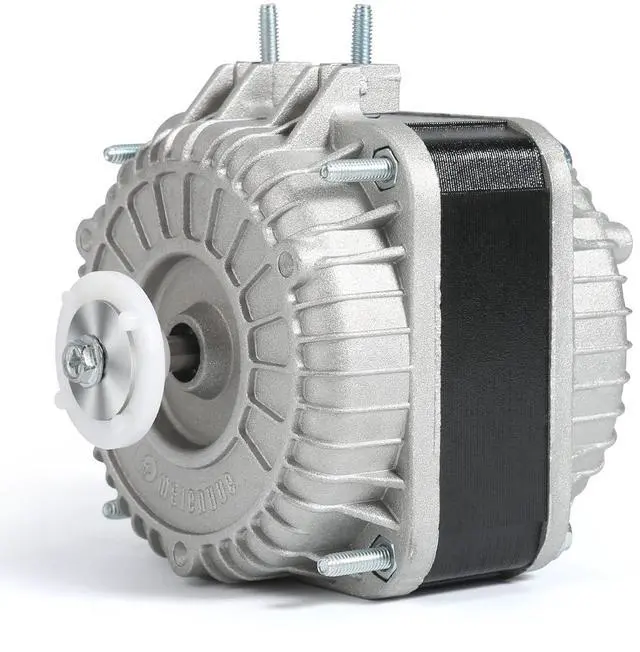

Condenser Fan AC Motor YZF18-25,18W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved,Can Replace YZF10-20 YZF6-13 (120V 60Hz YZF10-20)

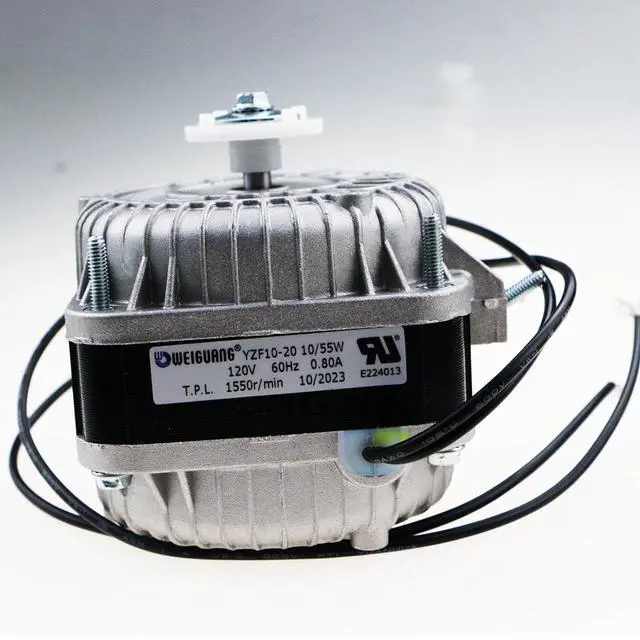

Specifications:120V 60Hz shaded pole AC motor YZF10-20,Input power 55W, Output power 10W, Current 0.8A, Rotational speed 1550r/min,UL certification,Widely used in condenser fan motor in refrigeration equipment
Working Environment:YZF10-20 AC motor is Class B insulation, and has built-in overheat protector, the protection temperature is 257 °F, the motor can work continuously in -13 °F to 122 °F ambient temperature
Load Capacity:YZF10-20 fan motor the maximum fan blades size that can be used is 230,28°rated air volume 800m3/husing sleeve bearing and can work continuously for more than 20,000 hours

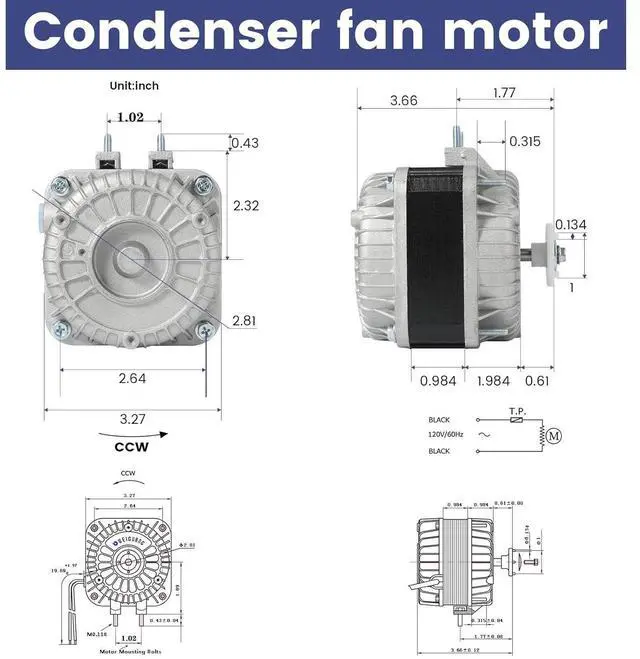

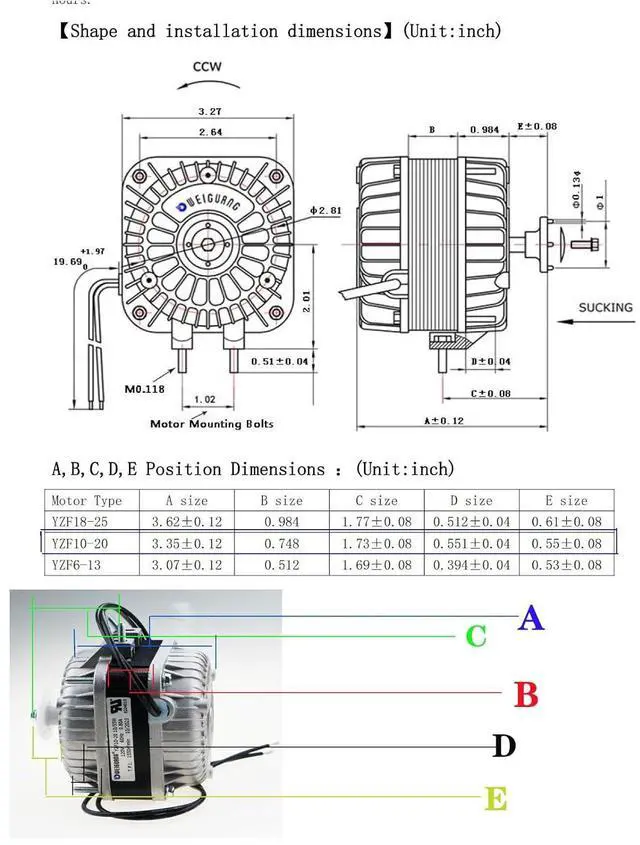

Installation ModeYZF10-20 motor mounting pin spacing is 1.02 inchesit needs to be mounted horizontally or vertically with mounting bracketsthe motor rotates counterclockwise

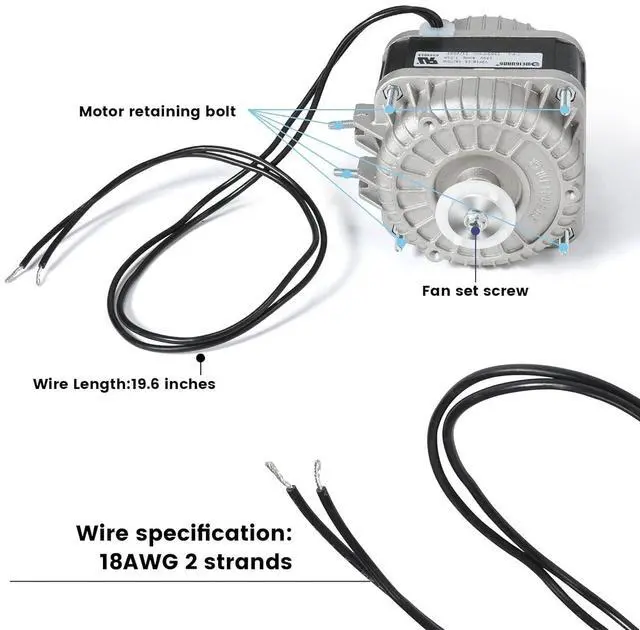

Connecting wire: Motor has two leads, specification 18AWG, UL certification, line length 19.68-21.65 inches, used to connect the two poles of the power supply, motor housing grounding wire

Overview

Specs

Reviews

Specifications:120V 60Hz shaded pole AC motor YZF10-20,Input power 55W, Output power 10W, Current 0.8A, Rotational speed 1550r/min,UL certification,Widely used in condenser fan motor in refrigeration equipment
Working Environment:YZF10-20 AC motor is Class B insulation, and has built-in overheat protector, the protection temperature is 257 °F, the motor can work continuously in -13 °F to 122 °F ambient temperature
Load Capacity:YZF10-20 fan motor the maximum fan blades size that can be used is 230,28°rated air volume 800m3/husing sleeve bearing and can work continuously for more than 20,000 hours
Installation ModeYZF10-20 motor mounting pin spacing is 1.02 inchesit needs to be mounted horizontally or vertically with mounting bracketsthe motor rotates counterclockwise
Connecting wire: Motor has two leads, specification 18AWG, UL certification, line length 19.68-21.65 inches, used to connect the two poles of the power supply, motor housing grounding wire
