Pro Chaser DC-DC Golf Carts RVs 48V 36V Volt Voltage to 12V Step Down Voltage Reducer Regulator for Headlights Taillights Solar Panels Radios (30A 360W)
- 360 W DCDC Voltage Regulator Steps 36 V (six 6 V batteries) or 48 V (six 8 V batteries) golf-cart/RV battery packs down to a stable 12 V/30 A output for headlights, taillights, radios, solar panels, and more.
- Color-Coded Harness & Manual Includes matched connectors and butt-connectors plus a full-color manual with single-line wiring: thin black battery (), thick red battery (+), thick black accessory (), yellow accessory (+), thin red key-switch switched terminal (probe with multimeter).
- Safety & Installation Tips Torque all terminals to 46 N·m to prevent arcing; secure converter, harness, and wires under vehicle to avoid chafing; install in 0 °C50 °C, 85 % RH, with free airflow around the aluminum-cast shells vents.
- Built-In Protection & Reliability Testing Never exceed 360 W continuous load (peak surges 400 W); overload protector trips on over-current (remove load and wait 60 s before retry); each unit passes automated optical inspection, 1 h full-load burn-in, and surge/overload simulation.

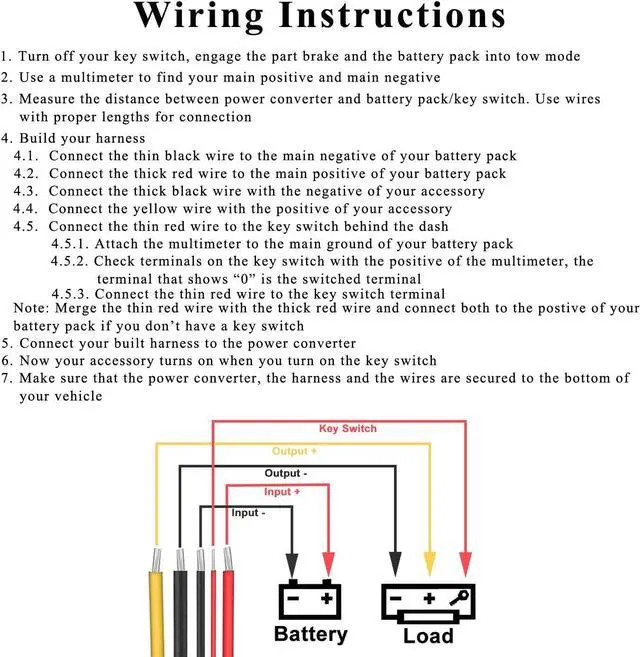

- Refer to the final image in the photo gallery for detailed, step-by-step wiring instructions.
+
+
Overview
Specs
Reviews
360 W DCDC Voltage Regulator Steps 36 V (six 6 V batteries) or 48 V (six 8 V batteries) golf-cart/RV battery packs down to a stable 12 V/30 A output for headlights, taillights, radios, solar panels, and more.
Color-Coded Harness & Manual Includes matched connectors and butt-connectors plus a full-color manual with single-line wiring: thin black battery (), thick red battery (+), thick black accessory (), yellow accessory (+), thin red key-switch switched terminal (probe with multimeter).
Safety & Installation Tips Torque all terminals to 46 N·m to prevent arcing; secure converter, harness, and wires under vehicle to avoid chafing; install in 0 °C50 °C, 85 % RH, with free airflow around the aluminum-cast shells vents.
Built-In Protection & Reliability Testing Never exceed 360 W continuous load (peak surges 400 W); overload protector trips on over-current (remove load and wait 60 s before retry); each unit passes automated optical inspection, 1 h full-load burn-in, and surge/overload simulation.
Refer to the final image in the photo gallery for detailed, step-by-step wiring instructions.
Color-Coded Harness & Manual Includes matched connectors and butt-connectors plus a full-color manual with single-line wiring: thin black battery (), thick red battery (+), thick black accessory (), yellow accessory (+), thin red key-switch switched terminal (probe with multimeter).
Safety & Installation Tips Torque all terminals to 46 N·m to prevent arcing; secure converter, harness, and wires under vehicle to avoid chafing; install in 0 °C50 °C, 85 % RH, with free airflow around the aluminum-cast shells vents.
Built-In Protection & Reliability Testing Never exceed 360 W continuous load (peak surges 400 W); overload protector trips on over-current (remove load and wait 60 s before retry); each unit passes automated optical inspection, 1 h full-load burn-in, and surge/overload simulation.
Refer to the final image in the photo gallery for detailed, step-by-step wiring instructions.
