Condenser Fan Motor D1092, 1/3 HP, 115 Volts, 3.4 Amps,1675/1080 RPM, OAO Enclosure, 2-Speed RV Ac Air Conditioner Motor Replaces Fasco D1092, 7184-0156, 7184-0432, 1468-306, 1468-3069, 7855MVA-A11U

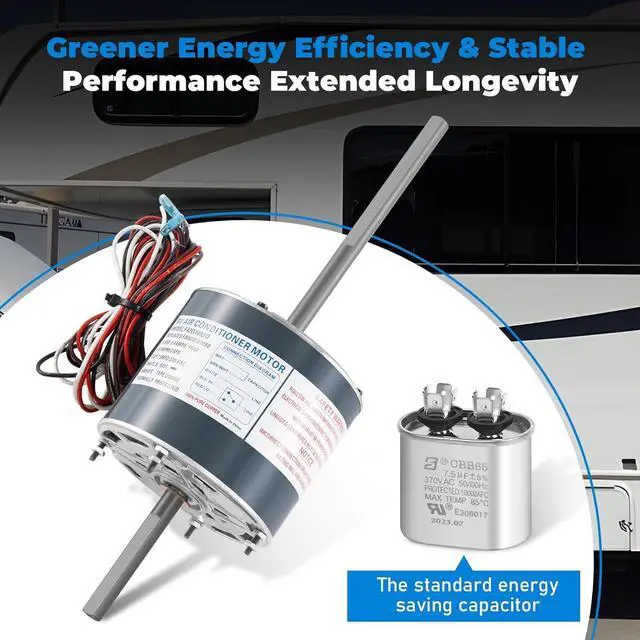

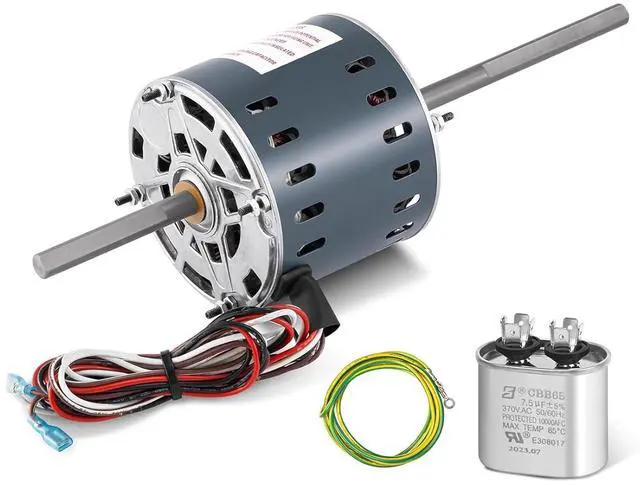

Product SpecificationsUpgraded condenser fan motor horsepower 1/3 HP, 115 Volts, 3.4 Amps,1675/1080 RPM, 60HZ,OAO enclosure, 2-Speed RV Air conditioner direct replacement AC motor, with the 7.5 x 370 capacitor included and automatic overload protection

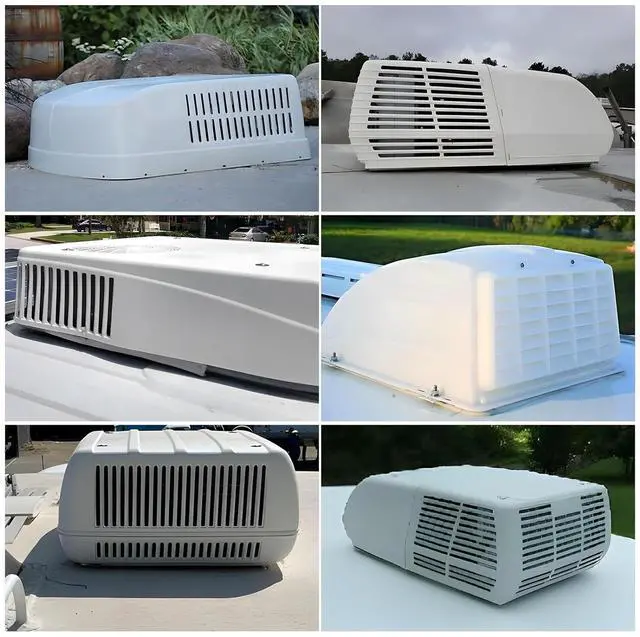

Replacement Option for Various ModelsCondenser fan motor compatible models reference 7184-0156, Y6L457D01L, 7184-0432, Replaces Fasco D1092 and Coleman Part # 1468-306, 1468-3069, 7855MVA-A11U (8333 series) making it a compatible choice for multiple applications

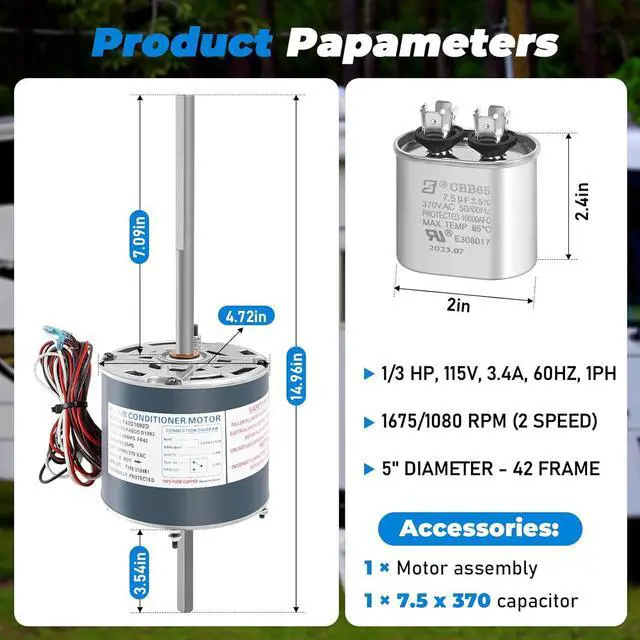

Product Size2-Speed RV Ac Air conditioner motor sleeve bearings double shaft 7 15/16" x 1/2" x 3 1/2"; Rotation = CWLE (short shaft end), Reverse the rotor/shaft. BM = 3 1/2"; Bolt Pattern 4-1/2", weighing 10.44 pounds. No bracket on motor, round body

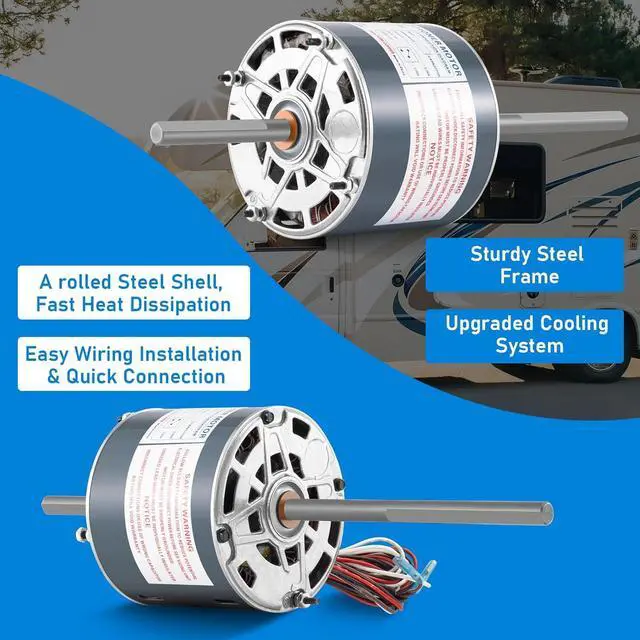

Enhanced CoolingRv Ac fan condenser motor is built to provide reliable and effective cooling, ensuring optimal temperature control in your setup. Meet OEM manufacturing requirements, This motor is designed to improve your system's cooling performance efficiently
2-Year Warranty The condenser motor warranty for 1 year. If you have any dissatisfaction, please tell us immediately, we will give you a satisfactory answer within 12 hours
