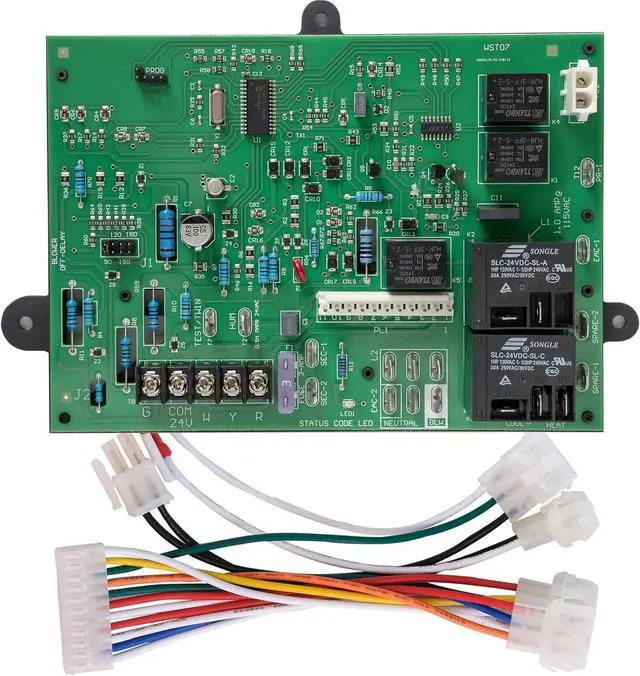

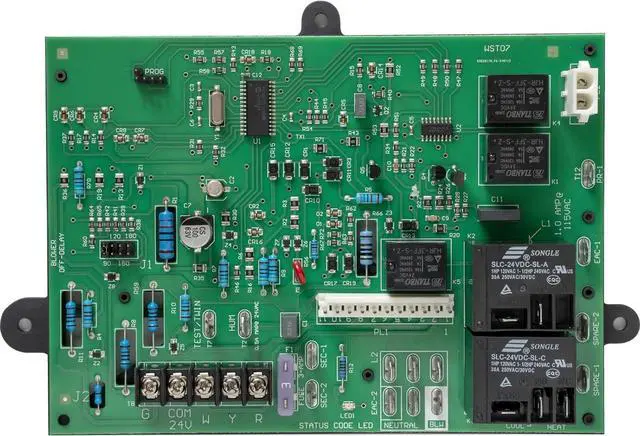

Updated ICM282A Furnace Control Board Fits Carrier HK42FZ013, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ016, HK42FZ034, 325878-751, CEPL1311012-01Series Control Board

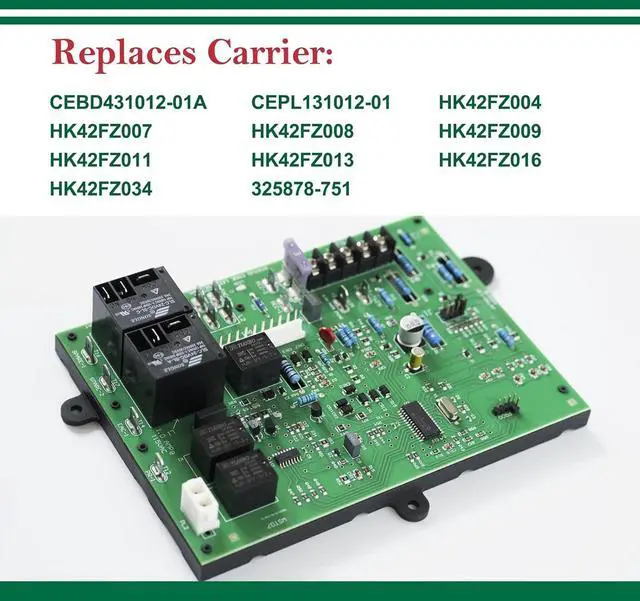

This furnace control circuit board fixed speed furnace control replaces the following Carrier modules:CEBD431012-01A, CEPL1311012-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011,HK42FZ013, HK42FZ016, HK42FZ034, 325878-751.

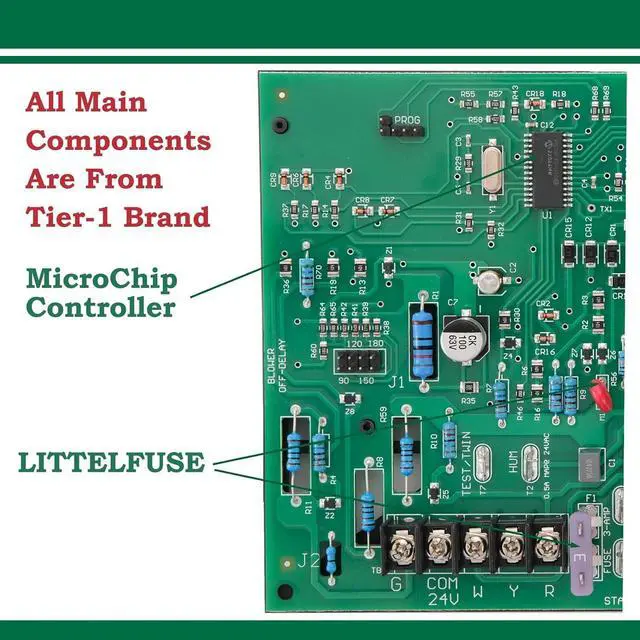

Features: Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner. Microprocessor-based, designed for 100% gas shutoff in case of ignition failure.Reverse polarity protection, secondary brownout voltage protection, compatible with a 24 VAC standard thermostat ,provides diagnostic LED to aid in troubleshooting.
Software for enhanced controls operation in counterflow and downflow furnace applications.Use caution when installing and servicing the furnace to avoid and control electrostatic discharge.
Range: 98 to 132 VAC at 60 Hz Ignitor: 5A at 120 VAC. Cool Blower: 30A, 2 HP,240 VAC Heat: 5A, 1/2 HP, 240 VAC Inducer Motor: 4A, FLA-8.0 LRA at 120 VAC Gas Valve.
Note: to save yourself some hassle, please take a picture of the old one before removing it.,make sure getting the wires on the correct terminals.Please feel free to contact us if you have any questions about our products, your satisfaction would be our greatest motivation.
