MECCANIXITY 4Set 4 Pin M8 Female Male Aviation Connector Wire Plug A Coding 8mm Circular Sensor Connector Waterproof IP67 for Cable

M8 aviation plug connectors are used to connect electronic devices and sensors. They are widely used in computers, instrumentation and industrial cameras, signal electronic connectors, and can be easily connected to proximity switches, photoelectric barriers, flow monitoring devices, sensor devices and actuator devices.

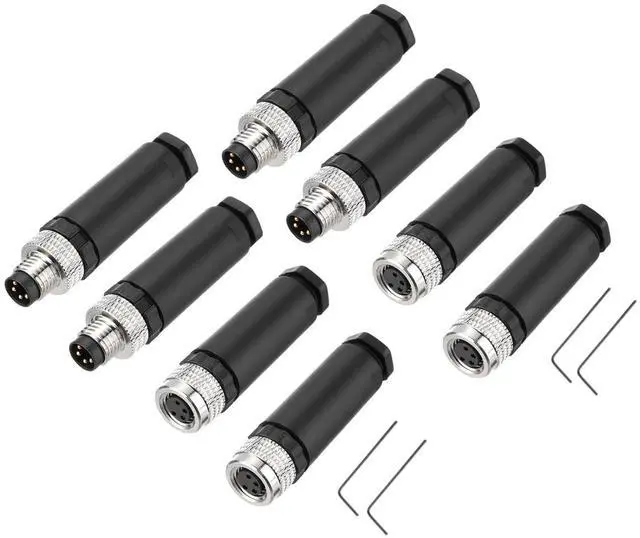

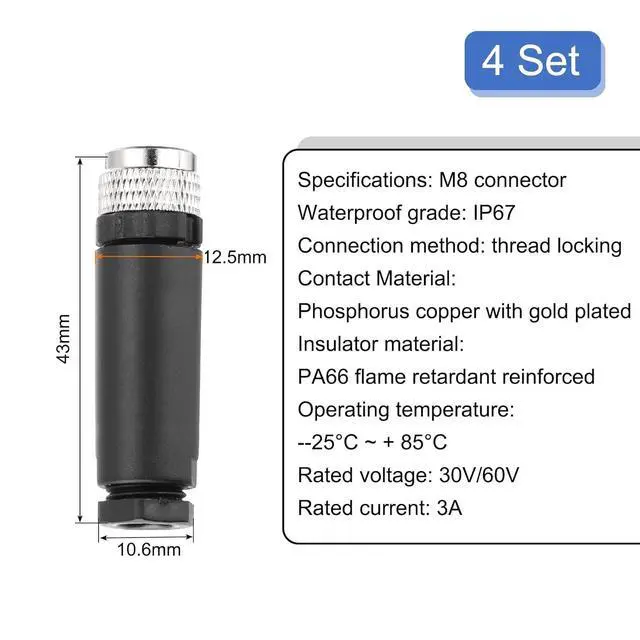

M8 Male Female Connector Specifications: M8 connector ; Number of pins: 4P ; Export cable diameter: 3~5mm ; Waterproof grade: IP67 ; Connection method: thread locking ; Contact MaterialPhosphorus copper with gold plated ; Insulator material: PA66 flame retardant reinforced ; Operating temperature: -25°C ~ +85°C ; Rated voltage: 30V/60V ; Rated current: 3A ; Package contains: 4pcs*Male + 4pcs*Female M8 Aviation Sensor Connector + 4pcs Right angle wrench.

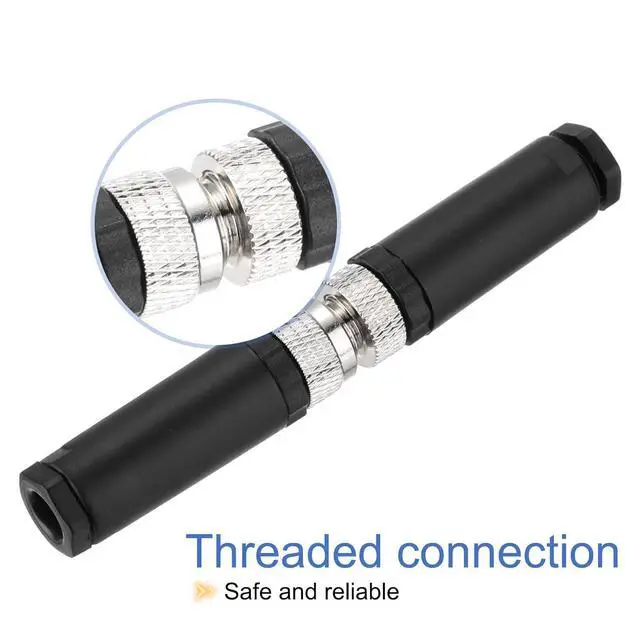

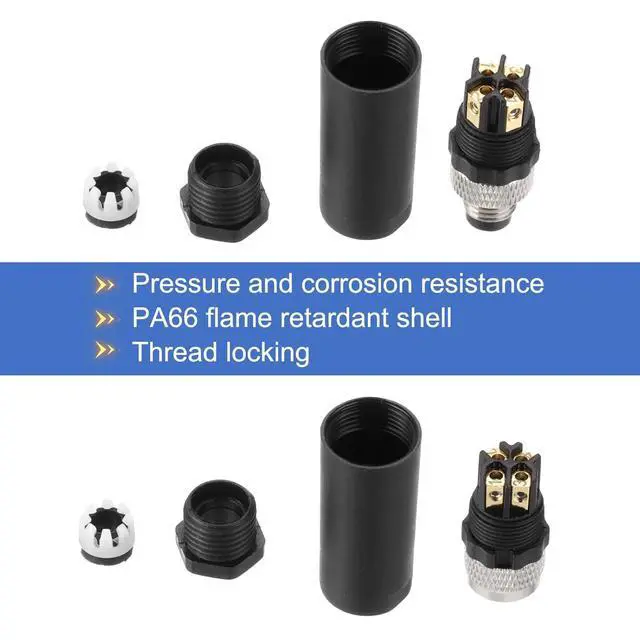

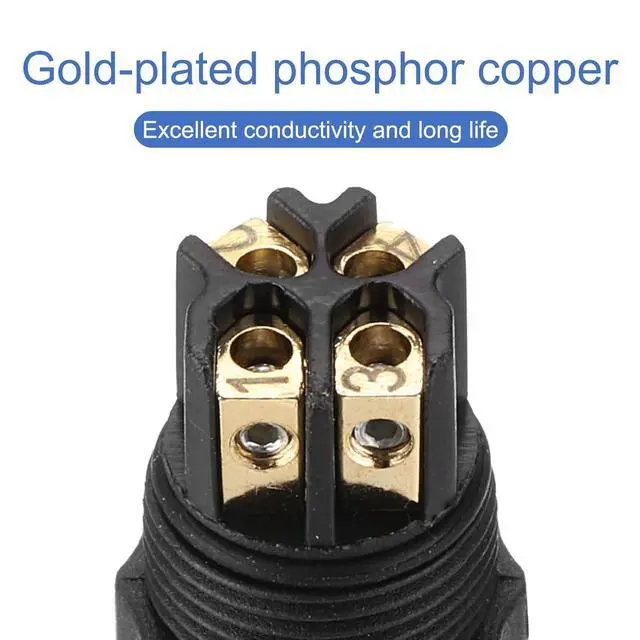

PA66 flame retardant shell, flame retardant insulation, thickened nylon, pressure and corrosion resistance. Phosphor copper gold-plated pins, thickened treatment, excellent conductivity, and ultra-long life. The waterproof sensor adopts a thread locking mechanism for anti-vibration locking.

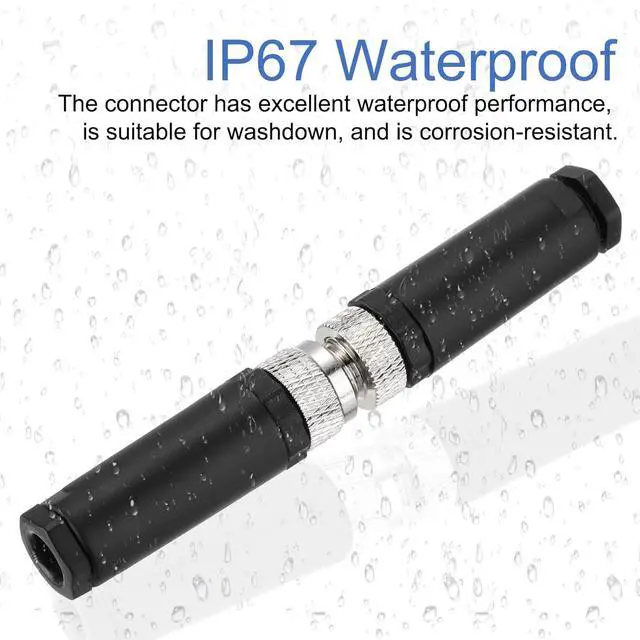

The M8 circular connector is a linear connection method for cables, screw connections, and IP67 waterproof.
Make sure the plug connector and sensor are properly matched and securely fastened. Do not forcefully insert or remove the connector to avoid damage.
