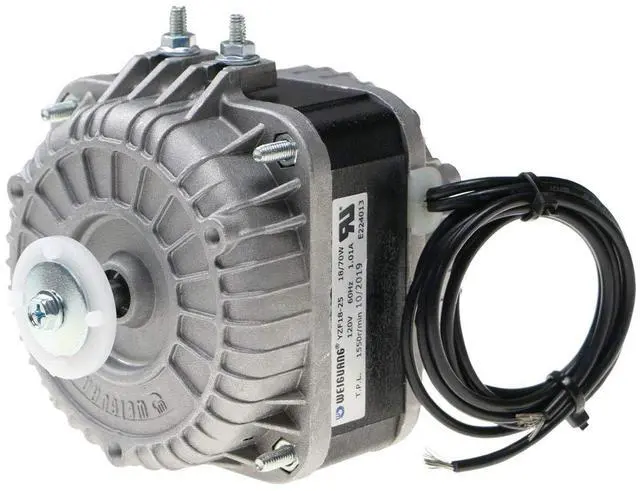

Shaded Pole Motor 110V-120V 60Hz 1.01A 18W AC Fan Motor for Small Ventilation Equipment,Refrigeration Equipment Radiator Evaporator (YZF18-25)

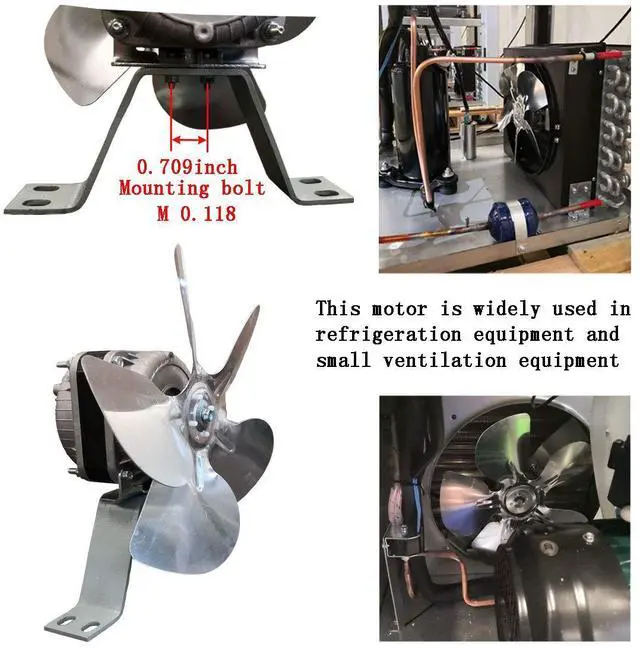

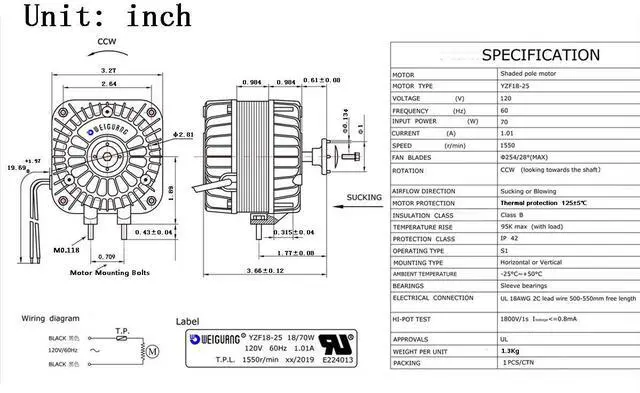

The AC Motor YZF18-25 is a single phase 4-pole shaded pole motor.It is mainly used for small ventilation, condenser or evaporator air circulation in refrigeration equipment. The motor technical features are as follows:

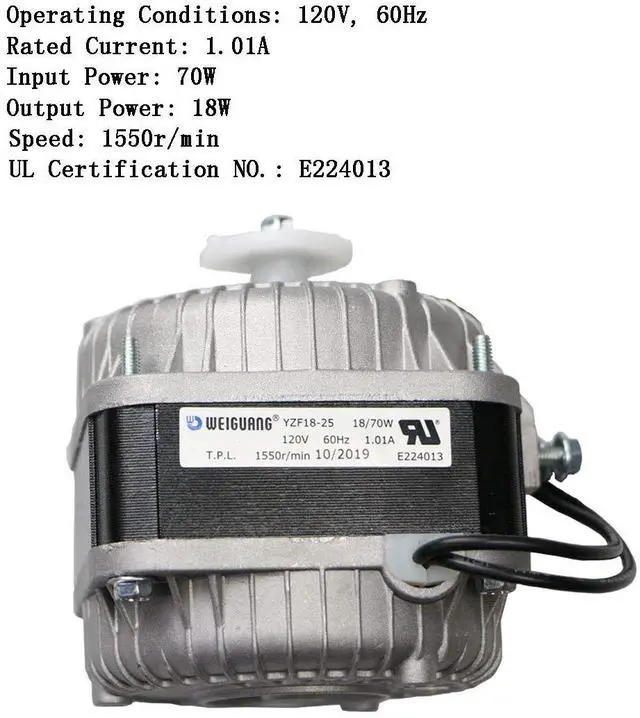

(1) Rated voltage: AC 120 Volts
(2) Operating frequency: 60Hz
(3) Input power: 70 Watts
(4) Output power:18 Watts
(5) Rated current:1.01 Ampere
(6) Output shaft speed: 1550rpm/min
(7) Motor thermal protection:257±41 , built-in
(8) Motor winding temperature rise: 95K
(9) Insulation class: B class
(10) Protection class: IP42
(11) Insulation voltage(HI-POT TEST): 1800V/1s
(12) Rotation(Looking towards the shaft):CCW
(13) Airflow direction: Suction or blown by different fan blades, the maximum size of the fan blades is 254,28°
(14) Mounting type:Horizontal or Vertical
(15) Applicable ambient temperature for the motor: -13°F to 122°F
(16) Operating type:S1
(17) Bearings: Sleeve bearings
(18) Electrical connection: UL 18AWG 2C lead wire 19.68-21.65 inches free length
(19) UL Approvals NO.:E224013
(20) Weight per unit:1.3Kg
(21) Packing: 1PCS/CTN
(22) All material conform to ROHS.
(23) The average service life of motors is over 20000 hours.
(24) Before operating the motor, make sure to effectively connect the external grounding device to the outer casing of the motor. The external ground wire may be connected to the bolts of the motor, or the motor casing may be connected to the external grounding device through the conductive metal.
