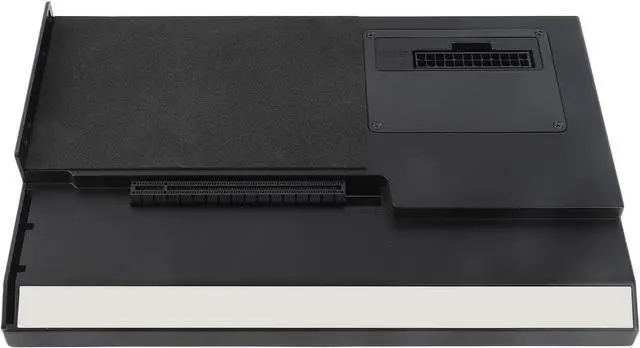

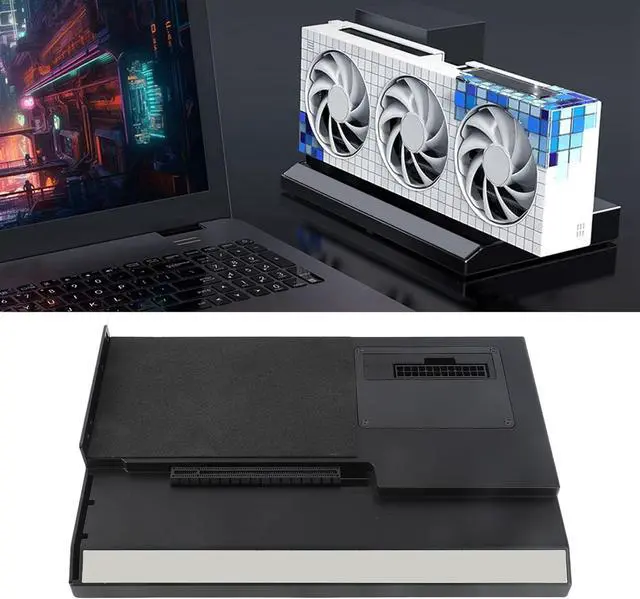

External GPU Dock Station, GPU Enclosure for Thunderbolt 3x2, USB4.0 40Gbps M.2 Nvme SSD 1000Mbps RJ45 PCIe X16, PD 60W, DC/ATX/SFX Support, for for OS X 10.13.4 or Later

Versatile Use: The dock station is suitable for NUC, laptops, gaming consoles, with USB4.0 interface, improving gaming performance by connecting external GPU.
Efficient Data Transmission: The GPU enclosure breaks through for JHL6 series 22Gbps limit, achieving PCIe3.0X4 32Gbps data transfer speed, specifically designed for Thunderbolt GPU.
Enhanced Performance: The external dock station supports PD 60W charging, 40Gbps data transfer, for PCIe X16 interface GPUs, equipped with 2 TB3 ports, RJ45 Gigabit Ethernet, and M.2 Nvme SSD slot (up to 2TB capacity), expanding external devices connection.
Multiple Power Supply Option: The laptop GPU dock supports for Daisy Chain for excellent performance. Power for SFX, for SATX, and for power supplies, prepare power supply according to PCIe card requirements.
Easy Installation: The aluminum alloy dock station support for SFX and for ATX brackets for easy installation of GPUs, power supplies, and connections, requires knowledge and may involve

Overview

Specs

Reviews

MaterialAluminum AlloySizeApprox. 253 x 162 x 41mm / 9.96 x 6.38 x 1.61inTransmission RateUSB4.0 40GbpsFor Daisy ChainSupportPower SupplyFor ATX/ for SFXEthernet Port1000Mbps RJ45Expansion Hard Drive InterfaceM.2 Nvme SSD (up to 2TB)Supported GPU SizePCIe PD Charging60W (maximum)Package List1 x GPU Dock; 1 x Power Bracket; 1 x Type C USB4.0 Full Featured Data Cable; 1 x Screwdriver; 5 x Screws The external dock station supports PD 60W charging, 40Gbps data transfer, for PCIe X16 interface GPUs, equipped with 2 TB3 ports, RJ45 Gigabit Ethernet, and M.2 Nvme SSD slot (up to 2TB capacity), expanding external devices connection

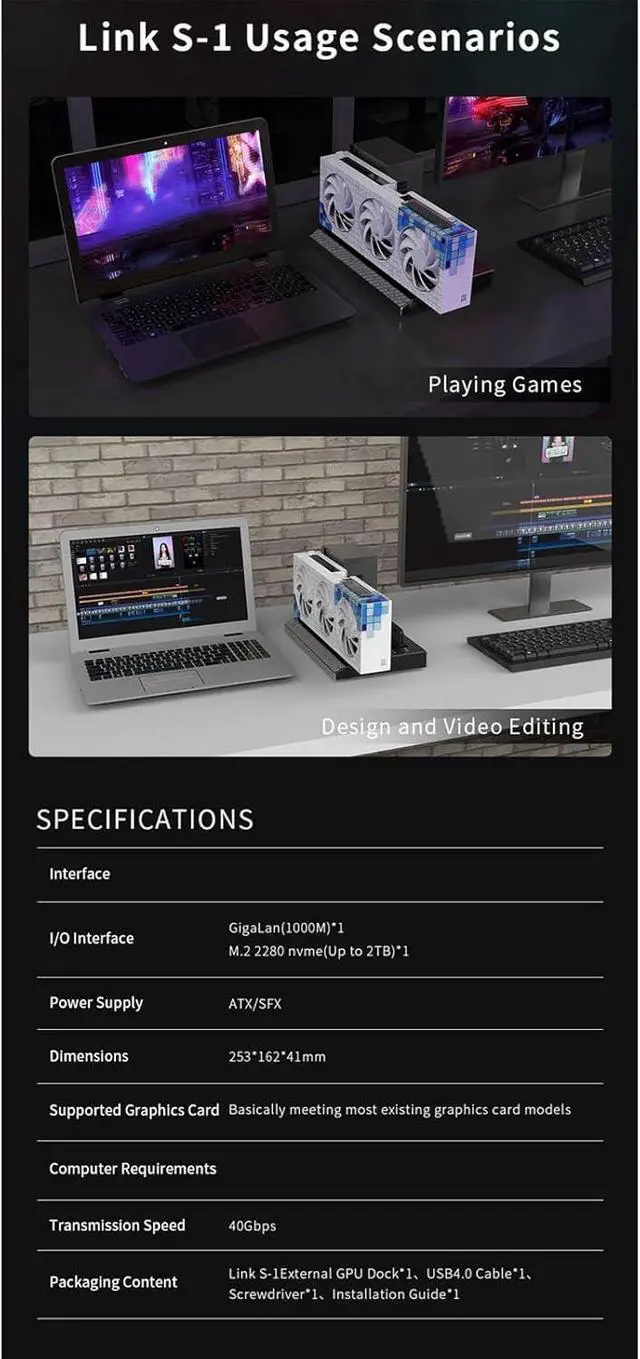

Graphics Docking Station Specification
