TL631 Mini Motherboard Diagnostic and Analyzer Card - PCIe Debug Card for PC Computer with LPC Port, Includes Connection and Ribbon Cables for Troubleshooting
- Serial Comm Protocol: This diagnostic card has added a serial comm protocol, including for COM DEBUG, for UART1, for JDP, which has a wide range of applications.
- LED Indicator: Can detect multi channel and multiple LED indicator, support displaying the status of power supply, motherboard, PCU, memory, video card, and hard drive.
- Included Tools: This kit includes motherboard diagnostic card, laptop adapter card, connection cable and ribbon cables, easy to connect and operate, convenient and practical.
- Strong Compatibility: This laptop motherboard analyzer card supports PCI E interface, mini PCI E interface, LPC interface, supports all PCI slots, and has good compatibility.
- Good Performance: The motherboard analyzer diagnostic card has high recognition rate, supports automatic recognition of power module, high efficiency, and
+
+
Overview
Specs
Reviews
Spec:
Item Type: Motherboard Diagnostic Card
Product Color: Black
Product Interface: PCIE, LPC
Support Brand: Suitable for COM DEBUG, for UART1, for JDP, for SPI, etc.
Diagnostic Card Settings:
1. LPC1 shared high speed channel, connect the 2.0 small pin LPC port and 2.0 module on the mainboard (The module expansion LPC3 port can connect to the laptop MINI PCIE conversion card, A DEBUG conversion card, notebook DEBUG CON, EC DEBUG).
2. LPC2 shared high speed channel, connect motherboard 2.54 large pin LPC interface, for COM DEBUG, for UART1, for JDP, for SPl.
3. DP decimal point, CLK display.
4. DP decimal point, FRAME frame display.
5. CPU indicator to check whether the CPU module is normal.
6. DRAM memory indicator to check whether the memory module is normal.
7. VGA graphics card indicator to check whether the graphics card module is normal.
8. PCH Southbridge indicator to check whether the Southbridge module is normal.
9. The white horizontal line is the first needle of LPC1.
10. The white horizontal line is the first needle of LPC2.
11. DP decimal point, CLK display.
packing list:

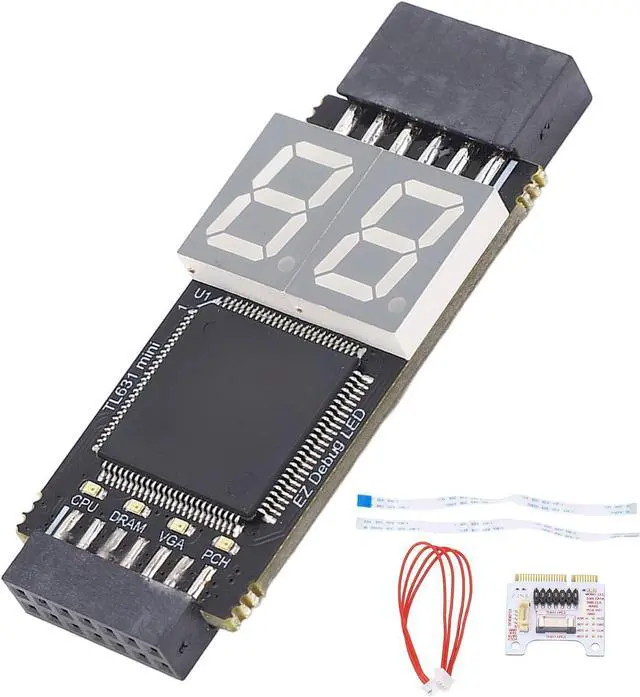

1 x Diagnostic Card
1 x Connection Cable
1 x Adapter Card
2 x Ribbon Cable
Item Type: Motherboard Diagnostic Card
Product Color: Black
Product Interface: PCIE, LPC
Support Brand: Suitable for COM DEBUG, for UART1, for JDP, for SPI, etc.
Diagnostic Card Settings:
1. LPC1 shared high speed channel, connect the 2.0 small pin LPC port and 2.0 module on the mainboard (The module expansion LPC3 port can connect to the laptop MINI PCIE conversion card, A DEBUG conversion card, notebook DEBUG CON, EC DEBUG).
2. LPC2 shared high speed channel, connect motherboard 2.54 large pin LPC interface, for COM DEBUG, for UART1, for JDP, for SPl.
3. DP decimal point, CLK display.
4. DP decimal point, FRAME frame display.
5. CPU indicator to check whether the CPU module is normal.
6. DRAM memory indicator to check whether the memory module is normal.
7. VGA graphics card indicator to check whether the graphics card module is normal.
8. PCH Southbridge indicator to check whether the Southbridge module is normal.
9. The white horizontal line is the first needle of LPC1.
10. The white horizontal line is the first needle of LPC2.
11. DP decimal point, CLK display.
packing list:
1 x Diagnostic Card
1 x Connection Cable
1 x Adapter Card
2 x Ribbon Cable
