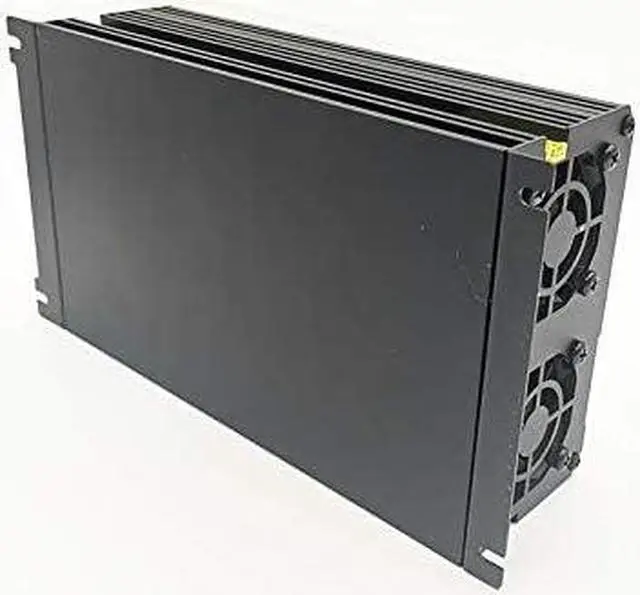

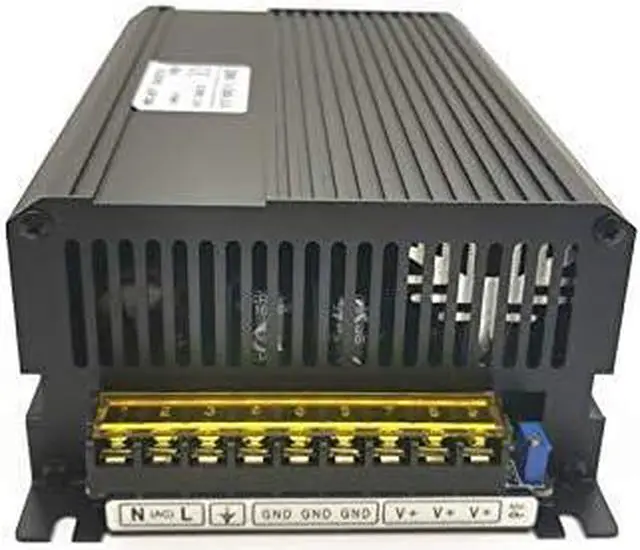

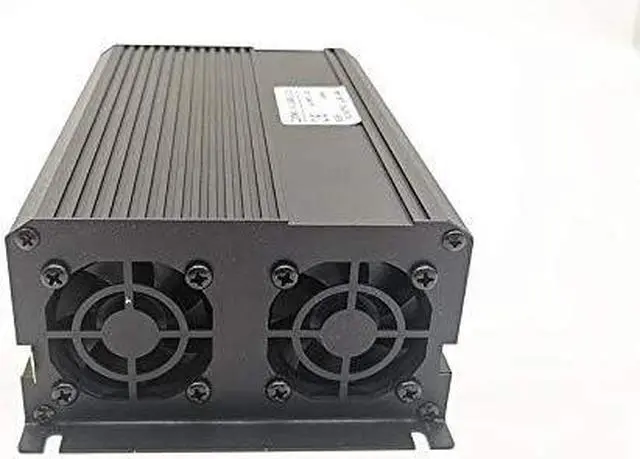

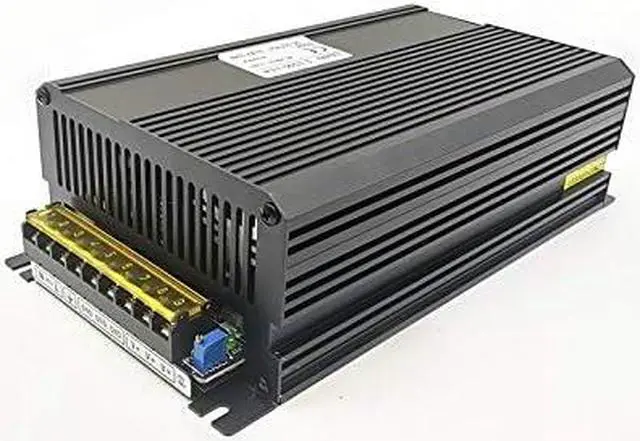

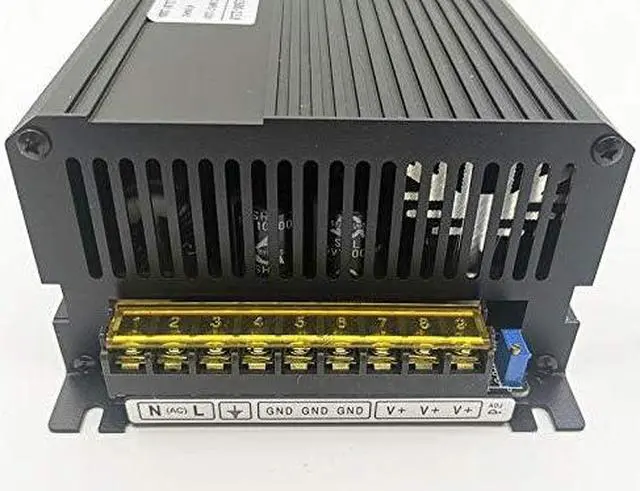

General-Purpose Regulated Switching Power Supply 1500W Switching Power Supply AC-DC SMPS Output 12V 15V 24V 36V 48V 50V 60V 72V 80V 90v dc Power Supply(220V,15V 100A)

Feature&Advantages
Low price and high reliability
105°C output capaciton
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Install with EMI filter, minimum wave

Model Specification S-1500-12
S-1500-13.5
S-1500-15
S-1500-24
S-1500-27
S-1500-48

DC Output voltage(V)
12
13.5
15
24
27
48

Rated output current(A)
125
110
100
62.5
55
31

Output current range(A)
0~125
0~110
0~100
0~62.5
0~55
0~31

Wave and noise(mVp-p)
200
200
200
200
200
200

Inlet stability(%)
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5

Load stability(%)
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5

DC output power(W)
1500
1500
1500
1500
1500
1500

Efficiency(%)
84
84
85
85.5
86.5
87

AC input voltage range
200~240VAC 47~63Hz ( 220Vac or 110vac, when you make order please choose it.)

Input current
7A/230V

AC Inrush current
50A/230V

Leakage current
<;3.5mA/240VAC

Overload protection
105%-150% Type:pulsing hiccup shutdown Reset:auto recovery

Over-voltage protection
13.8~16.2v
15.5~18.2v
18~21v
27.6~32.4v
31~36.5v
57.6~67.2v

High-temperature protection
70°C Cut off output(0~50°C)

Temperature coefficient
±0.03%/°C(0~50°C)

Setup, rise, hold up time
1.5s, 50ms, 20ms

Vibration
10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity
-10°C~+60°C,10%~95%RH

Store temperature and humidity
-20°C~+85°C,10%~95%RH
