VAYALT DC 12V 50A 600W Switching Power Supply, 110V/220V AC to DC Converter, Universal Regulated Switching,12V Power Supply for CCTV Camera System,3D Printer,Led Strip,Computer Project
- Universal ACThis Switching Power Supply is designed for input voltages of 110V/220V and offers an adjustable output voltage of 12V ±10% (V-ADJ).Maximum peak power 600W 50A. The output current depends on the power requirements of the consuming equipment, capable of providing different currents/watts for multiple devices (recommended for devices with a power of 600W 50A or less). For resistive devices, the SMPS peak power should be 1.25 times the device power. For motor equipment, the SMPS peak power needs to exceed twice the motor power. Variable speed motors are not applicable.

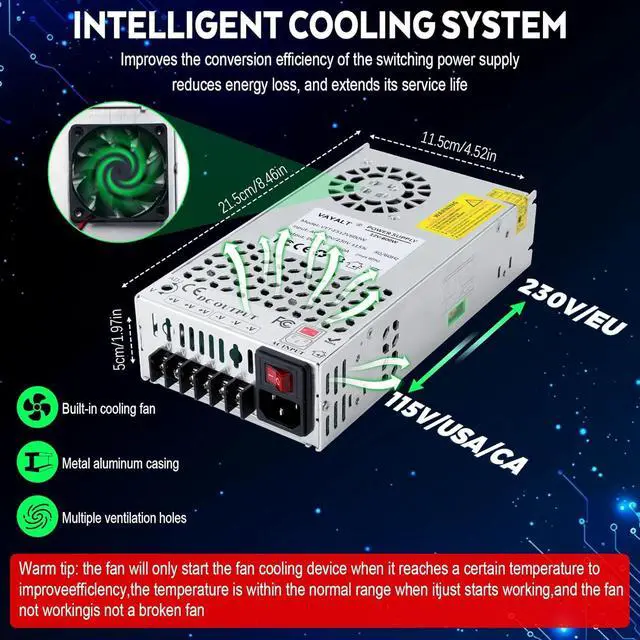

- Effective Cooling SystemThe switch power supply is equipped with an internal cooling fan and a heat sink design, and the housing is designed with multiple ventilation holes, significantly improving the heat dissipation efficiency. This effectively prevents the circuit board from overheating and damaging, ensuring stable and efficient operation of the equipment and extending the lifespan of the power supp
+
+
Overview
Specs
Reviews

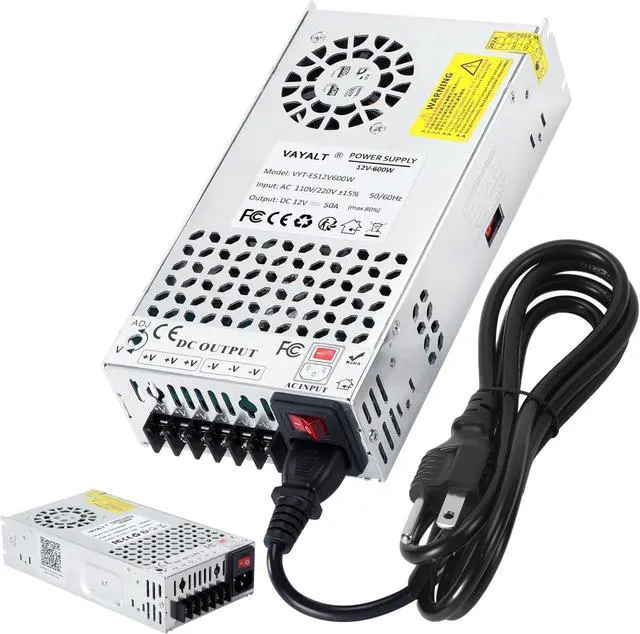

VAYALT DC 12V 50A 600W Switching Power Supply, 110V/220V AC to DC Converter

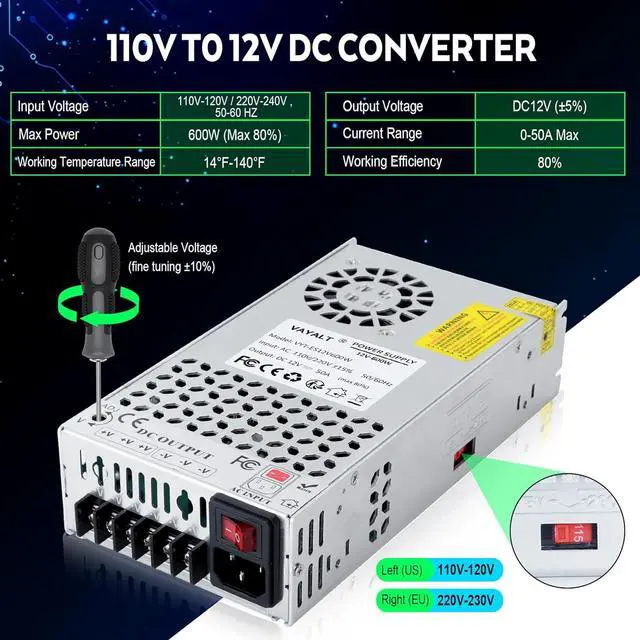

Important Reminder: Before use, please select 115V/230V through the switch to avoid damage. Set the switch to 115V for use in the United States
Switching Power Supply Features

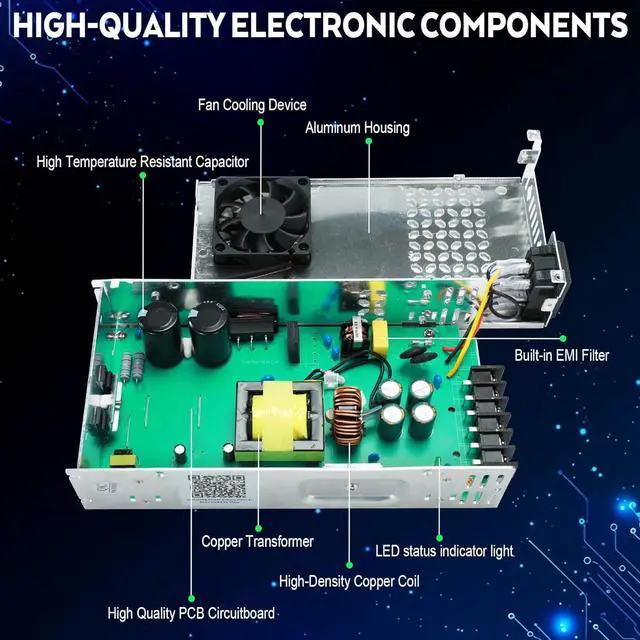

1. High-quality components ensure reliability.
2. Built-in filters for strong anti-interference capability.
3. Full copper nickel-plated terminal material for high conversion efficiency.
4. Designed with multiple ventilation holes for enhanced heat dissipation.
5. High-strength aluminum alloy shell for durability.
6. Built-in intelligent fan for automatic temperature regulation.
In summary, this power supply offers a more reliable and safe-power experience with its safety, stability, and efficiency.
Technical Specifications:
- Input: AC 110V/220V 50/60Hz
- Output Voltage: DC 12V (positive voltage 3, negative voltage 3)
- Efficiency: > 80%
- Output Current: 50AMax
- Output Power: 600W Max
- Fixed Screw Hole Diameter: 2.5mm (0.1 inches)
- Operating and Storage Temperature: -10-60
- Operating Humidity: -10 to +60, 20%-90% RH
- Storage Humidity: -20 to +85, 10%-95% RH
- Materials: Metal, electronic components, high-strength aluminum alloy shell
Important Notes:
1. Choose a power supply that matches the power requirements of your device. It should operate below 80% of the rated power to prevent damage due to overloading (e.g., if your device's power requirement is 800W, you should purchase a power supply of 1000W or more).
2. To avoid filter interference, maintain a distance of 3.5 meters or more between the power supply and the device.
3. Do not use the power supply for an extended period of time under overload, as this may damage the device.
4. There is high voltage inside; do not remove the cover. Regularly check the power supply's heat dissipation to ensure good ventilation.
5. Do not use the power supply in extreme temperatures; the typical operating environment temperature range is between -10-55.
Important Reminder: Before use, please select 115V/230V through the switch to avoid damage. Set the switch to 115V for use in the United States
Switching Power Supply Features
1. High-quality components ensure reliability.
2. Built-in filters for strong anti-interference capability.
3. Full copper nickel-plated terminal material for high conversion efficiency.
4. Designed with multiple ventilation holes for enhanced heat dissipation.
5. High-strength aluminum alloy shell for durability.
6. Built-in intelligent fan for automatic temperature regulation.
In summary, this power supply offers a more reliable and safe-power experience with its safety, stability, and efficiency.
Technical Specifications:
- Input: AC 110V/220V 50/60Hz
- Output Voltage: DC 12V (positive voltage 3, negative voltage 3)
- Efficiency: > 80%
- Output Current: 50AMax
- Output Power: 600W Max
- Fixed Screw Hole Diameter: 2.5mm (0.1 inches)
- Operating and Storage Temperature: -10-60
- Operating Humidity: -10 to +60, 20%-90% RH
- Storage Humidity: -20 to +85, 10%-95% RH
- Materials: Metal, electronic components, high-strength aluminum alloy shell
Important Notes:
1. Choose a power supply that matches the power requirements of your device. It should operate below 80% of the rated power to prevent damage due to overloading (e.g., if your device's power requirement is 800W, you should purchase a power supply of 1000W or more).
2. To avoid filter interference, maintain a distance of 3.5 meters or more between the power supply and the device.
3. Do not use the power supply for an extended period of time under overload, as this may damage the device.
4. There is high voltage inside; do not remove the cover. Regularly check the power supply's heat dissipation to ensure good ventilation.
5. Do not use the power supply in extreme temperatures; the typical operating environment temperature range is between -10-55.
