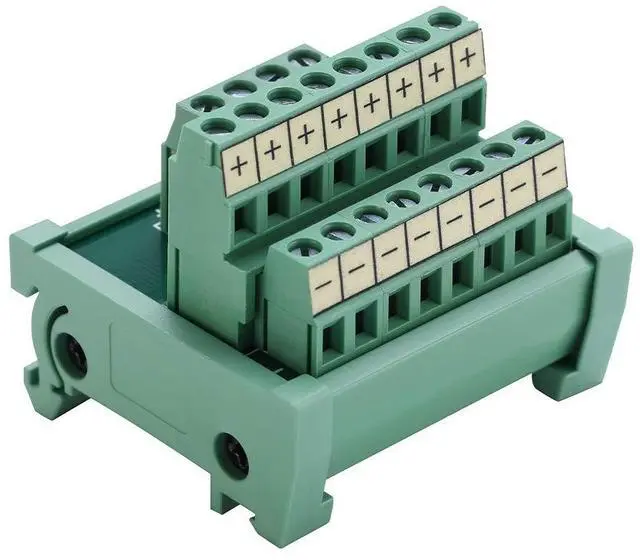

2 in 8 Out Terminal Blocks Module, 25A DIN Rail and Panel Mounting Power Distribution Breakout Board for PLC Servo Power Amplifier

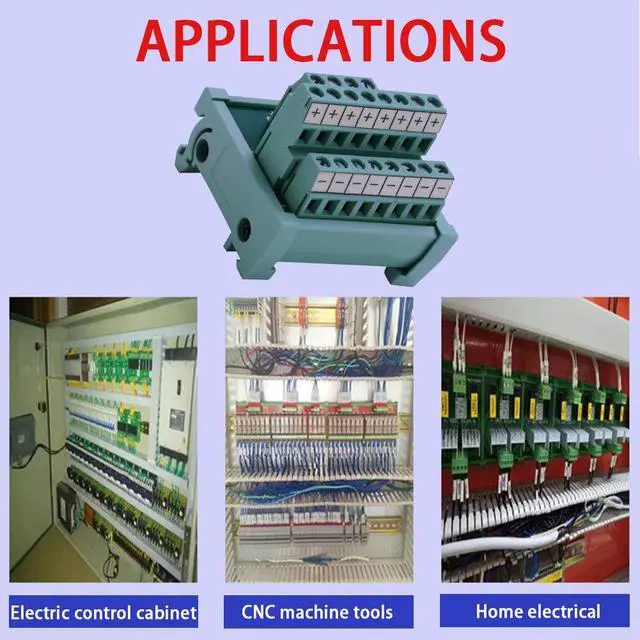

- This is a 2 in 8 out power distribution module, widely used in PLC, servo, DIN track installation, power amplifier, Home electrical, etc.

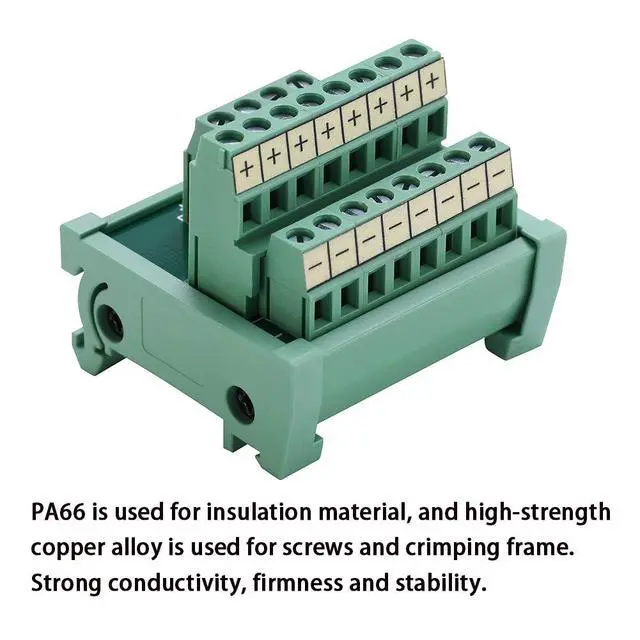

- DURABLE: PA66 is used for insulation material, and high-strength copper alloy is used for screws and crimping frame. Strong conductivity, firmness and stability, and long service life.
- EASY TO USE: These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB.

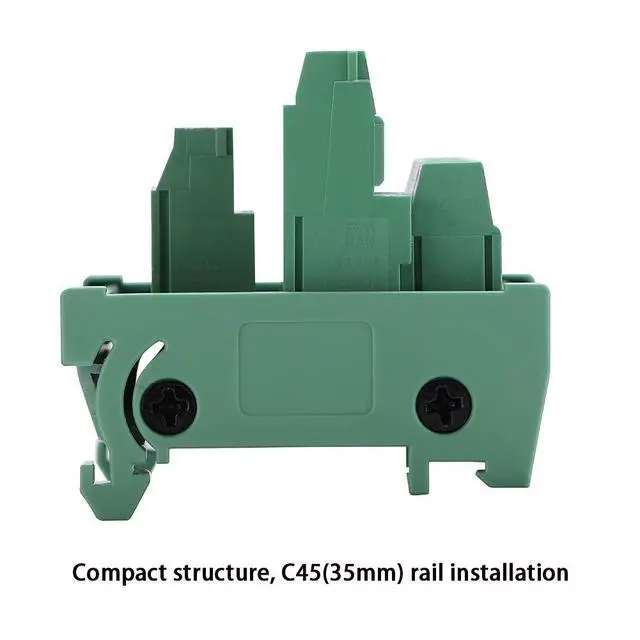

- Compact structure, C45(35mm) rail installation, high efficiency.

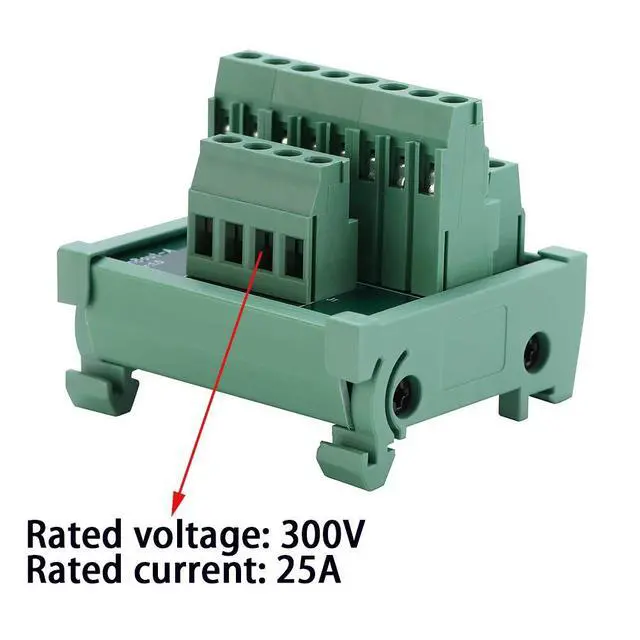

- 300V rated voltage, 25A rated current, can meet most of the needs of life.
+
+
Overview
Specs
Reviews
Specifications:
Rated voltage: 300V
Rated current: 25A
Pin and cage: Brass
Terminal pitch: 5mm
PCB Material: FR4
Input Cable Specification: 26-14 AWG / 0.5mm²~2.5mm²
Output Cable Specification: 26-14 AWG / 0.5mm²~2.5mm²
Contact resistance: 20 m
Rail Width: C45(35mm)

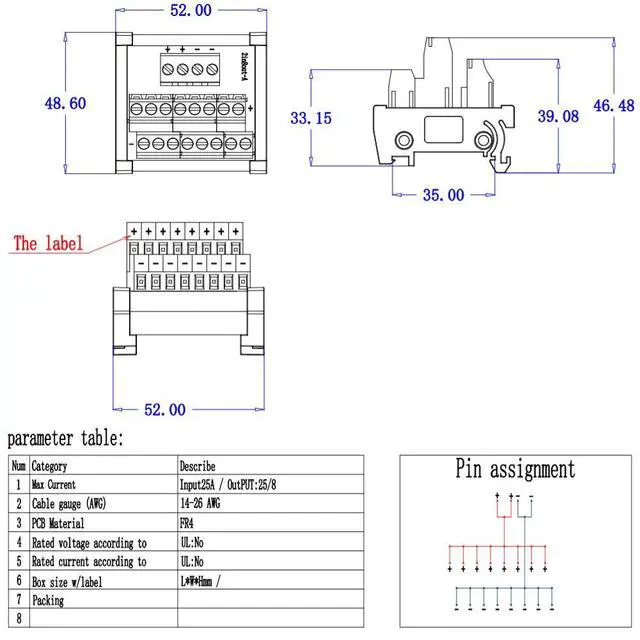

Size: 52mm x 48.6mm x 46.48mm / 2.05" x 1.91" x 1.83"(L x W x H)
Package inlcuded:
1x 2 in 8 Out DIN Rail and Panel Mounting Power Distribution Module
Rated voltage: 300V
Rated current: 25A
Pin and cage: Brass
Terminal pitch: 5mm
PCB Material: FR4
Input Cable Specification: 26-14 AWG / 0.5mm²~2.5mm²
Output Cable Specification: 26-14 AWG / 0.5mm²~2.5mm²
Contact resistance: 20 m
Rail Width: C45(35mm)
Size: 52mm x 48.6mm x 46.48mm / 2.05" x 1.91" x 1.83"(L x W x H)
Package inlcuded:
1x 2 in 8 Out DIN Rail and Panel Mounting Power Distribution Module
