    Mean Well 120W Single Output Switching Power Supply Meanwell 48v Power Supply Power Outage Supplies 15V 8A (EPS-120-15 15V/8A/120W/Switching Supply)

    • 4"x2" miniature size
    • EMI Class B for both Class(with FG) and Class (without FG) configuration
    • High efficiency up to 91%
    • Protections: Short circuit / Overload / Over voltage / Over temperature
    • Cooling by free air convection for 84W and 120W with 10CFM forced air
    +
    +
    Overview
    Specs
    Reviews

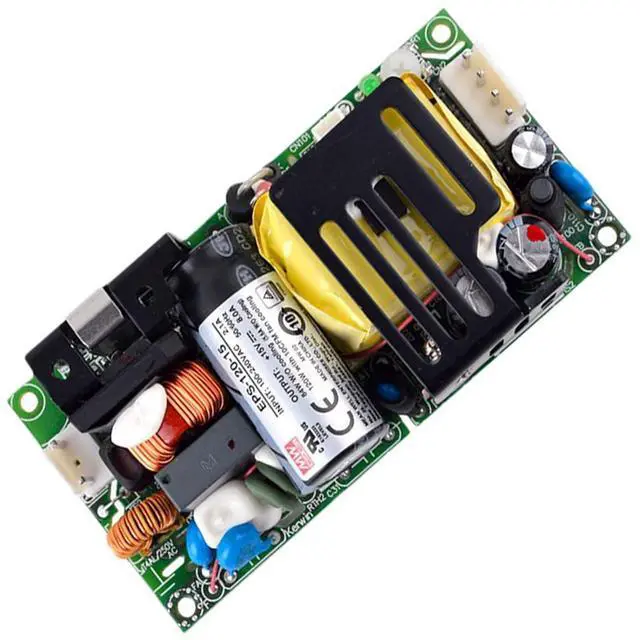

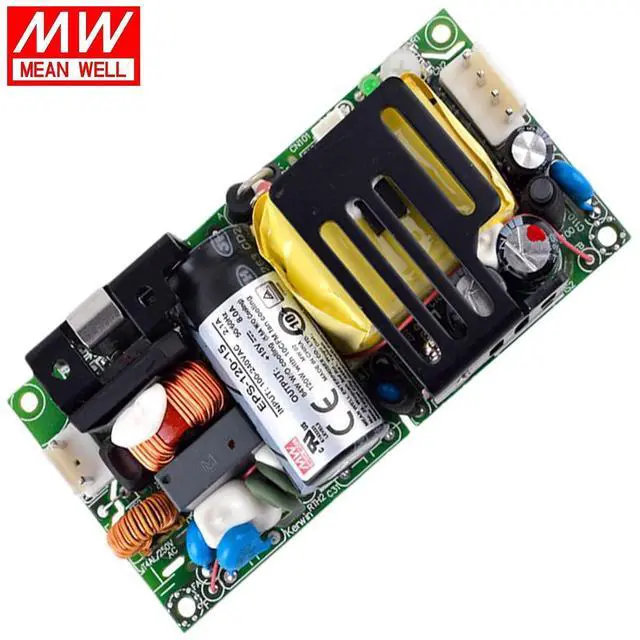

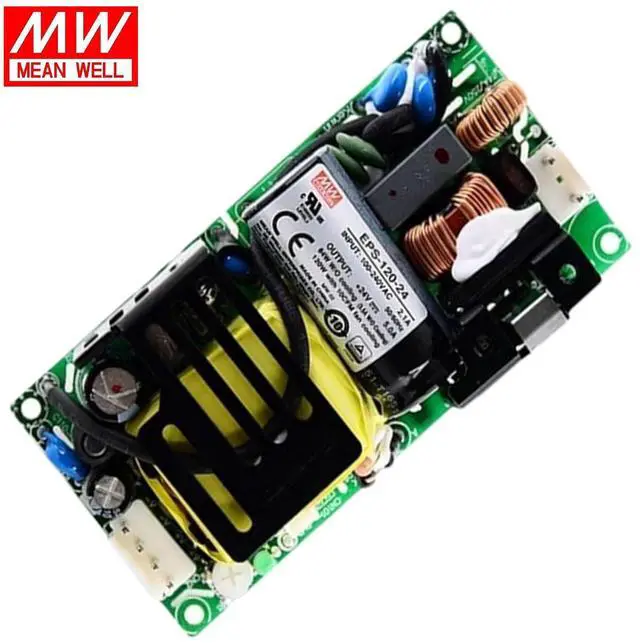

    NEW, MEAN WELL Power Supply. EPS-120 is a 120W highly reliable green PCB type power supply with a high power density on the 4 by 2 footprint. It accepts 80264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.3W. EPS-120 is able to be used for both Class(with FG) and Class(no FG) system design. EPS-120 has the complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. EPS-120 series serves as a high price-to-performance power supply solution for various industrial applications. Founded in 1982, MEAN WELL is one of the world's few manufacturers dedicated to standard power supply products. It is ranked the 3rd in global power supply (DC output) makers according to a report by Micro Technology released in March, 2023. 99% of MEAN WELL sales are of standard power supply products sold under the MEAN WELL brand name. The other two companies' products are ODM/OEM.
