Adjustable Power Supply, Portable Power Supply High Resolution Accurate and 100W 30V 5A High Output Efficiency for Industrial Use

Accurate and: Excellent ripple performance, providing high and voltage output, support power supply to sensitive devices, high efficiency output, low heat generation, with an efficiency of up to 97% when outputting at 100W full load.

Multiple Functions: Supporting real time display of output voltage, current, and power, supporting various working status displays, supporting various parameter settings, supporting upper computer control, flexible and convenient.

Output Parameters: Output voltage is 030.00V, resolution is 0.01V continuously adjustable, accuracy is 0.1% ± 5mV, output current is 05.000A, resolution is 0.001A continuously adjustable, accuracy is 0.1% ± 3mA.

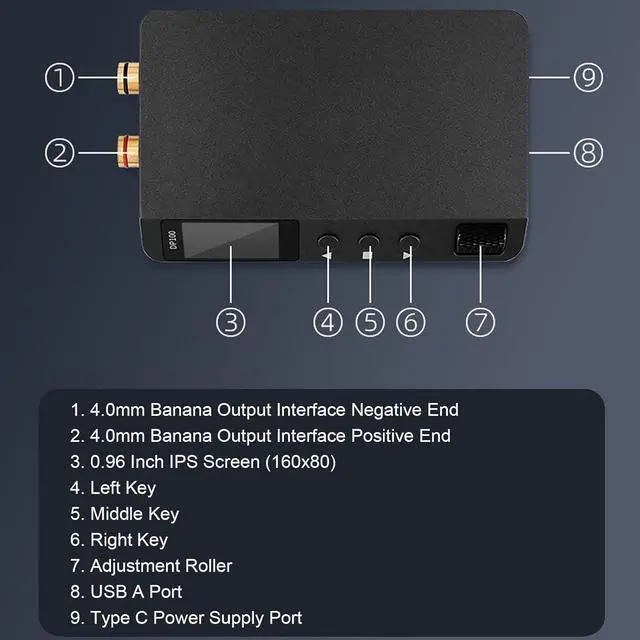

1. Humanized Design: The power supply adopts a 0.96 inch 160 x 80 HD IPS screen, which clearly displays content. Design the display and control panel from a humanized perspective, with a 50 degree viewing angle to ensure convenient observation.

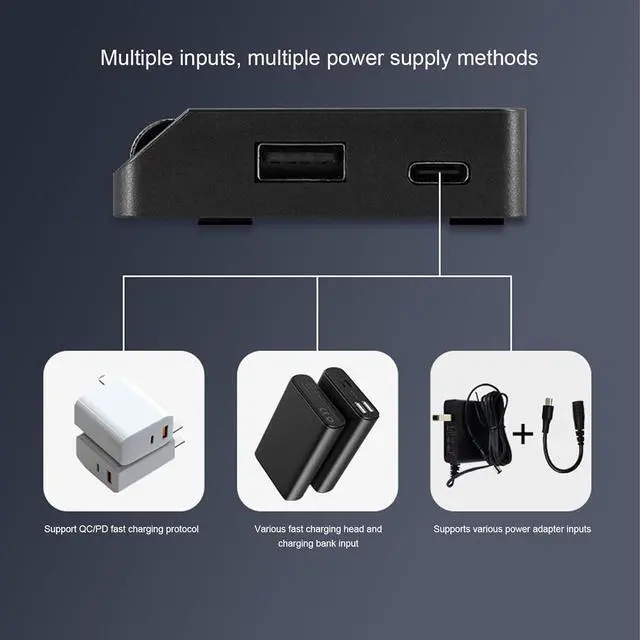

2. Diversified Input: This desktop power supply supports the QC and PD fast charging protocol, and various fast charging heads and power bank inputs use TYPE C to DC heads. It also supports various power adapter inputs.

3. Output Parameters: Output voltage is 030.00V, resolution is 0.01V continuously adjustable, accuracy is 0.1% ± 5mV, output current is 05.000A, resolution is 0.001A continuously adjustable, accuracy is 0.1% ± 3mA.

4. Accurate and: Excellent ripple performance, providing high and voltage output, support power supply to sensitive devices, high efficiency output, low heat generation, with an efficiency of up to 97% when outputting at 100W full load.

5. Multiple Functions: Supporting real time display of output voltage, current, and power, supporting various working status displays, supporting various parameter settings, supporting upper computer control, flexible and convenient.



Spec:

Item Type: Adjustable DC Power Supply

Input Parameters:

Input Voltage: DC5.0-32V, 100mA-5A

Support PD and QC fast charging protocol

Output Parameters:

4.0mm Banana Interface: 0-30V, 0-5A, 100W (Maximum)

USB A Interface (USBH Mode) : 5V 1A (input >5.5V 1A)

Set Value Resolution:

Voltage Setting: 10mV

Current Setting: 1mA

Setting Value Accuracy:

Voltage Setting: 0.1%±5mV

Current Setting: 0.1%±3mA

Read Back Value Resolution:

Input Voltage: 0.01V

Output Voltage: 0.01V

Output Current: 0.001A

Read Back Value Accuracy:

Input Voltage: 0.2%±10mV

Output Voltage: 0.1%±10mV

Output Current: 0.1%±5mA

Load Adjustment Rate:
