$391.99
Ships from China.
Sold by changshacanboyidianzishangwu
Shipped by changshacanboyidianzishangwu
Meet Your Seller

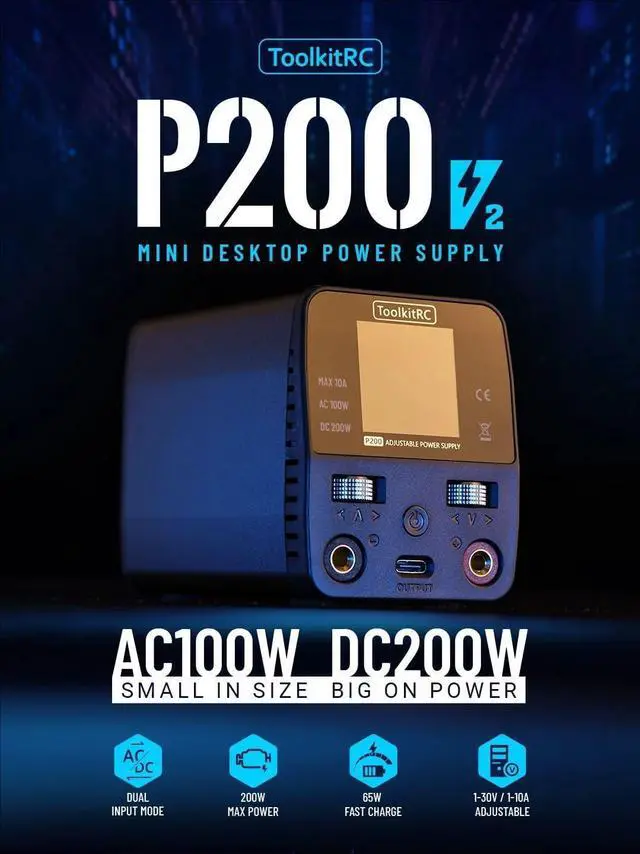

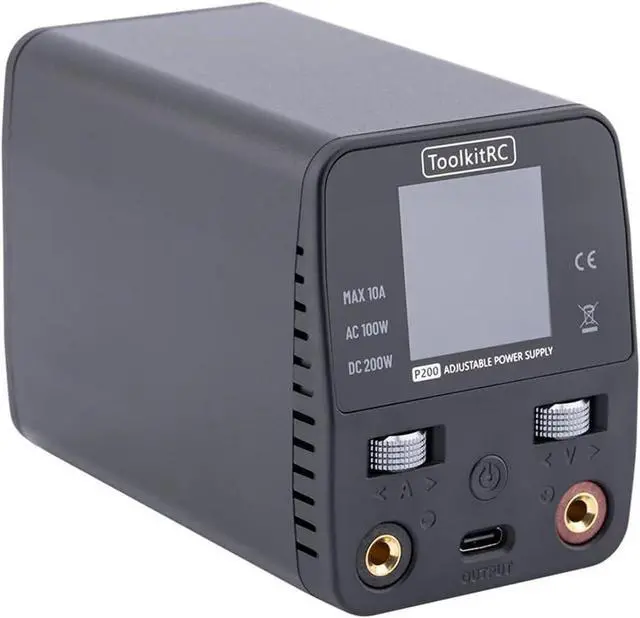

ToolkitRC P200 V2.0 Mini Desktop Power Supply 30V 10A Adjustable AC100W DC200W Charger 65W USB Fast Output IPS Color Display Desktop Power Supply

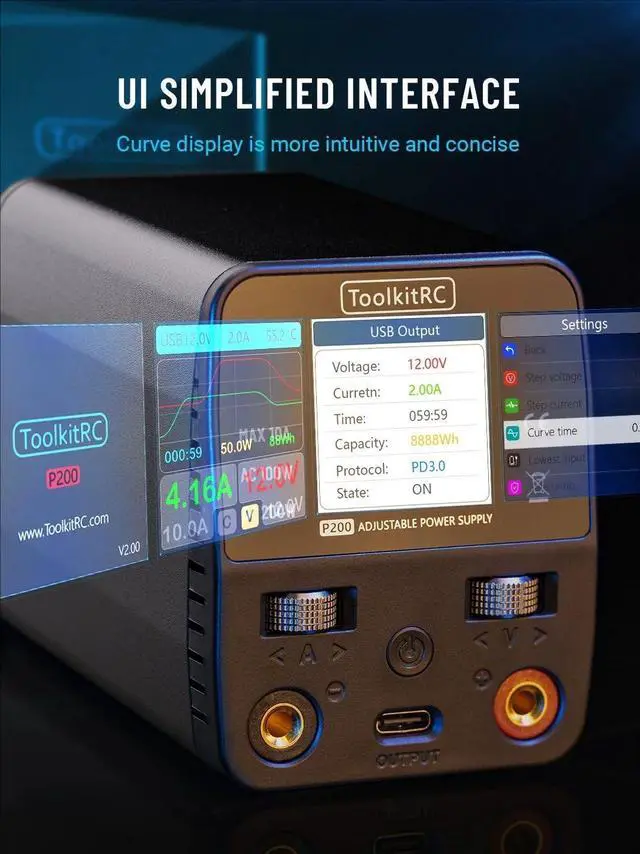

- P200 V2.0 is a mini desktop adjustable power supply, with AC and DC dual mode input, IPS wide-angle display record and curve display voltage and current, etc.
- Input voltage: AC 100-240V. Max 100W; DC 7-28V. Max 10A 200W

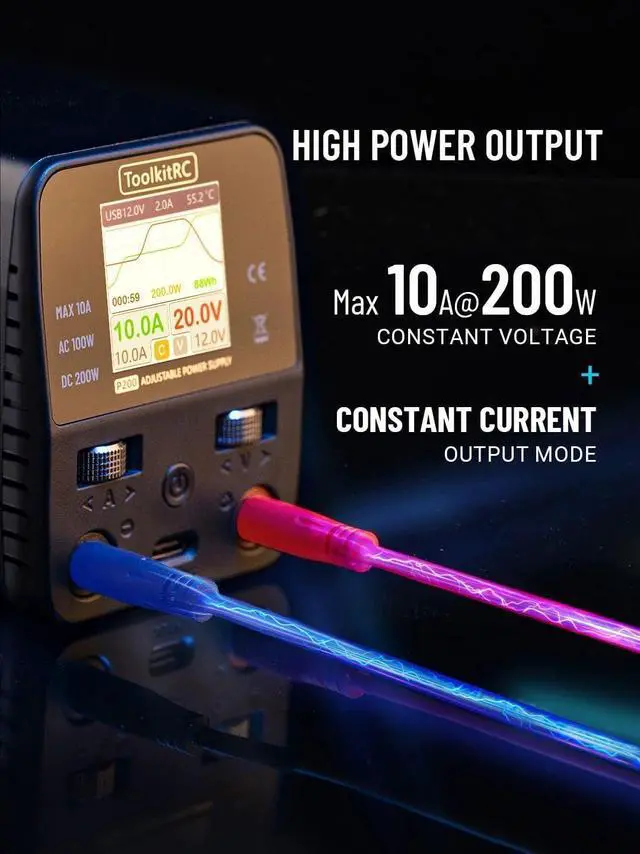

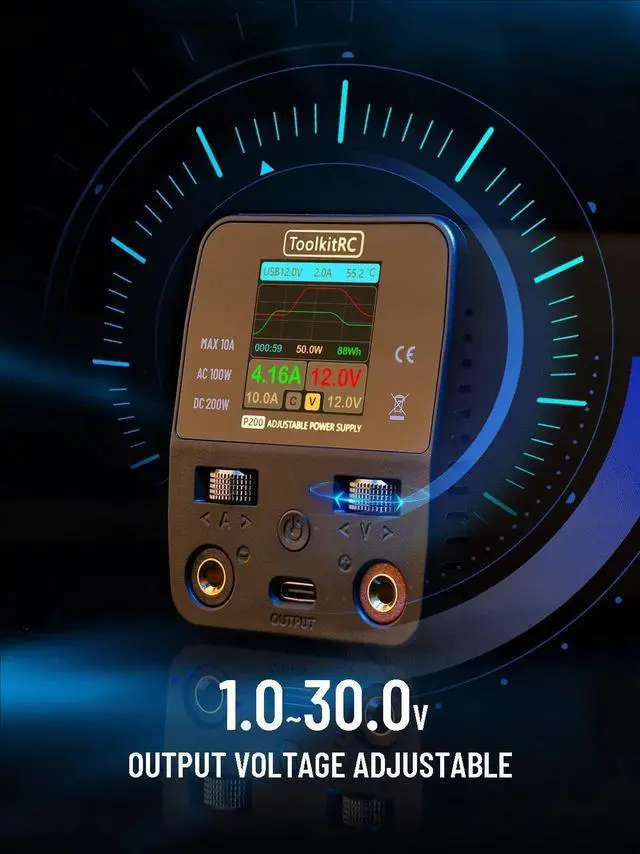

- Main output: 1.0-10.0A. Max AC 100W/DC 200W; 1.0-30.0V. Max AC 100W/DC 200W

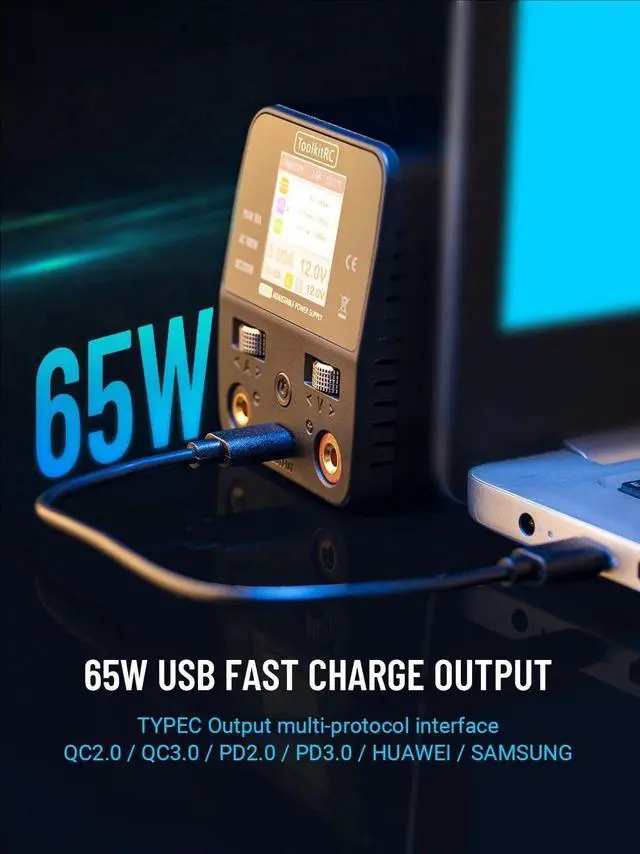

- Type-C output: 5.0-20.0V. Max 65W
- Type-C protocol: PD 3.0/PD 2.0/PPS/QC4/QC3.0/QC2.0; AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
- Protection time: <1ms(Short circuit, OC, OV)
+
+
Overview
Specs
Reviews
SPEC
General
Product size: 110x63x78mm
Product weight: 425g
Pack size: 160x150x73mm
Pack weight: 735g

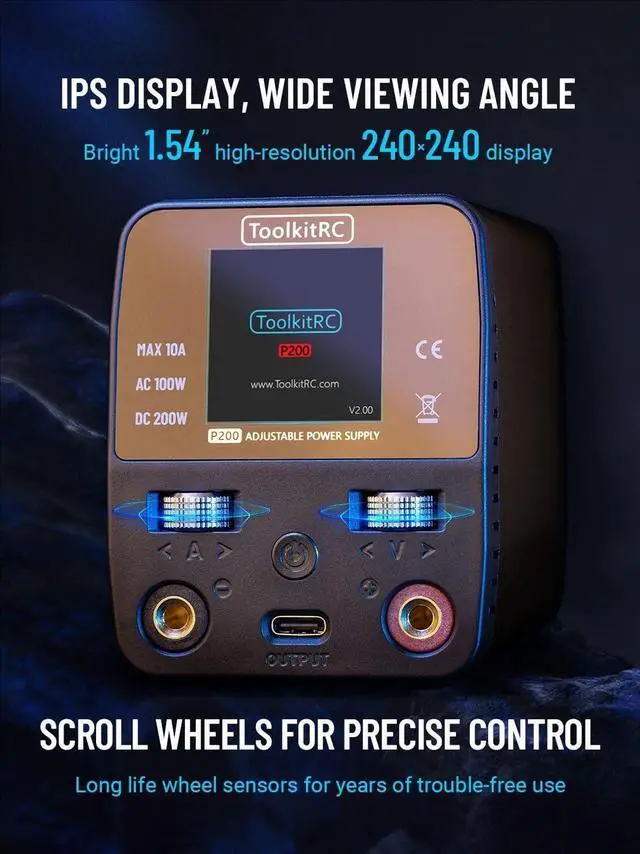

LCD: IPS 1.54'' 240x240 pixel
Main port: 4.0mm banana female port
USB port: Type-C fast charge, upgraded
Charger
Input voltage: AC 100-240V. Max 100W
DC 7-28V. Max 10A 200W
Main output: 1.0-10.0A. Max AC 100W/DC 200W
1.0-30.0V. Max AC 100W/DC 200W
Type-C output: 5.0-20.0V. Max 65W
Type-C protocol: PD 3.0/PD 2.0/PPS/QC4/QC3.0/QC2.0
AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Protection time: <1ms(Short circuit, OC, OV)
Control cycle: 8ms
General
Product size: 110x63x78mm
Product weight: 425g
Pack size: 160x150x73mm
Pack weight: 735g
LCD: IPS 1.54'' 240x240 pixel
Main port: 4.0mm banana female port
USB port: Type-C fast charge, upgraded
Charger
Input voltage: AC 100-240V. Max 100W
DC 7-28V. Max 10A 200W
Main output: 1.0-10.0A. Max AC 100W/DC 200W
1.0-30.0V. Max AC 100W/DC 200W
Type-C output: 5.0-20.0V. Max 65W
Type-C protocol: PD 3.0/PD 2.0/PPS/QC4/QC3.0/QC2.0
AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Protection time: <1ms(Short circuit, OC, OV)
Control cycle: 8ms
