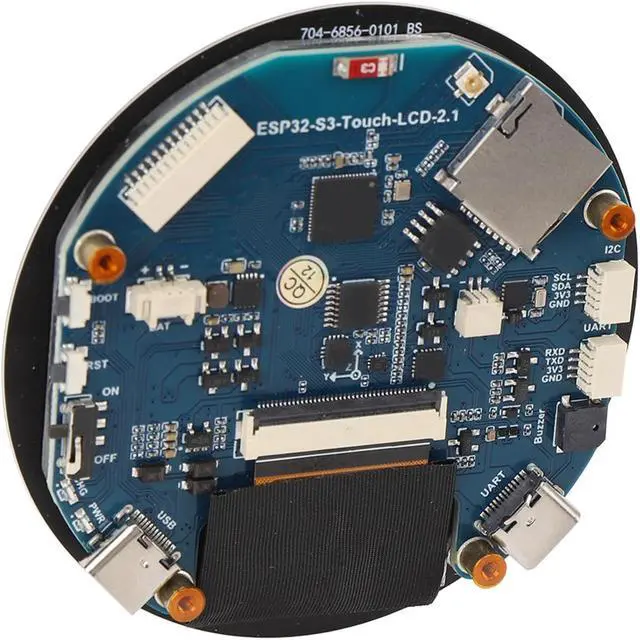

TYTOGE 2.1inch Capacitive Touch LCD Development Board 262K Display Color 480×480 Supports and ESP32-S3 Chip

HIGH PERFORMANCE PROCESSOR: The development board is Equipped with a high performance for Xtensa 32 bit LX7 dual core processor, with a high frequency up to 240MHz.
CONNECTIVITY: Supports 2.4 GHz (802.11 b/g/n) and 5 (LE) for seamless connections, ensuring strong and stable compatibility.

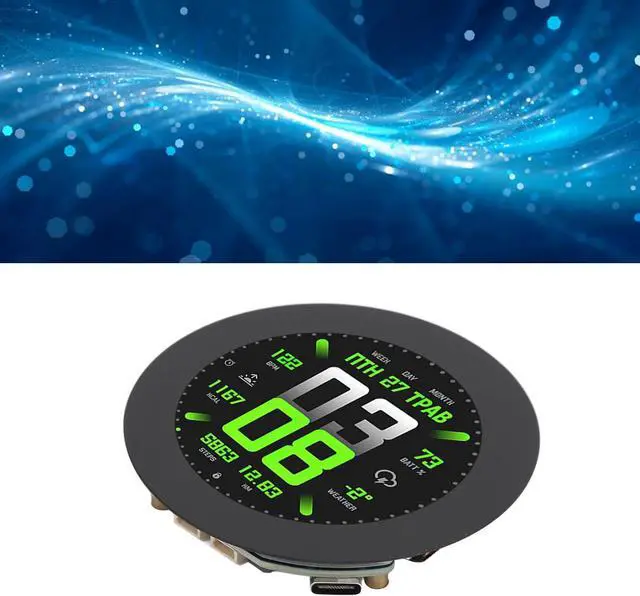

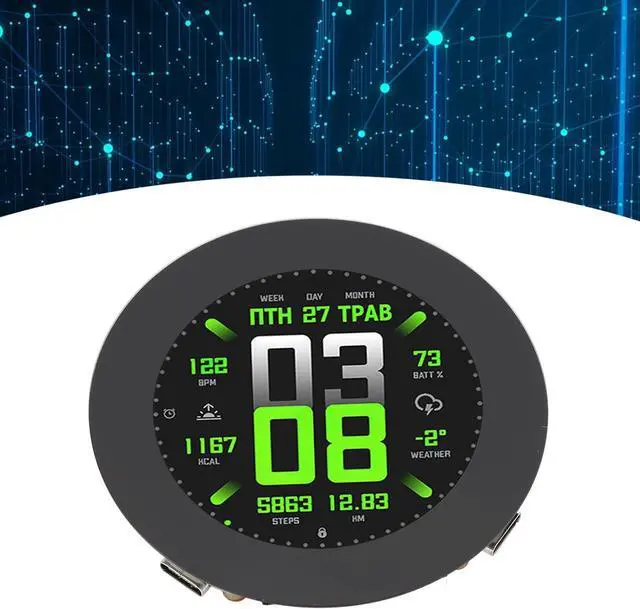

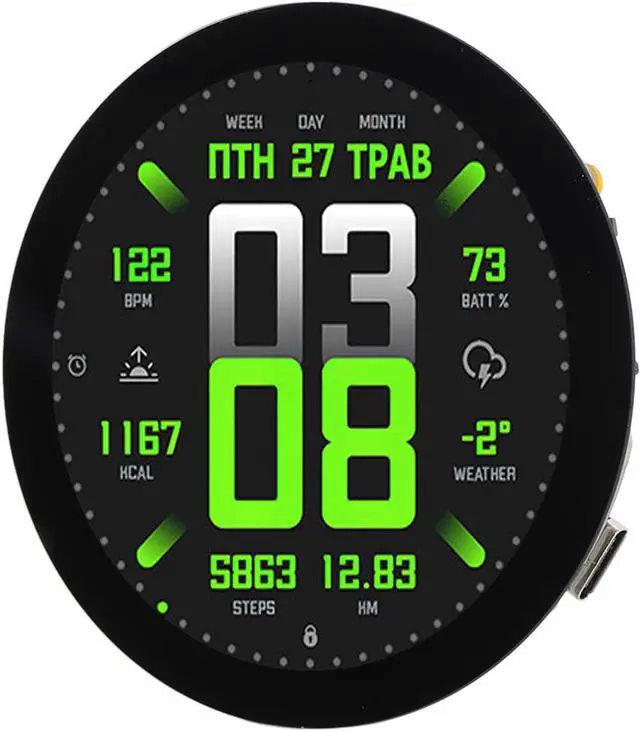

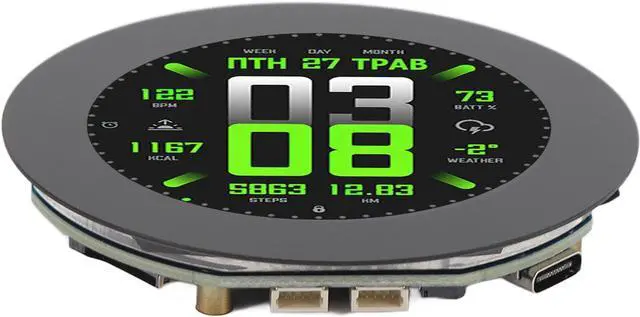

VIVID TOUCHSCREEN DISPLAY: Features a 2.1inch touchscreen with 480 x 480 resolution and 262K colors for an immersive viewing experience with excellent visual effects.
INTEGRATED SENSORS: Includes QM18658 six axis sensor, RTC clock sensor, small storage card slot, and battery charging module for enhanced functionality.
FLEXIBLE POWER MANAGEMENT: Supports flexible clock options, multiple power modes, and accurate control for low power consumption in various scenarios.

Overview

Specs

Reviews

Spec:
Item Type: Capacitive Touch LCD Development Board
Material: LCD

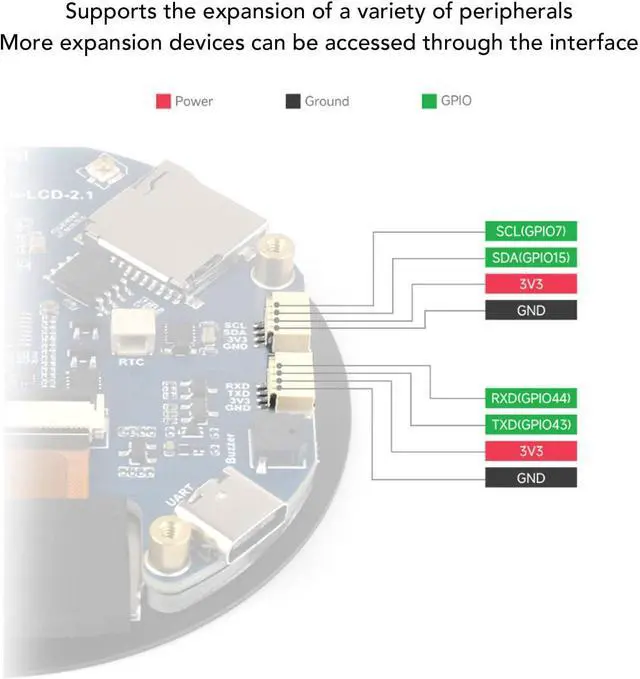

Interface: USB Type C UART Type C
Main Control Chip: ESP32-S3
Screen Control Chip: Display: ST7701, Touch: CST820
Posture Sensor: QMI8658
RTC Clock: PCF85063
Small Storage Card: Up to 16G (not included)

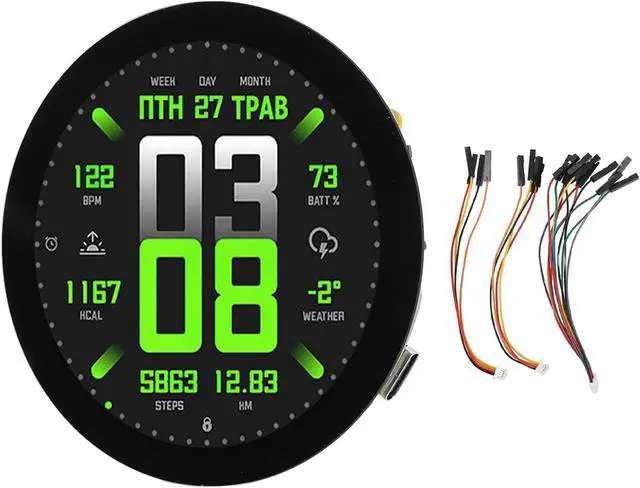

Package List:
1 x Touch Screen Development Board
1 x 12 pin Connection Cable
2 x 4 pin Connection Cable
