RQ-85D 85W Four-Way Output Switching Power Supply

Power Supply
Whether: No
Item number: JWRQ-85D
Model: RQ-85D
Type: AC/DC power supply
Modulation method: pulse frequency modulation (PFM)
Transistor connection method: push-pull
Input voltage: 88-264
Output power: 85W
Output voltage: +5/ +12/ +24/-12
Work efficiency: 78%
Output ripple noise: 80mV-150mV
Output voltage accuracy: ±10
Voltage regulation: ±10
Load regulation: ±5
Output current: 10A
Working frequency: 47~63
Working temperature: -25+70

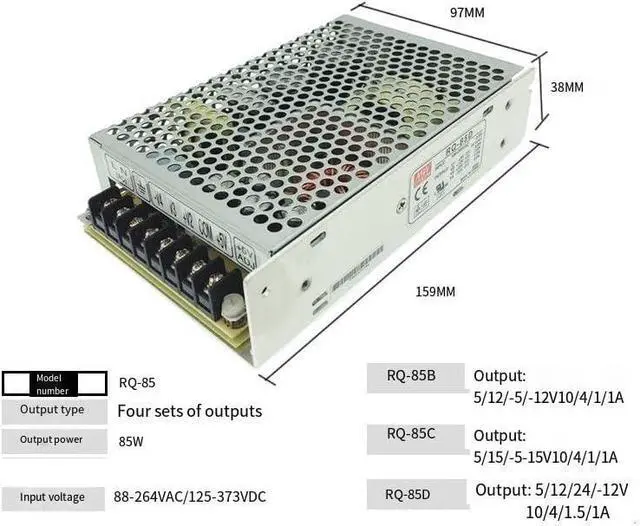

Overall dimensions: 159×97×38mm
Material number: RQ-85D
Order number: RQ-85D
Minimum number of packages: 1
Specifications: RQ-85D
Series: RQ-85
Number of power supply phases: single phase
Input voltage range: 88264VAC/120373VDC
Number of circuits: 88264VAC/120373VDC
Scope of application: Suitable for use in harsher working environments
Working environment temperature: -25+70
Installation method: screw installation
Weight: 0.6KG
Remarks: All capacitors are 105 long life capacitors
Rated power: 85W
Reset method: power off reset
Adjust voltage: adjust potentiometer
Cooling fan type: natural air cooling
Power supply type: switching power supply

RQ-85D Product Description
Highly reliable switching power supply model, which can withstand 5G vibration and high operating temperature of 70°C. The entire machine uses 105°C long-life electrolytic capacitors and can withstand 300VAC surge input for 5 seconds, making it suitable for use in harsher working environments. .
RQ-85D Main features
Full range AC input voltage
All capacitors are 105 long life capacitors
With short circuit protection/overload protection/overvoltage protection
International safety certification: UL/TUV/CB/CE
Meet EMS EN50082-2/EN61000-6-2 heavy industry standards
Withstand 300VAC high voltage input for 5 seconds without damage
Working environment temperature up to 70
